Description Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
```html
Procity Wartehalle Vierkantrohr, 2 Seitenverkleidungen, L 2500 mm.

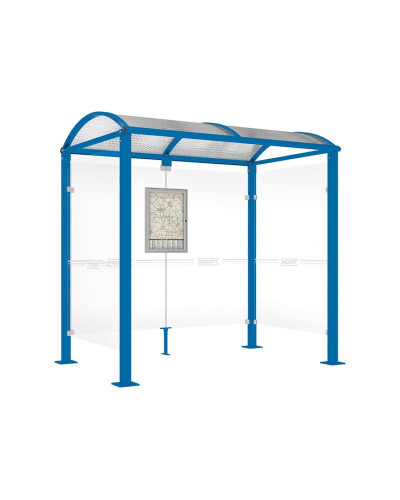

A high-quality bus shelter with a simple design that harmoniously fits into rural and urban environments. Available in two lengths: 2500 mm or 5000 mm with a total depth of 1600 mm. The shelter features square steel posts (80 x 80 mm) on base plates, a height under the roof of 2500 mm, and a roof made of arched polycarbonate panels (6 mm with UV protection).
The roof structure consists of aluminum tube struts (40 x 60 mm) and aluminum profile gutters. The shelter also includes curved aluminum profile brackets and side and rear cladding made of 8 mm Securit glass. The cladding is secured by a brushed aluminum casting clamping system. It also includes a timetable display case (750 x 550 mm) and options for information and advertising through a lightbox or display case. The shelter is available in various RAL colors for customization and is mounted on base plates.
Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm
Finish: Painted according to our color palette
Installation: For embedding into the ground
- Technical Specifications:
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Blue RAL 5010 (Enzianblau)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Cladding: Left and right side cladding
- Illuminated Display Case: No
- Bulletin Board: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 270
- Accessories: INC-209147, INC-509041
- Installation:
- Prepare the base for embedding.
- Assemble the frame using galvanized square tubes.
- Install the side and rear panels made of Securit glass.
- Mount the arched polycarbonate roof panels.
Payment Methods:
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We provide delivery to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
About the Company: INCAPCORP is an official distributor of PROCITY products.
```
Main attributes Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Gentian Blue
Side Cladding
Left and Right Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
