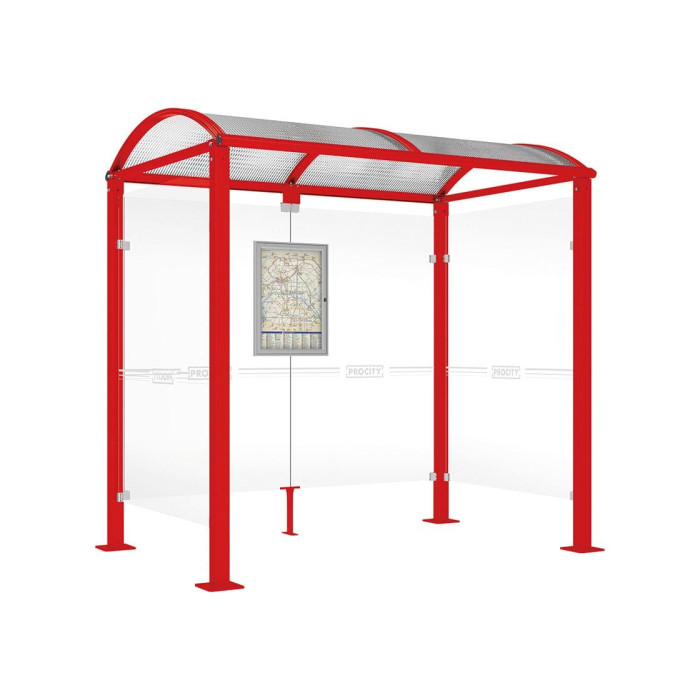

Description Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Procity Wartehalle Vierkantrohr, 2 Seitenverkleidungen, L 2500 mm.
The Procity Wartehalle Vierkantrohr is a high-quality bus waiting shelter with a simple design that harmoniously fits into both rural and urban environments. It comes in two lengths: 2500 or 5000 mm, with a total depth of 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubing on floor plates, providing stability and durability. The height under the roof is 2500 mm, and the roof is constructed with arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. The shelter's sides and rear are covered with Securit glass, 8 mm thick, which is securely fastened using a brushed aluminum clamping system. Additionally, it includes a timetable display case and options for information and advertising display cases.
The dimensions of the shelter are as follows: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm. The shelter is painted according to our color palette and is designed for installation by embedding in concrete.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Traffic Red RAL 3020
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sides Cladding: Left and Right
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On floor plates
- Weight(kg): 270
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for embedding.
- Assemble the frame using the galvanized square tubes.
- Install the side and rear panels made of Securit glass.
- Mount the roof using the arched polycarbonate panels.
INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We offer delivery to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Traffic Red
Side Cladding
Left and Right Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
