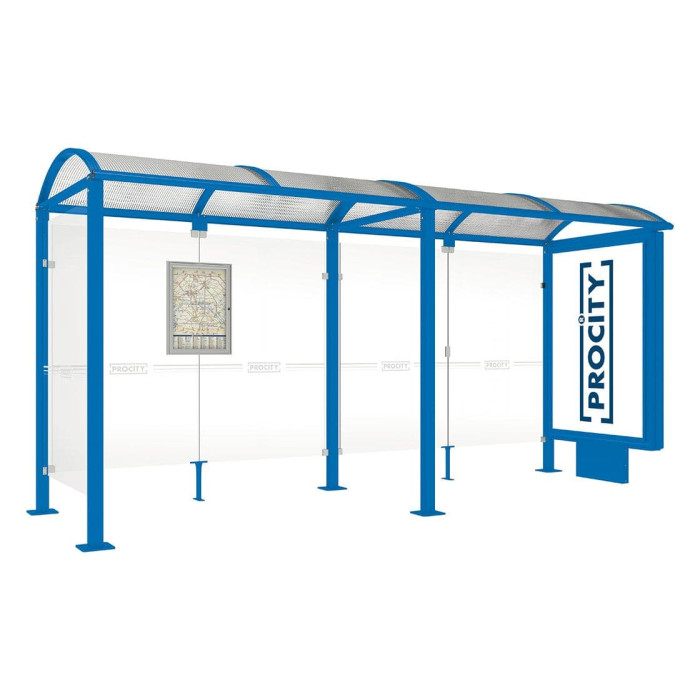

Description Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
PROCITY Wartehalle Vierkantrohr, 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 5000 mm
A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. It comes in two lengths: 2500 or 5000 mm with a total depth of 1600 mm. The shelter features square steel posts (80 x 80 mm) on base plates, a height under the roof of 2500 mm, and a roof made of arched polycarbonate panels (6 mm with UV protection). The roof structure includes aluminum tube struts (40 x 60 mm), aluminum profile gutters, and curved aluminum profile brackets. The sides and rear are covered with Securit glass (8 mm), secured by a brushed aluminum clamping system. It also includes a display case (750 x 550 mm) for schedules and an option for advertising using either a lightbox (1710 x 1160 mm) or display case "2000" (1750 x 1200 mm). The shelter is available in various RAL colors for coating and is mounted on base plates.
Dimensions: Width: 5000 mm, Height: 2560 mm, Depth: 1600 mm
Benefits: Painted according to our color palette, suitable for embedding installation.
Technical Specifications:
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Blue RAL 5010 (Enzianblau)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Sidewall: Left side
- Lightbox: Yes
- Display Case: Yes
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 525
- Accessories: INC-209147, INC-509041
Installation:
- Prepare the base for embedding installation.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels.
- Mount the roof structure in place.
We are an official distributor of PROCITY products.
Payment Methods:
We accept Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
Shelters
Model Name
Malta-5+LED
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Gentian Blue
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
