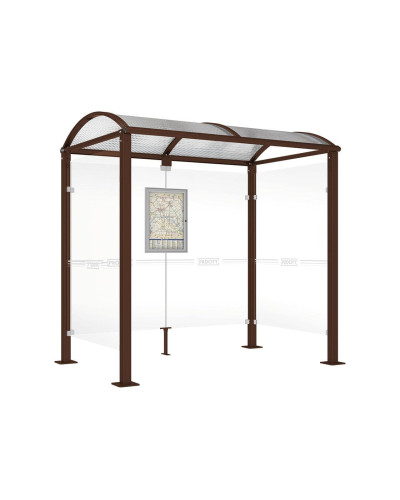

Description Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Procity Wartehalle Vierkantrohr, 2 Seitenverkleidungen, L 2500 mm.
This high-quality bus waiting shelter with a simple design harmoniously fits into both rural and urban environments. It comes in two lengths: 2500 or 5000 mm. The overall depth is 1600 mm. The shelter is supported by square steel posts, 80 x 80 mm, anchored to base plates. The height under the roof is 2500 mm. The roof consists of arched polycarbonate panels, 6 mm thick with UV protection. The roof structure includes aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. It features curved aluminum profile brackets. The side and rear panels are made of Securit glass, 8 mm thick, securely fastened with a brushed aluminum casting clamping system. It also includes a timetable display case (Art. No. 505045) and options for lightboxes or display cases for information and advertising. The shelter is available in various RAL colors for galvanizing and coating and can be mounted on base plates.
Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm.
Finish: Painted according to our color palette.
Installation: For embedding into the ground.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Brown RAL 8017 (more precise color name: Chocolate Brown)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Siding: Left and right siding
- Illuminated Display Case: No
- Bulletin Board: No
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight (kg): 270
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for embedding.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels securely.
- Mount the roof as directed in the assembly manual.
We are an official distributor of PROCITY products.
Payment Methods
We accept payment via Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Chocolate Brown
Side Cladding
Left and Right Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
