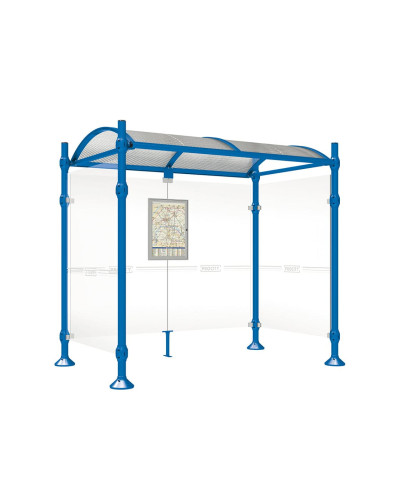

Description Procity Waiting Hall Province, 2 Side Panels, L 2500 mm.
PROcity Wartehalle Province, 2 Seitenverkleidungen, L 2500 mm.
The PROcity Wartehalle Province with 2 Seitenverkleidungen and a length of 2500 mm is an ideal solution for public waiting areas. With 4 head models to choose from and various mounting brackets and base feet, the Province bus stop stands out with a clear visual identity. It forms a harmonious unit with the urban furniture of the same collection.
Featuring two lengths, 2500 or 5000 mm, and a total depth of 1600 mm, this waiting shelter is designed with sturdy components. The roof is made of curved polycarbonate panels, 6 mm thick with UV protection. The structure consists of two aluminum tube struts, 40 x 60 mm, and two aluminum profile gutters. The sides and rear panels are made of Securit glass, 8 mm thick, attached using an aluminum die-cast clamping system. The bus stop also includes a timetable display case and options for information and advertising using a lightbox or display case "2000". It comes in a choice of RAL colors for coating and is mounted on base plates.
Benefits:
- Dimensions: Width 2500 x Height 2545 x Depth 1667 mm
- 4 head models to choose from: City, Agora, Kugel, or brushed stainless steel
- Coated according to our color palette
- Easy assembly on base plates
Technical Specifications:
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum tube D: 76 mm, 3 mm (on plates)
- Color: Blue RAL 5010 (Enzianblau)
- Roof Material: Curved PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sidewall: 2 Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Mounting Condition: Disassembled
- Fastening: On base plates
- Weight (kg): 269
- Accessories: INC-509041
Installation:
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels using the clamping system.
- Mount the roof securely on the structure.
About the Company:
We are an official distributor of PROCITY products.
Payment Methods:
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Province, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Province aus Edelstahl-2.5
Width (W)
2500 mm
Height (H)
2545 mm
Depth (D)
1667 mm
Frame Material
Alu Tube D: 76 mm, 3 mm (on Plates)
Roof Material
Curved PC 6 mm (UV)
Colour
Gentian Blue
Side Cladding
2 Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
