Description Procity Waiting Hall Square Tube- 1 Lightbox on Pedestal & 1 Side Panel, L 2500 mm.
```html
PROCITY WarteHalle Vierkantrohr- 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 2500 mm

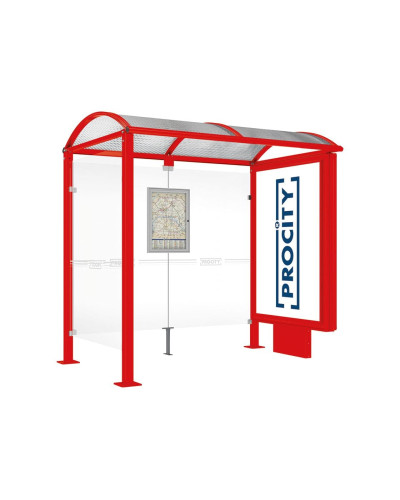

PROCITY WarteHalle Vierkantrohr is a high-quality bus waiting shelter with a simple design that harmoniously fits into both rural and urban environments. It provides a comfortable and secure waiting area for passengers.
Product Description
The PROCITY WarteHalle Vierkantrohr is available in two lengths: 2500 mm or 5000 mm. It has an overall depth of 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubes on base plates, providing sturdiness and stability. The height under the roof is 2500 mm. The roof is constructed with curved 6mm polycarbonate panels with UV protection, supported by aluminum tube struts and gutters. The sides and rear panels are made of 8mm Securit® glass, securely fastened with a brushed aluminum clamping system. It includes a display case for timetables (750 x 550 mm) and options for advertising using either a lightbox (1710 x 1160 mm) or display case "2000" (1750 x 1200 mm). The shelter is available in various colors, with the option for fire galvanizing and coating in RAL colors of your choice. It is mounted on base plates.
Product Benefits
The PROCITY WarteHalle Vierkantrohr measures 2500 mm in width, 2560 mm in height, and 1600 mm in depth. It is painted according to our color palette and is designed for installation by embedding it into the ground.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Red RAL 3020 (Verkehrsrot)
- Roof Material: Curved PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sidewall: Left
- Lightbox: Yes
- Display Case: Yes
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 385
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for embedding.
- Assemble the frame according to the provided instructions.
- Install the wall panels and the roof structure securely.
About the Company
INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept payments through Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
```
Main attributes Procity Waiting Hall Square Tube- 1 Lightbox on Pedestal & 1 Side Panel, L 2500 mm.
Shelters
Model Name
Malta-2.5+LED
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Traffic Red
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
