Description Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
```html
Procity Wartehalle Vierkantrohr, 2 Seitenverkleidungen, L 2500 mm.

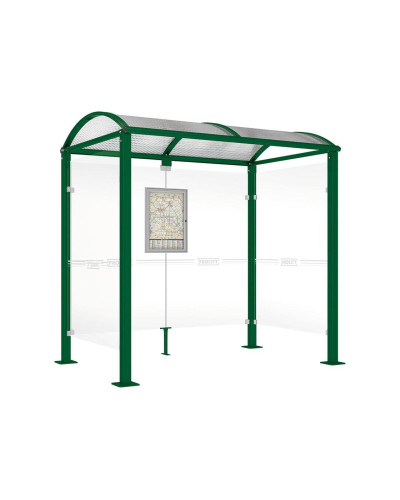

A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. Available in two lengths: 2500 or 5000 mm. The overall depth is 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubes on floor plates. The height under the roof is 2500 mm. The roof is made of arched 6mm polycarbonate panels with UV protection. It has an aluminum tube support structure (40 x 60 mm) and gutters made of aluminum profile. The sides and back are covered with 8mm Securit glass. The glass panels are fixed using a clamping system made of brushed aluminum casting. It also includes a timetable display case (750 x 550 mm) and options for a lightbox or display case "2000" for information and advertising purposes. It comes in various RAL colors for customization and is mounted on floor plates.
Dimensions: Width: 2500 mm | Height: 2560 mm | Depth: 1600 mm
Finish: Painted according to our color palette
Installation: For embedding in concrete
- Technical Specifications:
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Green RAL 6005 (Moosgrün)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sides Cladding: Left and Right
- Lightbox: No
- Display Case: No
- Installation Condition: Disassembled
- Mounting: On floor plates
- Weight(kg): 270
Installation:
- Prepare the base for embedding.
- Assemble the frame using galvanized square tubes.
- Install the side and back panels made of Securit glass.
- Mount the arched polycarbonate roof panels.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
About the Company: INCAPCORP is an official distributor of PROCITY products.
```
Main attributes Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Moss Green
Side Cladding
Left and Right Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
