Description Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm
Procity Wartehalle Vierkantrohr, 1 Seitenverkleidung, L 2500 mm

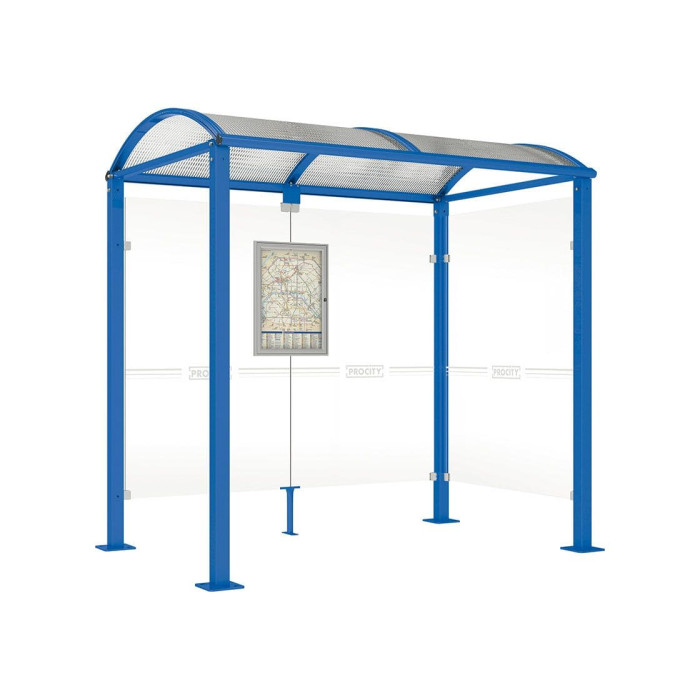

A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. Available in two lengths: 2500 or 5000 mm, with a total depth of 1600 mm. The shelter features square posts made of steel tube 80 x 80 mm on base plates, with a height under the roof of 2500 mm. The roof is constructed of arched polycarbonate panels, 6 mm with UV protection, supported by aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. The sides and rear panels are made of Securit glass, 8 mm, attached using a brushed aluminum casting clamping system. It also includes a timetable display case of size 750 x 550 mm (4 A4) made of anodized aluminum (Art. No. 505045). For information and advertising, it offers a lightbox (display area size: 1710 x 1160 mm) or "2000" display case (display area size: 1750 x 1200 mm). The shelter is available in various RAL colors for customization and is mounted on base plates.
Benefits: The dimensions are Width: 2500 x Height: 2560 x Depth: 1600 mm, Painted according to our color palette, and can be installed by embedding in concrete.
Technical Specifications:
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Blue RAL 5010 (Enzianblau)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sides Cladding: Right side cladding
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Mounting Condition: Disassembled
- Fixation: On base plates
- Weight(kg): 210
- Accessories: INC-209147, INC-509041
Installation:
- Prepare the base for installation.
- Assemble the frame.
- Install the wall/panel and secure them.
- Mount the roof structure securely.
About the Company: INCAPCORP is an official distributor of PROCITY products.
Payment Methods:
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Gentian Blue
Side Cladding
Right Side Cladding
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
