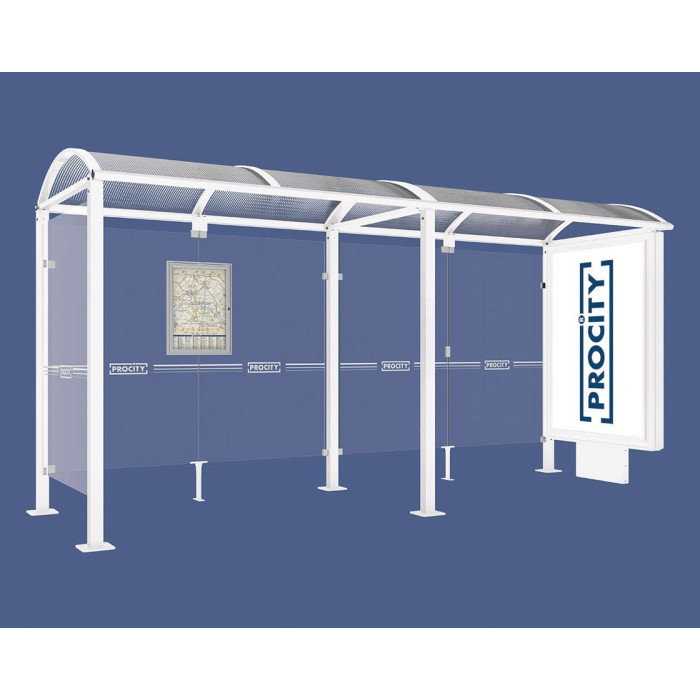

Description Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
PROCITY Wartehalle Vierkantrohr, 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 5000 mm
A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. Available in two lengths: 2500 or 5000 mm, with a total depth of 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubes on base plates, providing a height of 2500 mm under the roof. The roof is constructed of arched polycarbonate panels, 6 mm with UV protection, supported by aluminum tube struts and profiles. The sides and rear are covered with Securit glass, 8 mm thick, attached using a brushed aluminum casting clamping system. It includes a display case for schedules and an advertising lightbox or "2000" display case. The shelter is available in various RAL colors for galvanizing and coating, and it is mounted on base plates.
Dimensions: Width: 5000 mm, Height: 2560 mm, Depth: 1600 mm
Finish: Painted according to our color palette.
Installation: For embedding.
- Technical Specifications:
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: White RAL 9010 (Reinweiß)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Sidewall: Left
- Lightbox: Yes
- Display Case: Yes
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 525
- Dig holes for the base plates according to the specifications.
- Assemble the frame by connecting the square tubes.
- Install the side and rear panels using the provided clamping system.
- Mount the roof panels onto the frame.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
Shelters
Model Name
Malta-5+LED
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Pure White
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
