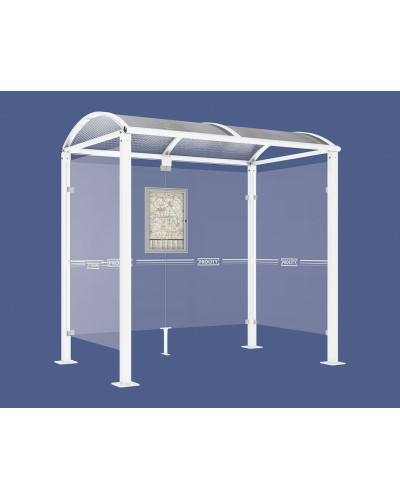

Description Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Procity Wartehalle Vierkantrohr, 2 Seitenverkleidungen, L 2500 mm.
A high-quality bus waiting shelter with a simple design that harmoniously blends into rural and urban environments. Available in two lengths: 2500 or 5000 mm. Overall depth: 1600 mm. Square posts: Steel tube 80 x 80 mm on base plates. Height under the roof: 2500 mm. Roof: Arched polycarbonate panels, 6 mm with UV protection. Roof structure: Aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. Brackets made of curved aluminum profile. Side and rear cladding: Securit glass, 8 mm. Cladding: Fastened by a clamping system made of brushed aluminum casting. Timetable display case: 750 x 550 mm (4 A4), 30 mm deep, made of anodized aluminum (Art. No. 505045). Information and advertising: Lightbox (display area size 1710 x 1160 mm) or "2000" display case (display area size 1750 x 1200 mm). Finish: Hot-dip galvanized and coated in our range of RAL colors. Assembly: On base plates.
Dimensions: Width 2500 x Height 2560 x Depth 1600 mm
Finish: Painted according to our color palette.
Assembly: For embedding.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Hot-dip galvanized square tube 80 x 80
- Color: White RAL 9010 (Reinweiß)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Siding: Left and right side cladding
- Lightbox: No
- Display Case: No
- Installation Depth:
- Maintenance Condition: Disassembled
- Mounting: On base plates
- Weight (kg): 270
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels using the clamping system.
- Mount the roof onto the structure.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We ship to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Area Shelter Square Tube, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Pure White
Side Cladding
Left and Right Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
