Description Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
PROCITY Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.

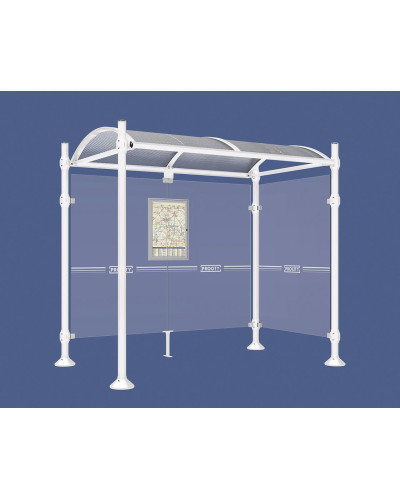

The PROCITY Wartehalle Province with 1 Seitenverkleidung and L 2500 mm is an ideal overhead covering and waiting shelter solution for public spaces. With 4 head models to choose from, as well as various mounting clamps and base plates, the Province bus stop stands out with a clear visual identity. It forms a harmonious unit with the city furniture of the same collection.
Available in two lengths: 2500 or 5000 mm, the shelter features a total depth of 1600 mm. The round posts are made of 3 mm thick aluminum tube with a diameter of 76 mm, mounted on base plates. The roof is made of arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of two aluminum tube struts (40 x 60 mm) and two aluminum profile gutters. The sides and back panels are made of Securit glass, 8 mm thick, secured by an aluminum die-cast clamping system. The shelter also includes a timetable display case and options for information and advertising displays.
The dimensions of the shelter are as follows: Width 2500 x Height 2545 x Depth 1667 mm. It comes with a choice of 4 head models: City, Agora, Kugel, or brushed stainless steel, all painted according to the available color palette. The assembly is done on base plates.
Technical Specifications
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum tube D: 76 mm, 3 mm (on plates)
- Color: White RAL 9010
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sides Material: Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight (kg): 210
- Accessories: INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall panels using the aluminum die-cast clamping system.
- Mount the roof structure securely in place.
We are proud to be an official distributor of PROCITY products.
Payment Methods
We accept payments via Credit Card, PayPal, Klarna for installment payments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
Shelters
Model Name
Province aus Edelstahl-2.5
Width (W)
2500 mm
Height (H)
2545 mm
Depth (D)
1667 mm
Frame Material
Alu Tube D: 76 mm, 3 mm (on Plates)
Roof Material
Curved PC 6 mm (UV)
Colour
Pure White
Side Cladding
Seitenverkl.
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
