Description Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.

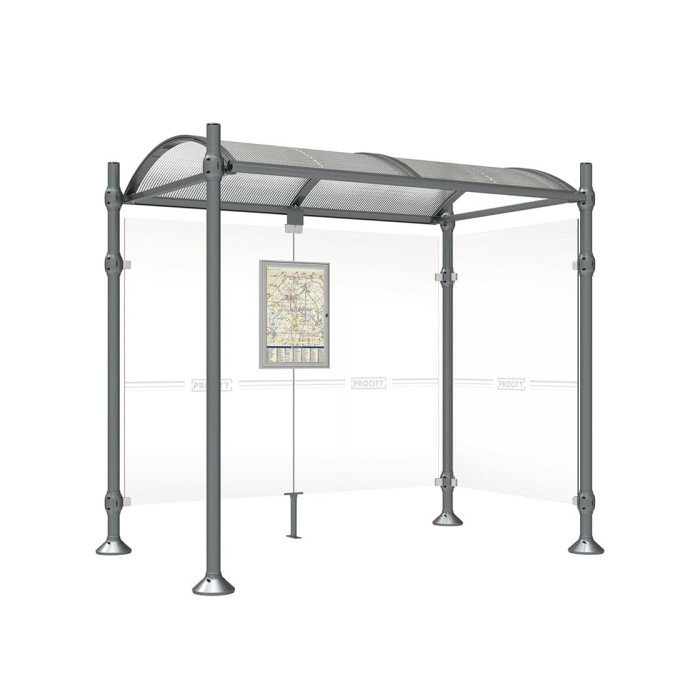

PROCITY Wartehalle Province, 1 Seitenverkleidung, L 2500 mm
The PROCITY Wartehalle Province with 1 Seitenverkleidung and a length of 2500 mm is an ideal solution for providing shelter and waiting areas in urban spaces.
Product Description
Featuring 4 head models to choose from and various mounting clamps and base plates, the Bushaltestelle Province stands out with a clear visual identity. It forms a harmonious unit with the street furniture of the same collection.
Available in two lengths: 2500 or 5000 mm, the overall depth is 1600 mm. The round posts are made of 3 mm thick aluminum tube with a diameter of ø 76 mm, mounted on base plates. The roof is made of arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of two aluminum tube struts, 40 x 60 mm, and two gutters made of aluminum profile. The sides and back are covered with Securit glass, 8 mm thick, attached using an aluminum die-cast clamping system. The waiting shelter also includes a timetable display case and options for information and advertising using a lightbox or "2000" display case. It is available in various RAL colors for coating and is installed on base plates.
Product Benefits
The PROCITY Wartehalle Province offers dimensions of Width: 2500 x Height: 2545 x Depth: 1667 mm. It provides a choice of 4 head models: City, Agora, Kugel, or brushed stainless steel. The shelter is painted according to our color palette and can be easily mounted on base plates.
Technical Specifications
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum tube D: 76 mm, 3 mm (on plates)
- Color: Anthracite Procity Gray
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Sides Covering: Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Mounting Condition: Disassembled
- Fastening: On base plates
- Weight (kg): 210
- Accessories: INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall panels using the clamping system.
- Mount the roof onto the frame structure.
About the Company
INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers. Enjoy a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
Shelters
Model Name
Province aus Edelstahl-2.5
Width (W)
2500 mm
Height (H)
2545 mm
Depth (D)
1667 mm
Frame Material
Alu Tube D: 76 mm, 3 mm (on Plates)
Roof Material
Curved PC 6 mm (UV)
Colour
Procity Gray (anthracite)
Side Cladding
Seitenverkl.
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
