Description Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.

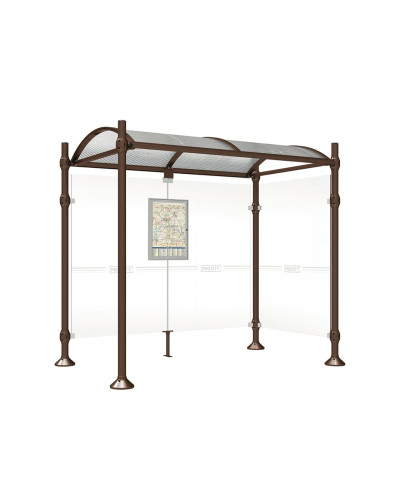

PROCITY Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
The PROCITY Wartehalle Province with 1 Seitenverkleidung and a length of 2500 mm is designed for use as an overhead covering and waiting shelter in urban areas.
Product Description
Featuring 4 head models to choose from, along with various mounting clamps and cover feet, the Bushaltestelle Province stands out with a clear visual identity. It forms a harmonious unit with the city furniture of the same collection.
Available in two lengths: 2500 or 5000 mm. Overall depth: 1600 mm. Round posts: 3mm thick aluminum tube, ø 76 mm, on base plates. Cover feet and mounting clamps: die-cast aluminum. Height under the roof: 2500 mm. Roof: Curved polycarbonate panels, 6 mm with UV protection. Roof structure: Two aluminum tube struts, 40 x 60 mm, and two channels made of aluminum profile. Bracket made of curved aluminum profile. Side and rear cladding: Securit glass, 8 mm. Cladding: secured by a die-cast aluminum clamping system. Timetable display case: 750 x 550 mm (4 A4), 30 mm deep, made of anodized aluminum (Art. No. 505045). Information and advertising: Lightbox (display area size 1710 x 1160 mm) or showcase "2000" (display area size 1750 x 1200 mm). Finish: coated in our RAL colors of choice. Assembly: On base plates.
Product Benefits
Dimensions: Width 2500 x Height 2545 x Depth 1667 mm. Available in 4 head models: City, Agora, Kugel, or brushed stainless steel. Finish: Painted according to our color palette. Mounting on base plates.
Technical Specifications
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum tube D: 76 mm, 3 mm (on plates)
- Color: Brown RAL 8017 (more precise color name: Chocolate Brown)
- Roof Material: Curved PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Cladding: Side cladding
- Lightbox: No
- Showcase: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 210
- Accessories: INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall/panel cladding securely.
- Mount the roof structure in place.
