Description Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.

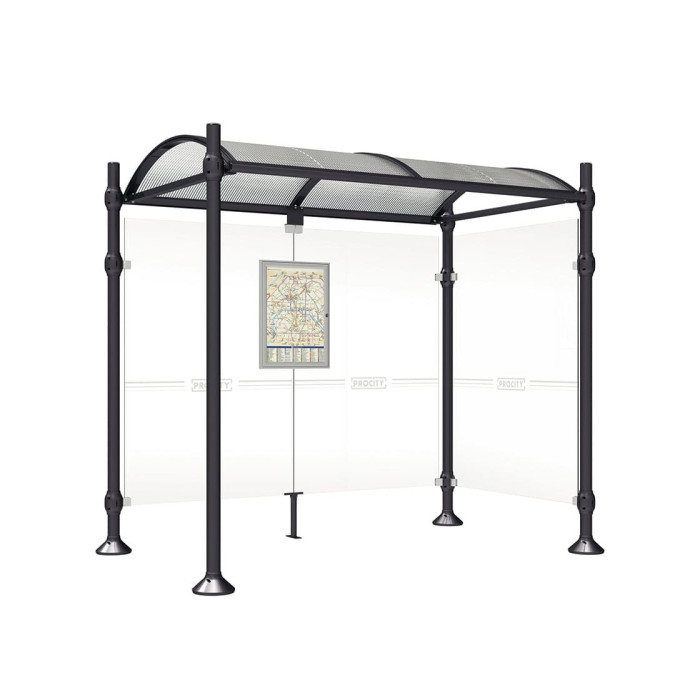

PROCITY Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
The PROCITY Wartehalle Province with 1 Seitenverkleidung and L 2500 mm is an ideal solution for providing overhead covering and waiting shelters in public spaces. With 4 available head models to choose from, as well as various mounting clamps and base plates, the Province bus stop stands out with a clear visual identity. It forms a harmonious unit with the street furniture of the same collection.
The Wartehalle comes in two lengths: 2500 or 5000 mm with a total depth of 1600 mm. The round posts are made of 3mm thick aluminum pipe with a diameter of ø 76 mm, mounted on base plates. The roof is made of curved polycarbonate panels, 6mm thick with UV protection. The roof structure consists of two aluminum tube struts, 40 x 60 mm, and two gutters made of aluminum profile. The sides and rear cladding are made of Securit glass, 8mm thick, and are fixed using an aluminum die-cast clamping system. The bus stop also includes a timetable display case and options for information and advertising displays.
The PROCITY Wartehalle Province offers the following benefits: dimensions of Width: 2500 x Height: 2545 x Depth: 1667 mm, a choice of 4 head models: City, Agora, Kugel, or brushed stainless steel, and it is available in various colors from our RAL palette. It is designed to be mounted on base plates.
Technical Specifications
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum pipe D: 76 mm, 3mm (on plates)
- Color: Black RAL 9005 (Tiefschwarz)
- Roof Material: Curved PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Cladding: Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 210
- Accessories: INC-509041
Installation
- Prepare the base for mounting.
- Assemble the frame according to the provided instructions.
- Install the wall/panel cladding securely.
- Mount the roof as per the assembly guide.
We are proud to be an official distributor of PROCITY products at INCAPCORP.
Payment Methods
We accept payments via Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We offer delivery services to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
Shelters
Model Name
Province aus Edelstahl-2.5
Width (W)
2500 mm
Height (H)
2545 mm
Depth (D)
1667 mm
Frame Material
Alu Tube D: 76 mm, 3 mm (on Plates)
Roof Material
Curved PC 6 mm (UV)
Colour
Jet Black
Side Cladding
Seitenverkl.
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
