Description Procity Waiting Hall Province, 2 Side Panels, L 2500 mm.
PROcity Wartehalle Province, 2 Seitenverkleidungen, L 2500 mm.

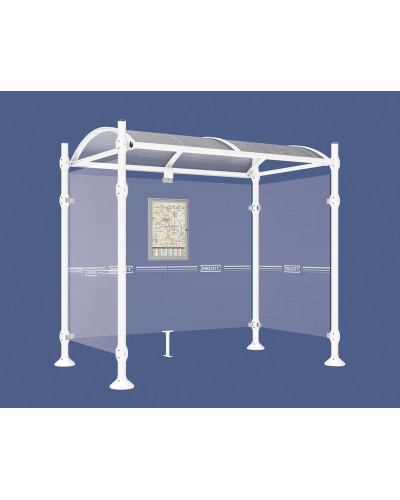

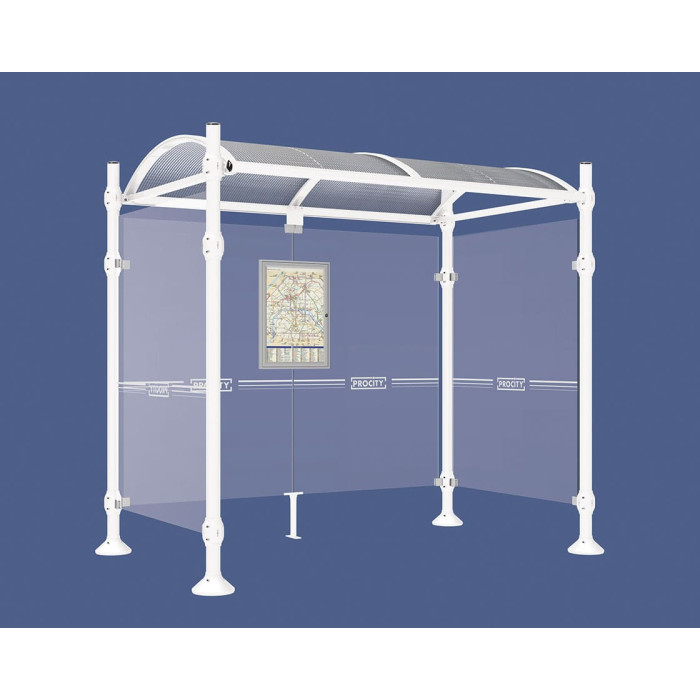

The PROcity Wartehalle Province with 2 Seitenverkleidungen and a length of 2500 mm is a modern and stylish overhead covering designed to provide a comfortable waiting area for public transportation users. With 4 head models to choose from, various mounting clamps, and base feet, the Province bus stop stands out with a clear visual identity. It forms a harmonious unit with the city furniture of the same collection.
Available in two lengths: 2500 or 5000 mm, the overall depth of the shelter is 1600 mm. The round posts are made of 3mm thick aluminum pipe with a diameter of ø 76 mm, mounted on base plates. The roof is made of arched polycarbonate panels, 6mm thick with UV protection. The roof structure consists of two aluminum tube struts, 40 x 60 mm, and two gutters made of aluminum profile. The sides and back panels are made of Securit glass, 8mm thick, and are fastened using an aluminum die-cast clamping system. The shelter also includes a timetable display case and options for information and advertising display cases.
The dimensions of the PROcity Wartehalle Province are as follows: Width 2500 x Height 2545 x Depth 1667 mm. It offers a choice of 4 head models: City, Agora, Kugel, or brushed stainless steel. The shelter is painted according to our color palette and can be mounted on base plates.
Technical Specifications
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum pipe D: 76 mm, 3 mm (on plates)
- Color: White RAL 9010 (Reinweiß)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Cladding: 2 Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Mounting Condition: Disassembled
- Fastening: On base plates
- Weight(kg): 269
- Accessories: INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall/panel cladding securely.
- Mount the roof structure in place.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Province, 2 Side Panels, L 2500 mm.
Shelters
Model Name
Province aus Edelstahl-2.5
Width (W)
2500 mm
Height (H)
2545 mm
Depth (D)
1667 mm
Frame Material
Alu Tube D: 76 mm, 3 mm (on Plates)
Roof Material
Curved PC 6 mm (UV)
Colour
Pure White
Side Cladding
2 Side Claddings
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
