Description Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
PROCITY Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.

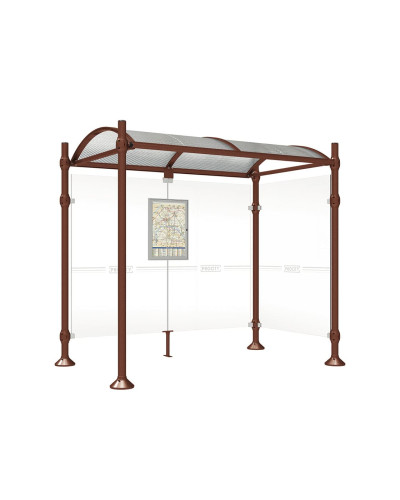

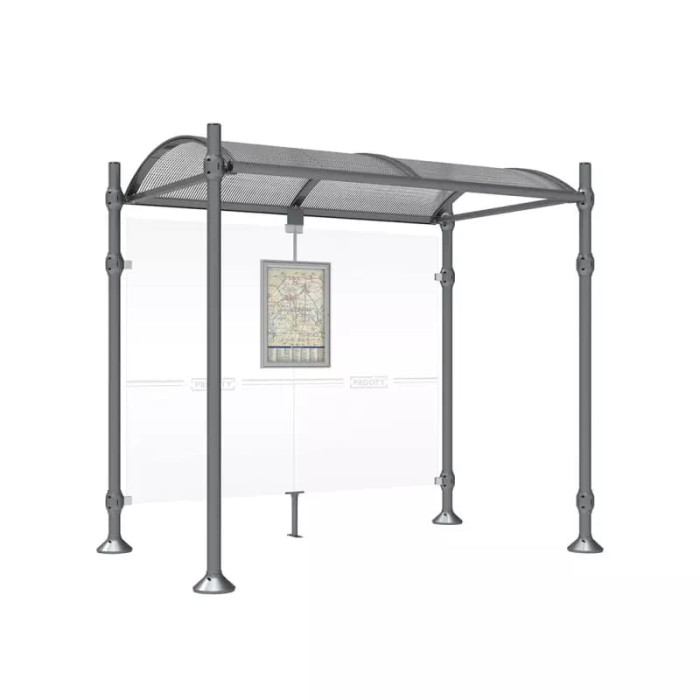

PROCITY Wartehalle Province with 1 Seitenverkleidung is an ideal overhead covering solution for public spaces. It offers a clear visual identity and can be combined with city furniture from the same collection to create a harmonious unit.
Featuring two length options of 2500 or 5000 mm, the shelter has a total depth of 1600 mm and is supported by aluminum round posts (3 mm thick, ø 76 mm) on base plates. The roof consists of arched polycarbonate panels (6 mm with UV protection) supported by two aluminum tube struts (40 x 60 mm) and two aluminum profile gutters. The sides and rear are covered with Securit glass (8 mm) secured by an aluminum die-cast clamping system. The shelter also includes a timetable display case and options for information and advertising display cases.
The PROCITY Wartehalle Province is available in various RAL colors for coating and can be mounted on base plates.
Product Benefits:
- Dimensions: Width 2500 x Height 2545 x Depth 1667 mm
- 4 head models to choose from: City, Agora, Kugel, or brushed stainless steel
- Coated according to our color palette
- Easy installation on base plates
Technical Specifications:
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum tube D: 76 mm, 3 mm (on plates)
- Color: Rust Corten-Effect
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Sides: Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 210
- Accessories: INC-509041
Installation:
- Prepare the base for mounting.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels using the clamping system.
- Mount the roof structure onto the frame.
Payment Methods:
We accept payments via Credit Card, PayPal, Klarna for installment payments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We offer delivery to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
Shelters
Model Name
Province aus Edelstahl-2.5
Width (W)
2500 mm
Height (H)
2545 mm
Depth (D)
1667 mm
Frame Material
Alu Tube D: 76 mm, 3 mm (on Plates)
Roof Material
Curved PC 6 mm (UV)
Colour
Corten-Effect Rust
Side Cladding
Seitenverkl.
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
