Description Procity Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.
PROCITY Wartehalle Province, 1 Seitenverkleidung, L 2500 mm.

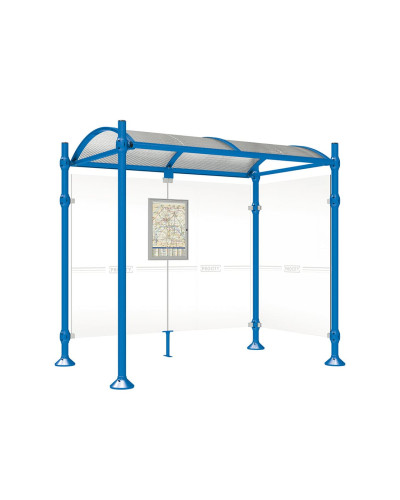

The PROCITY Wartehalle Province with 1 Seitenverkleidung and L 2500 mm is a stylish and functional overhead covering that provides a comfortable waiting area for public transportation users.
Product Description
The Bushaltestelle Province features 4 head models to choose from, along with various mounting clamps and base plates, giving it a distinct visual identity. It forms a harmonious unit with the urban furniture of the same collection.
Available in two lengths: 2500 or 5000 mm. Total depth: 1600 mm. Round posts: 3 mm thick aluminum tube, ø 76 mm, on base plates. Mounting clamps and base plates: Die-cast aluminum. Height under the roof: 2500 mm. Roof: Curved polycarbonate panels, 6 mm with UV protection. Roof structure: Two aluminum tube struts, 40 x 60 mm, and two gutters made of aluminum profile. Bracket made of curved aluminum profile. Side and rear paneling: Securit® glass, 8 mm. Cladding: Fastened by a die-cast aluminum clamping system. Timetable display case: 750 x 550 mm (4 A4), 30 mm deep, made of anodized aluminum (Art. No. 505045). Information and advertising: Lightbox (display area size 1710 x 1160 mm) or display case "2000" (display area size 1750 x 1200 mm). Finish: Coated in our RAL colors of choice. Installation: On base plates.
Product Benefits
The PROCITY Wartehalle Province offers dimensions of Width 2500 x Height 2545 x Depth 1667 mm. It comes with a choice of 4 head models: City, Agora, Kugel, or brushed stainless steel. The product is painted according to our color palette and can be easily mounted on base plates.
Technical Specifications
- Width: 2500 mm
- Height: 2545 mm
- Depth: 1667 mm
- Frame Material: Aluminum tube D: 76 mm, 3 mm (on plates)
- Color: Blue RAL 5010 (Enzianblau)
- Roof Material: Curved PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Sidewall Cladding: Seitenverkl.
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Fastening: On base plates
- Weight(kg): 210
- Accessories: INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels using the clamping system.
- Mount the roof structure securely in place.
