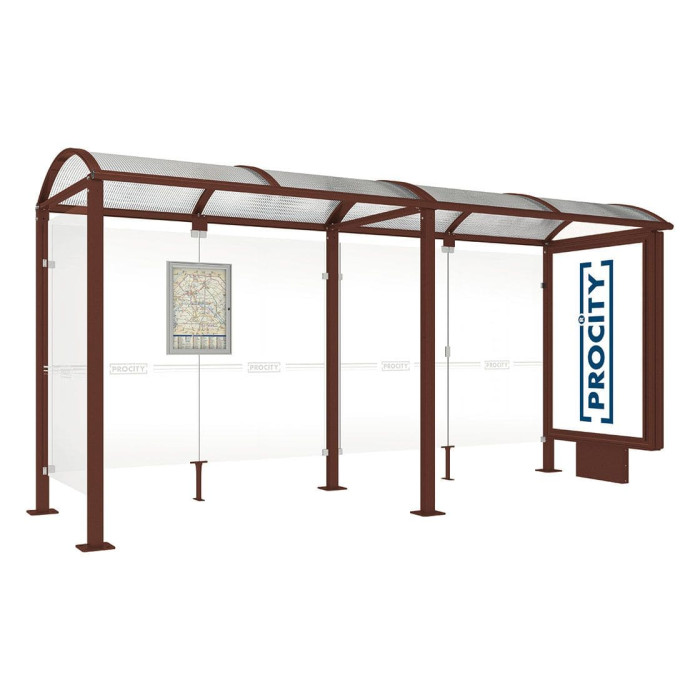

Description Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
PROCITY Wartehalle Vierkantrohr, 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 5000 mm
This high-quality bus waiting shelter with a simple design fits harmoniously into rural and urban environments. It is available in two lengths: 2500 or 5000 mm. The total depth is 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubes on base plates. The height under the roof is 2500 mm. The roof is made of arched 6mm polycarbonate panels with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. The brackets are made of curved aluminum profiles. The side and rear cladding are constructed using Securit glass, 8mm thick, and are fastened using a brushed aluminum casting clamping system. It also includes a timetable display case (750 x 550 mm) and options for information and advertising displays such as a lightbox (1710 x 1160 mm) or "2000" display case (1750 x 1200 mm). The shelter is available in various RAL colors and can be mounted on base plates.
Dimensions: Width: 5000 mm, Height: 2560 mm, Depth: 1600 mm
Finish: Painted according to our color palette
Installation: For embedding
Technical Specifications
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Rust Corten Effect
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Sidewall Cladding: Left side cladding
- Lightbox: Yes
- Display Case: Yes
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight (kg): 525
- Accessories: INC-209147, INC-509041
Installation
- Create a foundation for embedding.
- Assemble the frame.
- Install the wall panels.
- Mount the roof.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
Shelters
Model Name
Malta-5+LED
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Corten-Effect Rust
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
