Description Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
PROCITY Wartehalle Vierkantrohr, 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 5000 mm

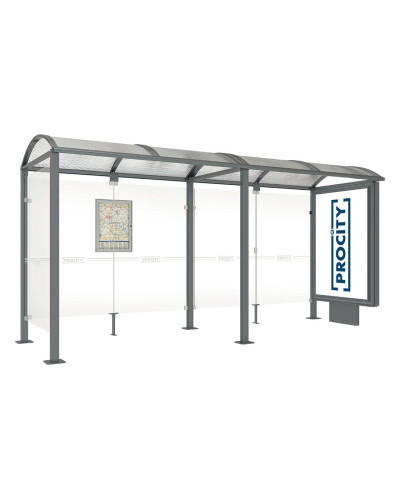

This high-quality bus waiting shelter with a simple design harmoniously integrates into rural and urban environments. It comes in two lengths: 2500 or 5000 mm and has a total depth of 1600 mm. The square posts are made of 80 x 80 mm steel tube on base plates, with a height under the roof of 2500 mm. The roof is made of arched 6 mm polycarbonate panels with UV protection. The roof structure includes aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. The brackets are made of curved aluminum profile. The side and rear cladding are made of Securit glass, 8 mm thick, fastened with a brushed aluminum casting clamping system. It also features a timetable display case, information and advertising options such as a lightbox or display case "2000". It is available in various RAL colors for customization and is mounted on base plates.
Dimensions: Width: 5000 mm | Height: 2560 mm | Depth: 1600 mm
Finish: Painted according to our color palette.
Installation: For embedding.
Technical Specifications
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Anthracite Procity Gray
- Roof Material: Arched polycarbonate (UV)
- Wall Material: Securit glass 8 mm with sign
- Siding: Left side cladding
- Lightbox: Yes
- Display Case: Yes
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight (kg): 525
- Accessories: INC-209147, INC-509041
Installation Instructions
- Prepare the base for installation.
- Assemble the frame according to provided instructions.
- Install the wall panels and cladding.
- Mount the roof structure securely.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
Shelters
Model Name
Malta-5+LED
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Procity Gray (anthracite)
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
