Description Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
PROCITY Wartehalle Vierkantrohr, 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 5000 mm

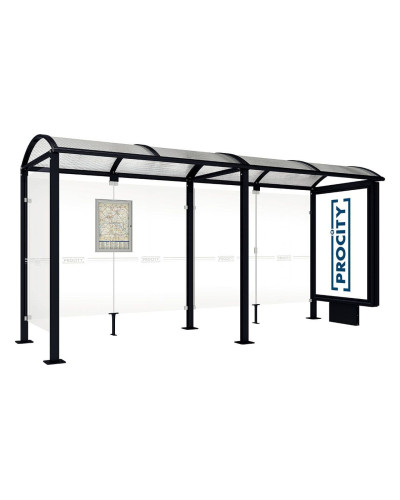

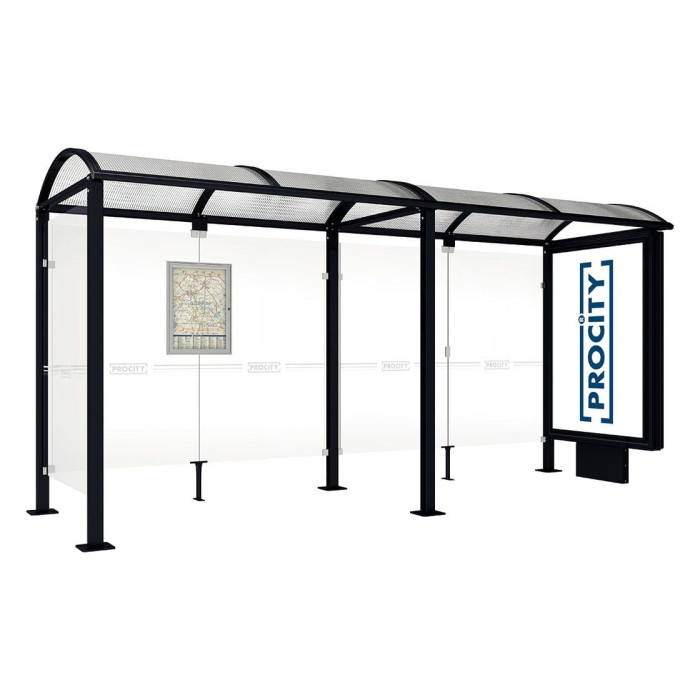

A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. Available in two lengths: 2500 or 5000 mm, the shelter has a total depth of 1600 mm. The square posts are made of steel tube 80 x 80 mm on base plates with a height under the roof of 2500 mm. The roof is made of arched polycarbonate panels, 6 mm with UV protection, supported by aluminum tube struts, 40 x 60 mm, and gutters made of aluminum profile. The sides and rear panels are made of Securit glass, 8 mm, and are attached using a clamping system made of brushed aluminum casting. The shelter also includes a display case for schedules and an advertising lightbox or display case "2000". It is available in various RAL colors for coating and is mounted on base plates.
Dimensions: Width 5000 x Height 2560 x Depth 1600 mm
Design: Painted according to our color palette
Installation: For embedding
Technical Specifications
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Black RAL 9005 (Tiefschwarz)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Sidewall: Left side wall
- Luminous Box: Yes
- Showcase: Yes
- Installation Condition: Disassembled
- Fastening: On base plates
- Weight(kg): 525
- Accessories: INC-209147, INC-509041
Installation Instructions
- Prepare the base for embedding.
- Assemble the frame according to the provided instructions.
- Install the wall panels and display case as per the manual.
- Mount the roof structure securely.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Lightbox on Central Foot & 1 Side Panel, L 5000 mm.
Shelters
Model Name
Malta-5+LED
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Jet Black
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
