Description Procity Waiting Hall Square Tube, without Side Panels, L 2500 mm
PROCITY WarteHalle Vierkantrohr, ohne Seitenverkleidungen, L 2500 mm.

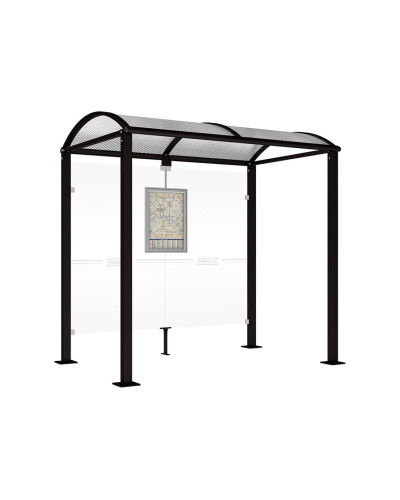

PROCITY WarteHalle Vierkantrohr, ohne Seitenverkleidungen, L 2500 mm. is a high-quality bus waiting shelter with a simple design that harmoniously blends into rural and urban environments.
Product Description
This waiting shelter comes in two lengths: 2500 mm or 5000 mm with a total depth of 1600 mm. The square posts are made of steel tube 80 x 80 mm on base plates. The height under the roof is 2500 mm. The roof is made of arched polycarbonate panels, 6 mm with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and gutters made of aluminum profile. The brackets are made of curved aluminum profile. The sides and rear panels are made of Securit glass, 8 mm. The cladding is attached using a clamping system made of brushed aluminum casting. It also features a timetable display case and options for information and advertising through a lightbox or display case. It is available in various RAL colors for coating and is mounted on base plates.
Product Benefits
The dimensions of the shelter are: Width 2500 x Height 2560 x Depth 1600 mm. It is painted according to our color palette and is suitable for embedding during installation.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Square tube 80x80 hot-dip galvanized
- Color: Black RAL 9005 (Tiefschwarz)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Cladding: Without
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Fastening: On base plates
- Weight(kg): 194
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall panels and signage as per the specifications.
- Mount the roof securely in place.
About the Company
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), and Invoice for approved business customers. Additionally, there is a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, without Side Panels, L 2500 mm
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Jet Black
Side Cladding
None
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
