Description Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm

Procity Wartehalle Vierkantrohr, 1 Seitenverkleidung, L 2500 mm

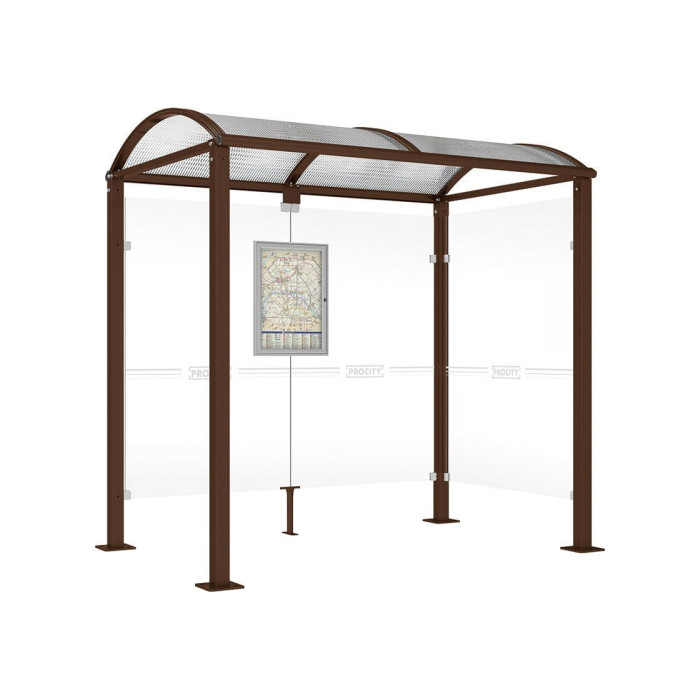

A high-quality bus waiting shelter with a simple design that harmoniously blends into rural and urban environments. Available in two lengths: 2500 or 5000 mm. The overall depth is 1600 mm. The shelter features square steel posts (80 x 80 mm) on floor plates and has a height of 2500 mm under the roof. The roof is made of arched polycarbonate panels, 6 mm with UV protection. The roof structure consists of aluminum tube struts (40 x 60 mm) and aluminum profile gutters. It also includes curved aluminum profile brackets. The side and rear cladding are made of Securit® glass, 8 mm, which is secured using a brushed aluminum casting clamping system. The shelter also includes a timetable display case (750 x 550 mm) made of anodized aluminum (Art. No. 505045). For information and advertising, it can be equipped with either a lightbox (display area size: 1710 x 1160 mm) or a "2000" display case (display area size: 1750 x 1200 mm). It is available in various RAL colors for galvanizing and coating. Installation is done on floor plates.

Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm

Finish: Painted according to our color palette.

Installation: For embedding.

Technical Specifications

• Width: 2500 mm
• Height: 2560 mm
• Depth: 1666 mm
• Frame Material: Galvanized square tube 80 x 80
• Color: Brown RAL 8017 (more precise color name: Chocolate Brown)
• Roof Material: Arched PC 6 mm (UV)
• Wall Material: Securit glass 8 mm with sign
• Side Cladding: Right side cladding
• Lightbox: No
• Display Case: No
• Installation Condition: Disassembled
• Mounting: On floor plates
• Weight(kg): 210
• Accessories: INC-209147, INC-509041

About the Company

We are an official distributor of PROCITY products.

Payment Methods

We accept Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.

Delivery & Shipping

We ship to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.

1. Prepare the base for embedding.
2. Assemble the frame.
3. Install the wall/panels.
4. Mount the roof.
