Description Procity Waiting Hall Square Tube, 1 Showcase 2000 Double-Sided with 1 Side Panel, L 2500 mm.
PROCITY WarteHalle Vierkantrohr, 1 Schaukasten 2000 doppelseitig mit 1 Seitenverkleidung, L 2500 mm

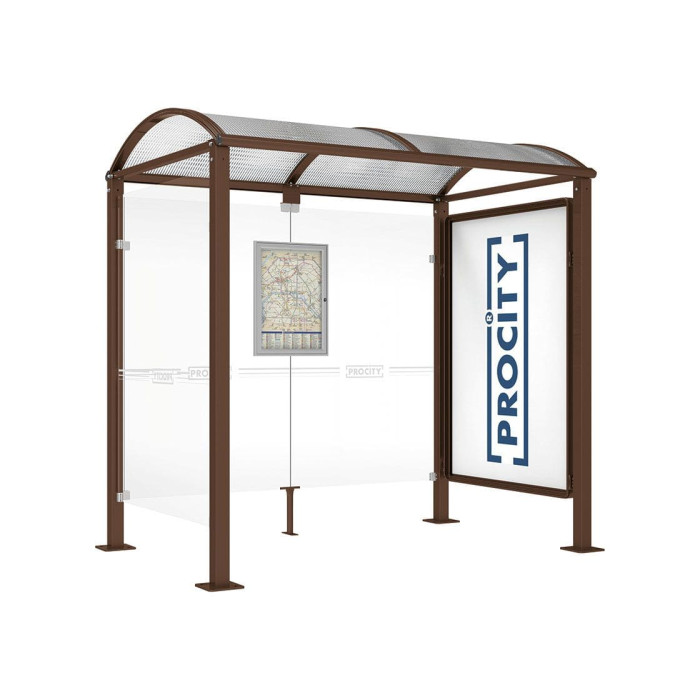

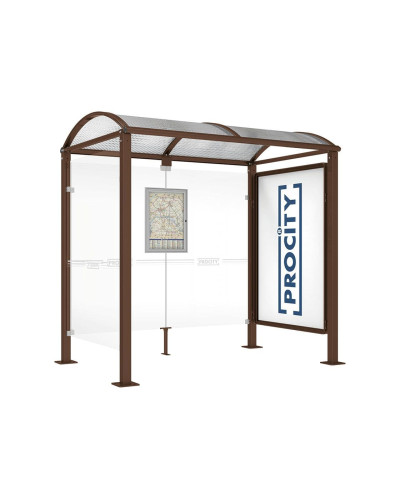

A high-quality bus waiting shelter with a simple design that harmoniously blends into rural and urban environments. Available in two lengths: 2500 mm or 5000 mm. The overall depth is 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubing on base plates, with a height under the roof of 2500 mm. The roof is made of arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. It also includes curved aluminum profile brackets. The side and rear cladding is made of Securit glass, 8 mm thick, fastened with a brushed aluminum casting clamping system. The display case measures 750 x 550 mm (4 A4), is 30 mm deep, and made of anodized aluminum (Art. No. 505045). Information and advertising options include a lightbox (display area size: 1710 x 1160 mm) or the "2000" display case (display area size: 1750 x 1200 mm). It is available in a variety of RAL colors for galvanizing and coating. Installation is done on base plates.
Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm
Features: Painted according to our color palette, Installation: For embedding.
Technical Specifications
- Width: 2500 mm
- Display Case: 2000 r. & Side Cladding l.
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Brown RAL 8017 (Chocolate Brown)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Side Cladding: Left side cladding
- Light Caisson: No
- Display Case: Yes
- Inset Depth:-
- Assembly Condition: Disassembled
- Fastening: On base plates
- Weight(kg): 345
- Accessories: INC-209147, INC-509041
Installation
- Create the base for embedding.
- Assemble the frame.
- Install the wall/panel cladding.
- Mount the roof.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Showcase 2000 Double-Sided with 1 Side Panel, L 2500 mm.
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Chocolate Brown
Side Cladding
Left Side Cladding
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
