Description Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm
Procity Wartehalle Vierkantrohr, 1 Seitenverkleidung, L 2500 mm

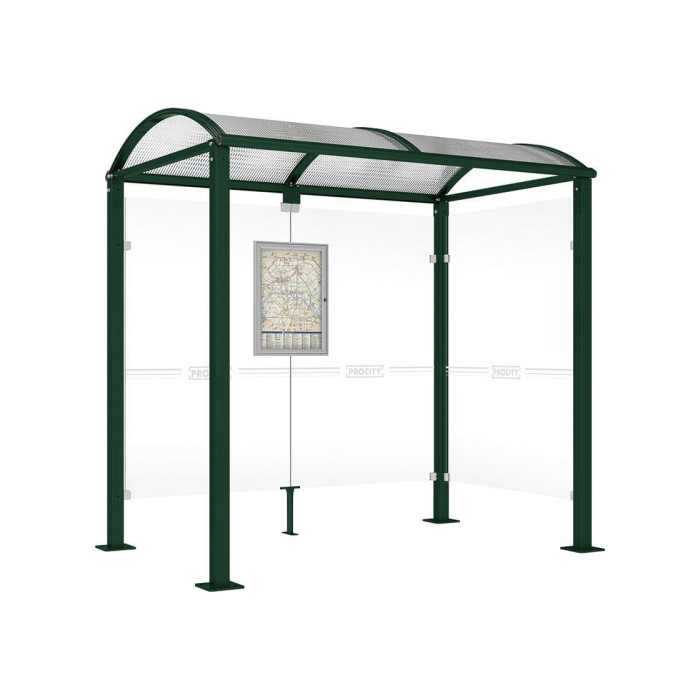

This high-quality bus shelter with a simple design harmoniously blends into rural and urban environments. It is available in two lengths: 2500 or 5000 mm with a total depth of 1600 mm. The square posts are made of 80 x 80 mm steel tubes on base plates, providing stability. The height under the roof is 2500 mm, and the roof is made of arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. The brackets are made of curved aluminum profiles. The side and rear cladding are made of Securit glass, 8 mm thick, and are secured using a brushed aluminum casting clamping system. The shelter also includes a timetable display case (750 x 550 mm) and options for information and advertising such as a lightbox or display case. It is available in various RAL colors for customization and is installed on base plates.
Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm
Finish: Painted according to our color palette
Installation: For embedding in concrete
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Green RAL 6005 (Moosgrün)
- Roof Material: Arched PC (6mm UV)
- Wall Material: Securit glass (8mm) with sign
- Side Cladding: Right side
- Lightbox: No
- Display Case: No
- Installation Condition: Disassembled
- Mounting: On base plates
- Weight (kg): 210
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for embedding.
- Assemble the frame according to the provided instructions.
- Install the wall/panel cladding securely.
- Mount the roof onto the structure.
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Moss Green
Side Cladding
Right Side Cladding
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
