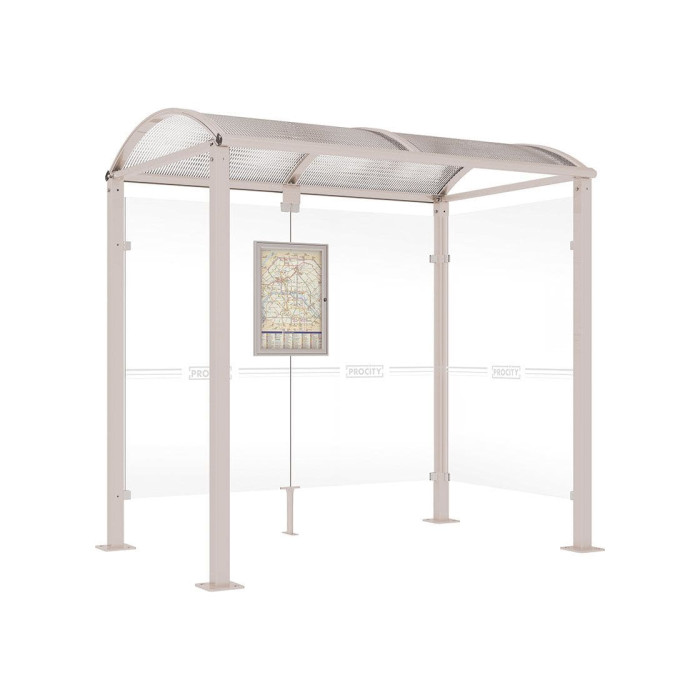

Description Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm
Procity Wartehalle Vierkantrohr, 1 Seitenverkleidung, L 2500 mm
Eine hochwertige Buswartehalle mit schlichtem Design, die sich harmonisch in ländliche und städtische Umgebungen einfügt. Available in two lengths: 2500 or 5000 mm. The overall depth is 1600 mm. The square posts are made of steel tube 80 x 80 mm on base plates. The height under the roof is 2500 mm. The roof is made of arched polycarbonate panels, 6 mm with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and aluminum profile gutters. Brackets are made of curved aluminum profile. The side and rear cladding are made of Securit glass, 8 mm. The cladding is fastened by a clamping system made of brushed aluminum casting. The timetable display case measures 750 x 550 mm (4 A4), 30 mm deep, made of anodized aluminum (Art. No. 505045). For information and advertising purposes, it includes a lightbox (display area size: 1710 x 1160 mm) or a display case "2000" (display area size: 1750 x 1200 mm). It is hot-dip galvanized and coated in our choice of RAL colors. Installation is on base plates.
Product Benefits
The dimensions are as follows: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm. It comes painted according to our color palette and is intended for embedding installation.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Gray RAL 7044 (Seidengrau)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Cladding: Right side cladding
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Fastening: On base plates
- Weight(kg): 210
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall/panel cladding securely.
- Mount the roof structure as directed.
About the Company
We are an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We offer delivery to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, 1 Side Panel, L 2500 mm
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Silk Grey
Side Cladding
Right Side Cladding
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
