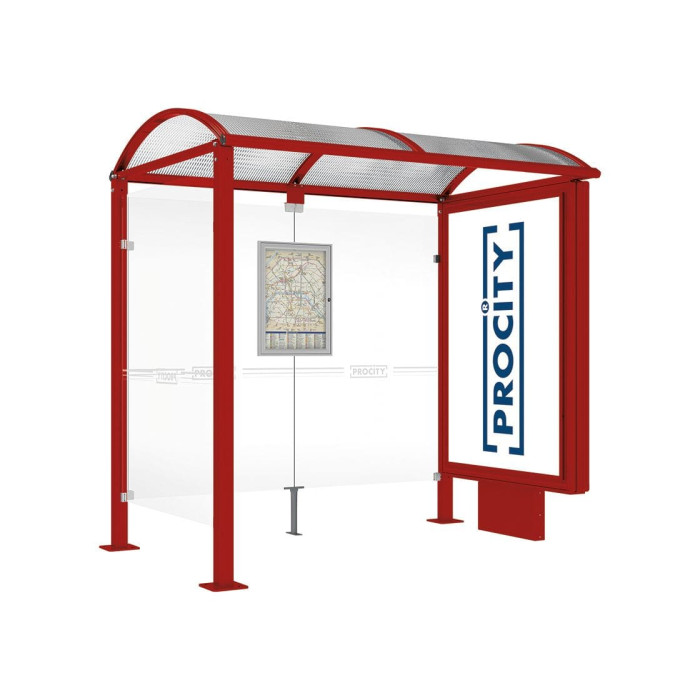

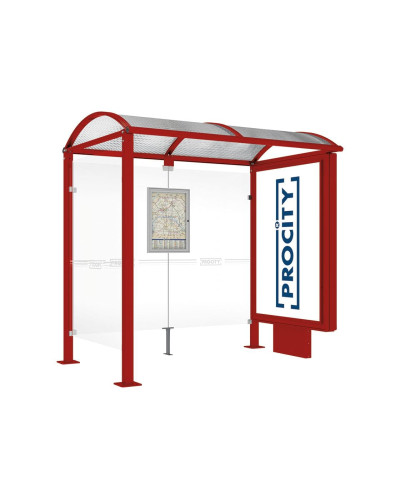

Description Procity Waiting Hall Square Tube- 1 Lightbox on Pedestal & 1 Side Panel, L 2500 mm.
PROCITY WarteHalle Vierkantrohr- 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 2500 mm
Procure the PROCITY WarteHalle Vierkantrohr- 1 Leuchtkasten auf Mittelfuß & 1 Seitenverkleidung, L 2500 mm for a high-quality bus waiting shelter with a simple design that seamlessly blends into both rural and urban environments. Available in two lengths: 2500 or 5000 mm, with a total depth of 1600 mm. The shelter features square posts made of steel tube (80 x 80 mm) on base plates, with a height under the roof of 2500 mm. The roof is made of arched polycarbonate panels (6 mm with UV protection), supported by aluminum tube struts (40 x 60 mm) and aluminum profile gutters. The shelter also includes curved aluminum profile brackets, Securit glass (8 mm) for side and rear cladding, and a display case for schedules and information.
The shelter can be equipped with a lightbox (1710 x 1160 mm display area) or "2000" display case (1750 x 1200 mm display area). It is available in various RAL colors, and the installation is done on base plates.
Product Benefits
The PROCITY WarteHalle Vierkantrohr offers dimensions of Width: 2500 x Height: 2560 x Depth: 1600 mm, painted according to our color palette. It can be installed by embedding into the ground.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Galvanized square tube 80 x 80
- Color: Red RAL 3004 (Purpurrot)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Side Cladding: Left side cladding
- Lightbox: Yes
- Display Case: Yes
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 385
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall/panel cladding.
- Mount the roof structure securely.
About the Company
INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube- 1 Lightbox on Pedestal & 1 Side Panel, L 2500 mm.
Shelters
Model Name
Malta-2.5+LED
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Purple Red
Side Cladding
Left Side Cladding+LED
Display Case
Yes
Mounting
On Base Plates
Delivery Cond.
Disassembled
