Description Procity Waiting Hall Square Tube, without Side Panels, L 2500 mm
PROCITY WarteHalle Vierkantrohr, ohne Seitenverkleidungen, L 2500 mm

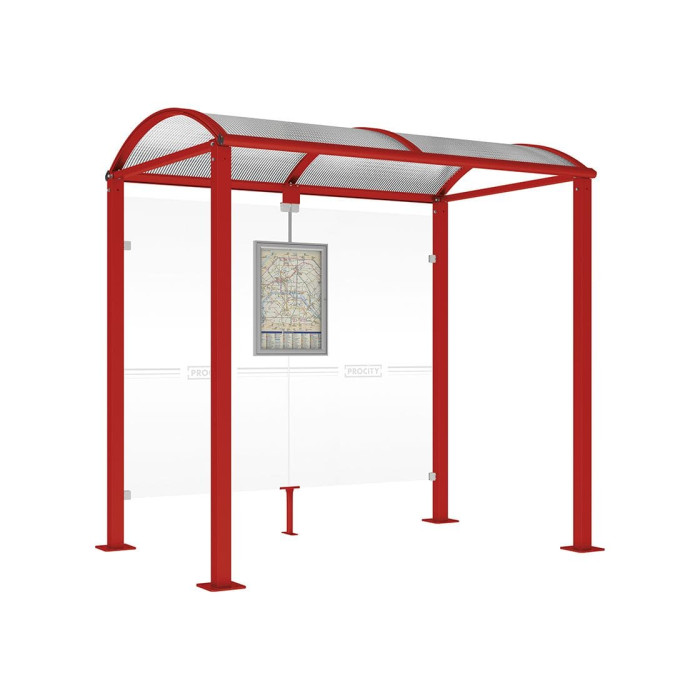

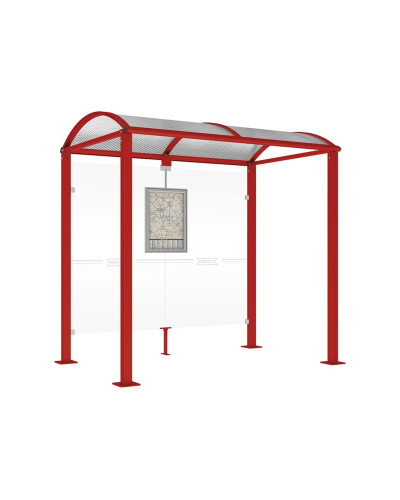

A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. Available in two lengths: 2500 mm or 5000 mm. The overall depth is 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubes on base plates, with a height under the roof of 2500 mm. The roof is made of arched polycarbonate panels, 6 mm thick with UV protection. It has an aluminum tube structure, 40 x 60 mm, and gutters made of aluminum profile. The shelter's sides and back are covered with Securit glass, 8 mm thick, secured with a brushed aluminum clamping system. It also includes a timetable display case and options for advertising with a lightbox or display case "2000". The shelter is available in various RAL colors for customization and is installed on base plates.
Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm
Benefits: The shelter is painted according to our color palette and is suitable for embedding into the ground.
Technical Specifications
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Square tube 80x80 hot-dip galvanized
- Color: Red RAL 3004 (Purpurrot)
- Roof Material: Arched PC 6mm (UV)
- Wall Material: Securit glass 8mm with sign
- Side Paneling: None
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 194
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for embedding.
- Assemble the frame according to the provided instructions.
- Install the wall panels and signage.
- Mount the roof onto the structure.
About the Company: INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna for installments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We offer delivery to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, without Side Panels, L 2500 mm
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Purple Red
Side Cladding
None
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
