Description Procity Wartehalle Modulo, 1 Schaukasten 2000 with 1 Seitenverkleidung, L 5020 mm.

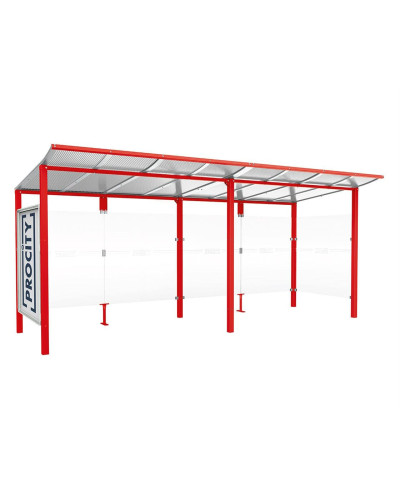

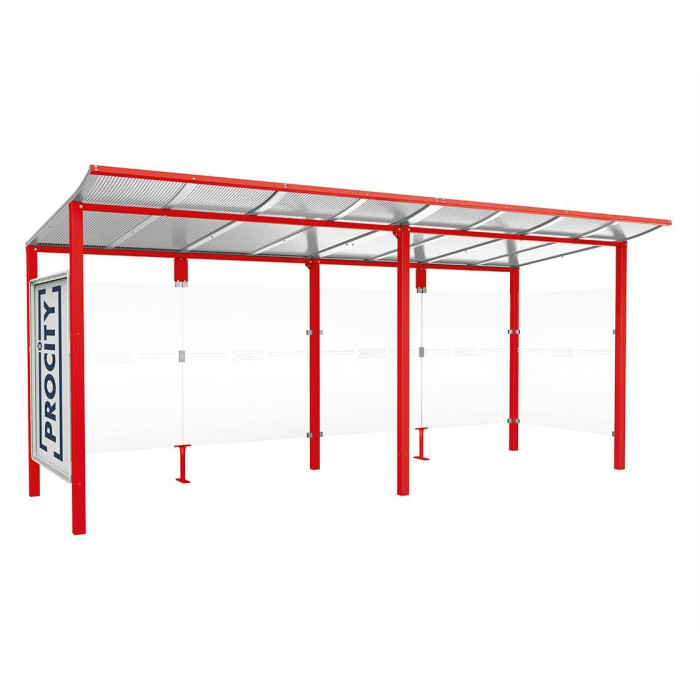

PROCITY Wartehalle Modulo, 1 Schaukasten 2000 mit 1 Seitenverkleidung, L 5020 mm

The PROCITY Wartehalle Modulo with 1 display case and 1 side panel, measuring 5020 mm in length, is designed to provide a sheltered waiting area for various public spaces.

The Buswartehalle Modulo offers a good capacity with a depth of approximately 2 meters. It features clean and stylish surfaces with a slightly curved roof. Standardize your urban spaces for more harmony with the Modulo smoking shelter and the Modulo bicycle shelter, also available.

Available in two lengths: 2500 or 5000 mm. The total depth is 1985 mm with steel tube posts measuring 70 x 70 mm. The height under the roof ranges from a minimum of 1942 to a maximum of 2100 mm. The roof is made of anodized aluminum profiles, cross struts made of steel tube 40 x 40 mm, and UV-treated polycarbonate plates with a thickness of 10 mm. The side and rear panels are made of Securit glass, 5 mm thick, and are fastened using a clamping system made of brushed aluminum casting. It also includes a display case "2000" (display area size: 1270 x 1160 mm), and comes in various RAL colors. The installation is for embedding.

Product Benefits

• Dimensions: Width 5000 x Height 2250 x Depth 2000 mm
• Finish: Painted according to our color palette
• Includes 1 side panel and a display case "2000"
• Installation: For embedding

Technical Specifications

• Length: 5000 mm | Display case & 1 side panel
• Width: 5020 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel tube 70x70
• Color: Red RAL 3020 (Traffic Red)
• Roof Material: PC multi-wall sheet 10 mm (UV)
• Wall Material: Securit glass 5 mm
• Fastening: Clamping system (cast aluminum)
• Side Panel: 1 side panel
• Illuminated Sign Box: No
• Display Case: Yes
• Embedding Depth: 300 mm
• Assembly Condition: Disassembled
• Mounting: For embedding
• Weight(kg): 520
• Accessories: INC-209147, INC-505045

Installation

1. Prepare the base for embedding.
2. Assemble the frame according to the provided instructions.
3. Install the wall/panel on the frame securely.
4. Mount the roof using the recommended method.
