Procity Waiting Area Module - Buy Online - Buy Delivery.

Description Procity Wartehalle Modulo, 1 Schaukasten 2000 with 1 Seitenverkleidung, L 5020 mm.

PROCITY Wartehalle Modulo, 1 Schaukasten 2000 mit 1 Seitenverkleidung, L 5020 mm

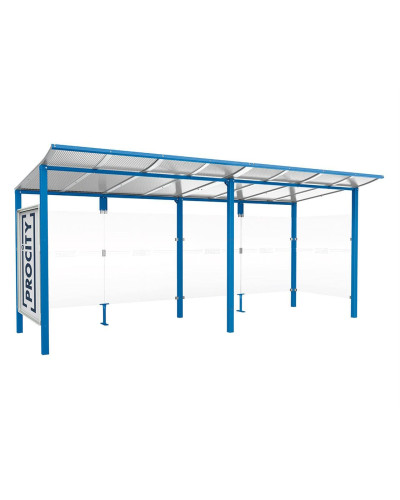

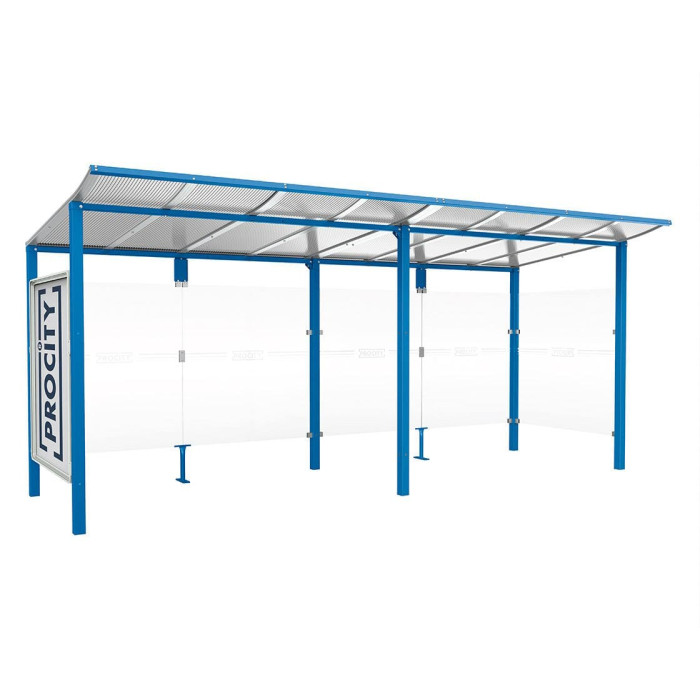

The PROCITY Wartehalle Modulo with 1 display case and 1 side panel, length 5020 mm, is an ideal solution for providing overhead coverings and waiting shelters in urban spaces. It offers a sleek and stylish design with simple and well-maintained surfaces, along with a gently curved roof, providing a harmonious standardization to urban areas. The Modulo also offers the Raucherunterstand and Fahrradunterstand for enhancing the functionality of public spaces.

The Modulo comes in two lengths: 2500 mm or 5000 mm, with a total depth of 1985 mm. The posts are made of steel pipe measuring 70 x 70 mm, and the roof is constructed using anodized aluminum profiles, cross struts made of steel pipe measuring 40 x 40 mm, and UV-treated polycarbonate plates with a thickness of 10 mm. The sides and rear panels are made of Securit glass (5 mm), and the entire structure is fire-galvanized and coated in RAL colors of choice for durability.

The display case "2000" has an advertising surface size of 1270 x 1160 mm. It is suitable for displaying information and advertisements. The PROCITY Wartehalle Modulo is designed for embedding into the ground for secure installation.

Product Benefits

• Dimensions: Width 5000 x Height 2250 x Depth 2000 mm
• Painted according to our color palette
• Comes with 1 side panel and a display case "2000"
• Designed for embedding into the ground

Technical Specifications

• Length: 5000 mm
• Width: 5020 mm
• Height: 2250 mm
• Frame Material: Steel pipe 70x70
• Color: Blue RAL 5010 (Enzianblau)
• Roof Material: Polycarbonate Stegplatte 10 mm (UV)
• Wall Material: Securit glass 5 mm
• Mounting: Embedded installation
• Weight: 520 kg

Installation

1. Prepare the base for embedding.
2. Assemble the frame according to the provided instructions.
3. Install the side panels and rear panels using the provided clamping system.
4. Mount the roof using the aluminum profiles and polycarbonate plates.
