Procity Smoking Shelter Modulo - Buy online - Buy Delivery.

Description Procity Smoking Shelter Modulo, Without Front Cover, Depth 1990 mm, L 5020 mm.

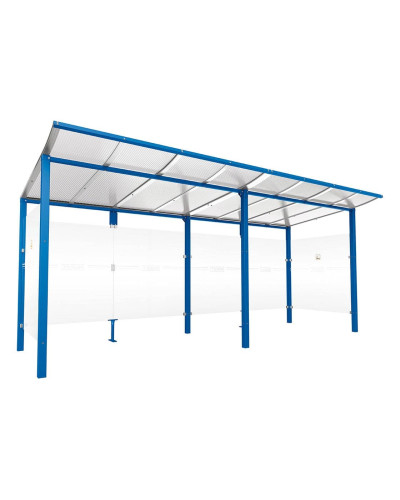

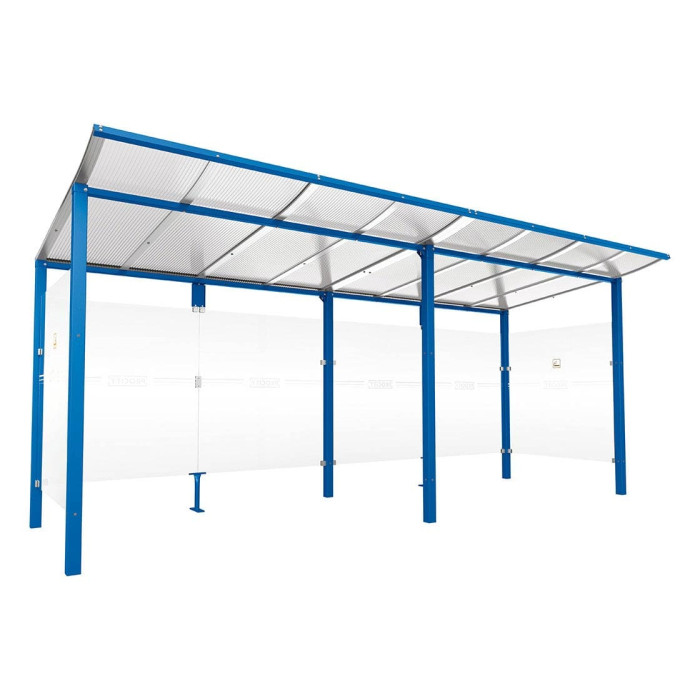

Procity Smoking Shelter Modulo, Without Front Cover, Depth 1990 mm, L 5020 mm

The Procity Smoking Shelter Modulo provides users with protection from inclement weather. Its simple and elegant design allows it to seamlessly blend into any environment. The shelter comes in two different lengths (2500 or 5000 mm) to accommodate various needs. Optional accessories include handrails for added user comfort, "cigarette" symbol stickers (sold in pairs), and various ashtray solutions.

Two Lengths: 2500 or 5000 mm. Depth: 1990 mm. Height under the roof: min. 1942, max. 2100 mm. Square posts: Steel tube 70 x 70 mm. Roof: Anodized aluminum profiles, crossbars of steel tube 40 x 40 mm, and polycarbonate panels with a thickness of 10 mm, UV-protected. Front, side, and rear cladding: 5 mm thick safety glass with safety signage. Finish: Hot-dip galvanized and painted according to our color palette. Mounting: By embedding in concrete.

Key Benefits

The Procity Smoking Shelter Modulo is available in two lengths and features a sturdy construction of steel tube and safety glass, providing protection from adverse weather conditions. It is also customizable and available with optional accessories such as handrails and ashtray solutions.

Detailed Technical Specifications

• Width: 5020 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel Tube 70x70
• Color: Gentian Blue
• Roof Material: PC Sheet 10 mm (UV)
• Side and Rear Wall Material: Safety Glass 5 mm with Sign
• Assembly Condition: Disassembled
• Mounting: For Concreting
• Recommended Embedding Depth: 300 mm
• Weight(kg): 440
• Accessories: INC-209147, INC-529401

Installation

1. Prepare the foundation according to the specified dimensions.
2. Assemble the frame following the provided instructions.
3. Attach the side and rear wall panels according to the installation guidelines.
4. Install the roof as per the provided instructions.
