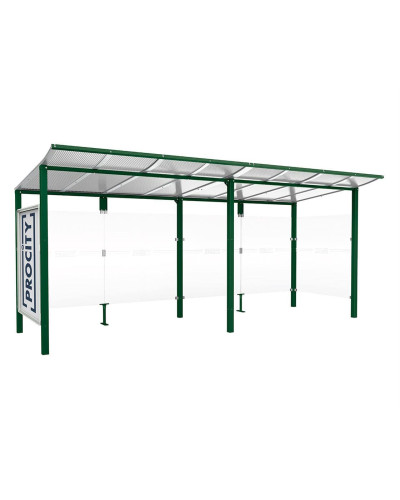

Procity Waiting Area Module - Buy Online - Buy Delivery.

Description Procity Wartehalle Modulo, 1 Schaukasten 2000 with 1 Seitenverkleidung, L 5020 mm.

PROCITY Wartehalle Modulo, 1 Schaukasten 2000 mit 1 Seitenverkleidung, L 5020 mm

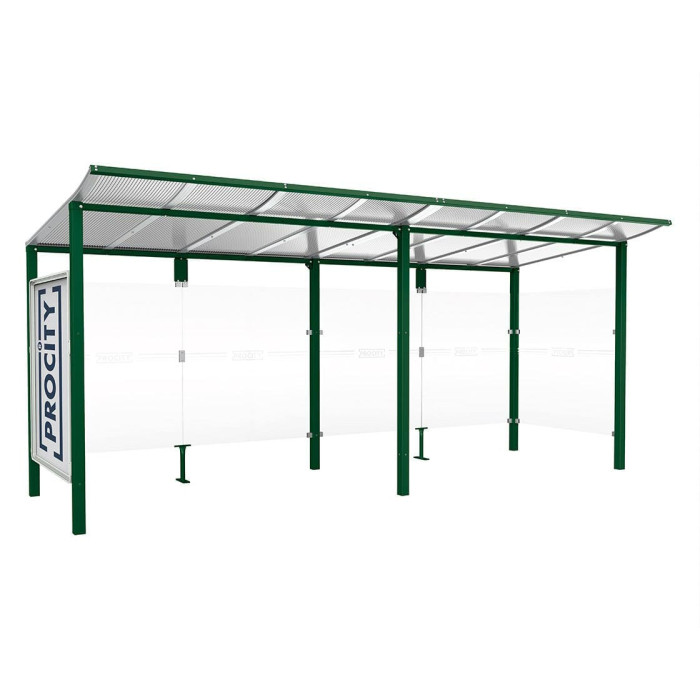

The PROCITY Wartehalle Modulo is a versatile waiting shelter that offers a stylish and functional solution for urban spaces. With a depth of approximately 2 meters, it provides ample capacity while maintaining a sleek and elegant design with simple and well-maintained surfaces and a gently curved roof. Standardize your urban spaces for more harmony with the Modulo smoking shelter and bicycle shelter, which are also available.

The Wartehalle Modulo comes in two lengths: 2500 or 5000 mm, with a total depth of 1985 mm. The posts are made of steel tube measuring 70 x 70 mm. The roof is constructed using anodized aluminum profiles, crossbars made of steel tube measuring 40 x 40 mm, and UV-treated polycarbonate panels with a thickness of 10 mm. The sides and rear panels are made of Securit glass (5 mm), and the display case size is 1270 x 1160 mm. It is available in various RAL colors for customization and is designed for installation by embedding in concrete.

Product Benefits:

• Dimensions: Width 5000 x Height 2250 x Depth 2000 mm
• Finish: Painted according to our color palette
• Includes 1 side panel and a display case "2000"
• Designed for installation by embedding in concrete

Technical Specifications:

• Width: 5020 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel tube 70x70
• Color: Green RAL 6005 (Moosgrün)
• Roof Material: Polycarbonate Stepped Plate 10 mm (UV)
• Wall Material: Securit glass 5 mm
• Fastening with clamping system (cast aluminum)
• Side Panel: 1 side panel
• Illuminated Lightbox: No
• Display Case: Yes
• Installation Condition: Disassembled
• Mounting: For embedding in concrete
• Weight (kg): 520
• Accessories: INC-209147, INC-505045

Installation:

1. Prepare the base for embedding in concrete.
2. Assemble the frame according to the provided instructions.
3. Install the wall panels using the clamping system.
4. Mount the roof using the included components.
