Procity Waiting Area Module - Buy Online - Buy Delivery.

Description Procity Wartehalle Modulo, 1 Schaukasten 2000 with 1 Seitenverkleidung, L 5020 mm.

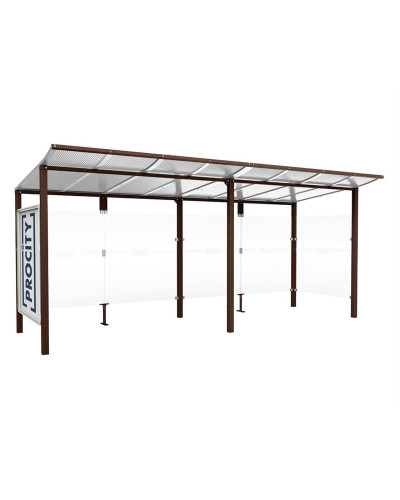

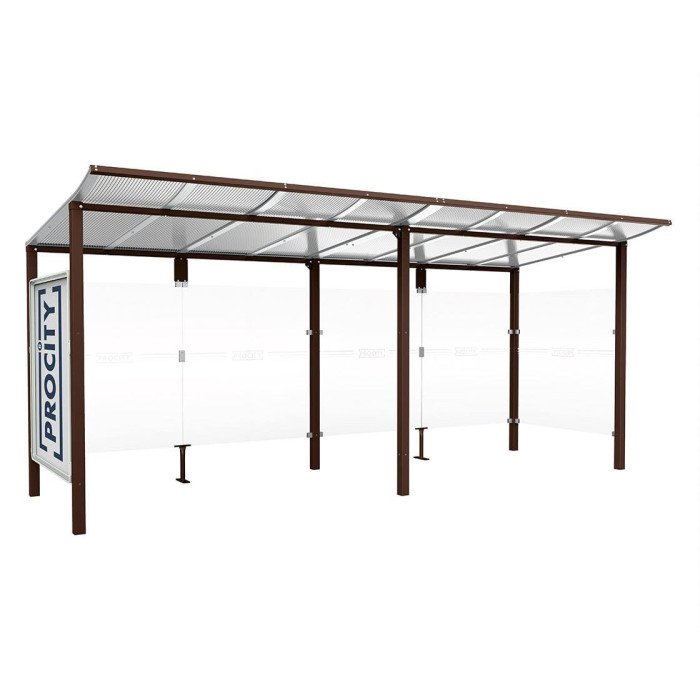

PROCITY Wartehalle Modulo, 1 Schaukasten 2000 mit 1 Seitenverkleidung, L 5020 mm

The PROCITY Wartehalle Modulo with 1 display case and 1 side panel is an ideal solution for creating harmonious urban spaces. With a depth of approximately 2 meters, it offers a good capacity for various applications. Its simple and stylish design, featuring clean surfaces and a slightly curved roof, adds to the overall aesthetic appeal. Additionally, you can standardize your urban areas further by complementing this waiting shelter with the Modulo smoking shelter and Modulo bicycle shelter.

The Wartehalle Modulo is available in two lengths: 2500 mm or 5000 mm, with a total depth of 1985 mm. The posts are made of steel tube (70 x 70 mm), and the height under the roof ranges from a minimum of 1942 mm to a maximum of 2100 mm. The roof is constructed using anodized aluminum profiles, steel tube crossbars (40 x 40 mm), and UV-protected polycarbonate panels (10 mm thick). The side and rear panels are made of Securit glass (5 mm), which is securely fastened using a brushed aluminum casting clamping system. The display case "2000" (with an advertising area of 1270 x 1160 mm) is included, along with fire-galvanized coating available in various RAL colors for customization. The shelter is designed for in-ground installation, and a timetable display case (750 x 550 mm) made of anodized aluminum can be added separately.

Product Benefits

• Dimensions: Width 5000 x Height 2250 x Depth 2000 mm
• Finish: Painted according to our color palette
• Installation: In-ground mounting

Technical Specifications

• Length: 5000 mm | Display Case & 1 Side Panel
• Width: 5020 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel tube (70x70)
• Color: Brown RAL 8017 (Chocolate Brown)
• Roof Material: Polycarbonate Stepped Plate 10 mm (UV)
• Wall Material: Securit glass 5 mm, Clamping system (cast aluminum)
• Side Panel: 1 Side Panel
• Illuminated Sign Box: No
• Display Case: Yes
• Installation Depth: 300 mm
• Assembly Condition: Disassembled
• Mounting: For in-ground installation
• Weight(kg): 520
• Accessories: INC-209147, INC-505045

Installation

1. Prepare the base for in-ground installation.
2. Assemble the frame components according to the provided instructions.
3. Install the side and rear panels securely using the clamping system.
4. Mount the roof using the included hardware.
