Description Procity Waiting Hall Square Tube, without Side Panels, L 2500 mm
```html
PROCITY WarteHalle Vierkantrohr, ohne Seitenverkleidungen, L 2500 mm

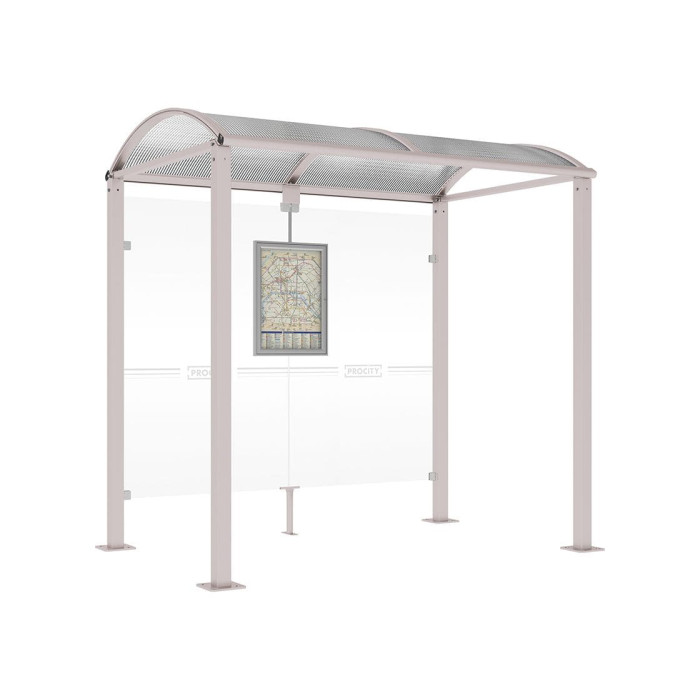

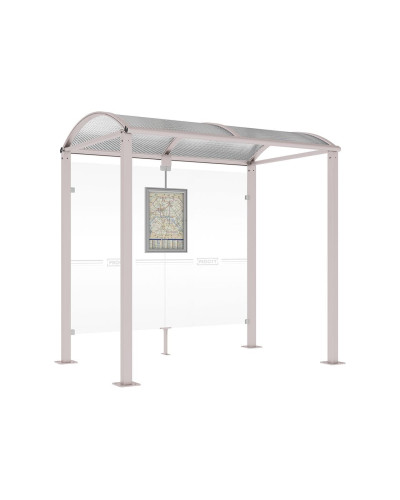

This high-quality bus waiting shelter with a simple design seamlessly blends into rural and urban environments. It comes in two lengths: 2500 or 5000 mm with a total depth of 1600 mm. The square posts are made of steel tube 80 x 80 mm on floor plates, providing a sturdy structure. The height under the roof is 2500 mm. The roof is constructed with arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of aluminum tube struts, 40 x 60 mm, and gutters made of aluminum profile. The shelter features curved aluminum profile brackets and is equipped with Securit glass, 8 mm, on the sides and back. The glass is securely fastened using a brushed aluminum casting clamping system. It also includes a timetable display case (750 x 550 mm) and options for advertising such as a lightbox or display case "2000". The shelter is available in various RAL colors and is fire galvanized and coated for durability. It is mounted on floor plates.
Dimensions: Width: 2500 mm, Height: 2560 mm, Depth: 1600 mm
Execution: Painted according to our color palette.
Installation: For embedding.
- Technical Specifications:
- Width: 2500 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Square tube 80x80 hot-dip galvanized
- Color: Grey RAL 7044 (Seidengrau)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Side Cladding: None
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On floor plates
- Weight(kg): 194
- Accessories: INC-209147, INC-509041
Installation:
- Prepare the base for installation.
- Assemble the frame using the provided components.
- Install the side panels and back wall using the Securit glass.
- Mount the roof securely on the frame.
Payment Methods:
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
```
Main attributes Procity Waiting Hall Square Tube, without Side Panels, L 2500 mm
Shelters
Model Name
Malta-2.5
Width (W)
2500 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Silk Grey
Side Cladding
None
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
