Description Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

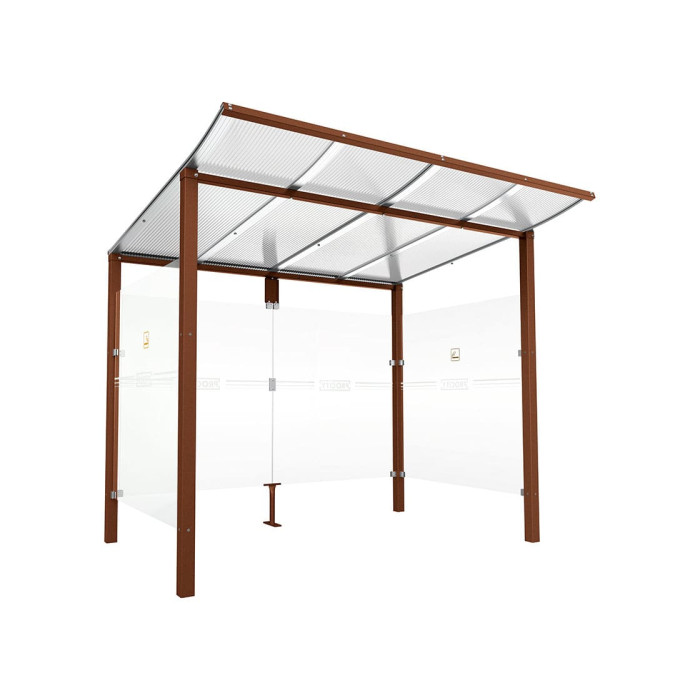

Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

The Procity Smoking Shelter Modulo protects users from inclement weather. With its simple and elegant style, this smoking shelter is a perfect fit for any environment. The shelter comes in two different lengths (2500 or 5000 mm), allowing it to be adapted to various needs. Optional accessories include handrails for added user comfort, cigarette symbol stickers (sold in pairs), and various ashtray solutions.

Two Lengths: 2500 or 5000 mm. Depth: 1990 mm. Height under the roof: minimum 1942, maximum 2100 mm. Square posts: Steel tube 70 x 70 mm. Roof: Anodized aluminum profiles, crossbars made of steel tube 40 x 40 mm, and UV-protected polycarbonate panels with a thickness of 10 mm. Front, side, and rear panels: 5 mm thick safety glass with safety signage. Finish: Hot-dip galvanized and painted according to our color palette. Mounting: By concreting.

Product Benefits

The Procity Smoking Shelter Modulo is available in different configurations, adaptable to various needs, and provides protection from inclement weather.

Technical Specifications

• Width: 2510 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel Tube 70x70
• Color: Corten-Effect Rust
• Roof Material: PC Sheet 10 mm (UV)
• Side and Rear Panel Material: Safety Glass 5 mm with Signage
• Assembly Condition: Disassembled
• Mounting: For Concreting
• Recommended Embedment Depth: 300 mm
• Weight (kg): 280
• Accessories: INC-209147, INC-529401

Installation

1. Prepare the foundation according to the dimensions of the smoking shelter.
2. Step-by-step assembly of the frame according to the provided instructions.
3. Attach the side and rear panels as well as the roof structure according to the technical specifications.
