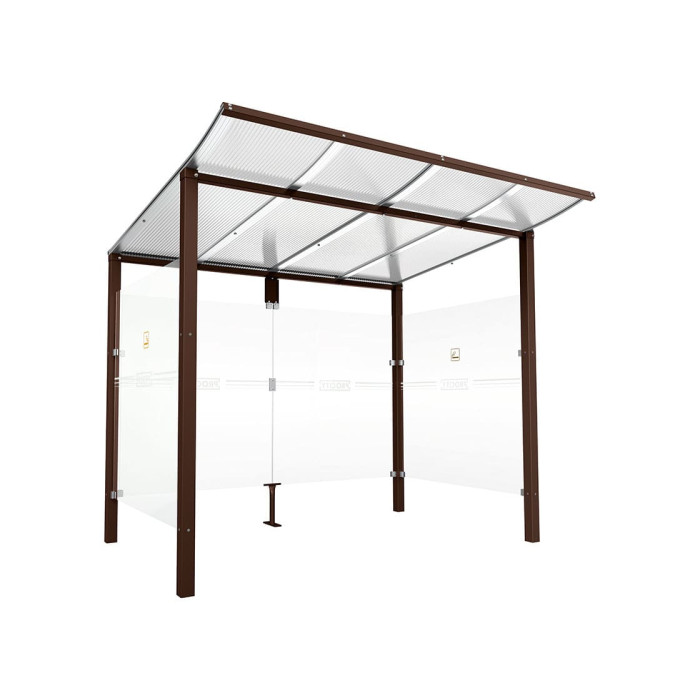

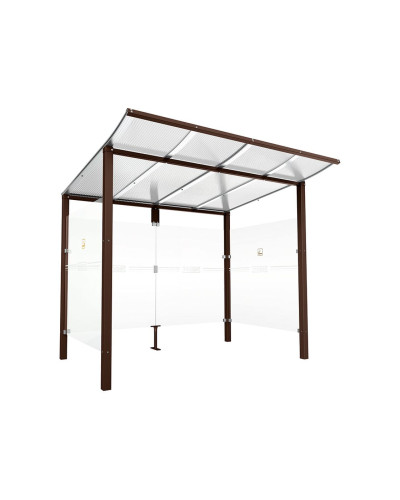

Description Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm
Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm
The Modulo smoking shelter protects users from inclement weather. With its simple and elegant style, this smoking shelter fits perfectly into any environment. The shelter is available in two different lengths (2500 or 5000 mm) to accommodate various needs. Optional accessories include a leaning rail for added user comfort, "cigarette" symbol stickers (sold in pairs), and various ashtray solutions.
Two Lengths: 2500 or 5000 mm. Depth: 1990 mm. Height under the roof: min. 1942, max. 2100 mm. Square Posts: Steel tube 70 x 70 mm. Roof: Anodized aluminum profiles, crossbars made of steel tube 40 x 40 mm, and 10 mm UV-treated polycarbonate panels. Front, side, and rear panels: 5 mm thick safety glass with safety signage. Finish: Hot-dip galvanized and painted according to our color palette. Mounting: By embedding in concrete.
Key Benefits
The Modulo smoking shelter is available in two lengths and offers protection from inclement weather. It is easy to assemble and can be customized to meet various needs.
Technical Specifications
- Width: 2510 mm
- Height: 2250 mm
- Depth: 2000 mm
- Frame Material: Steel Tube 70x70
- Color: Chocolate Brown
- Roof Material: 10 mm UV-treated PC Sheet
- Side and Rear Panel Material: 5 mm Safety Glass with Signage
- Assembly Condition: Disassembled
- Mounting: For Concreting
- Recommended Embedding Depth: 300 mm
- Weight(kg): 280
- Accessories: INC-209147, INC-529401
Installation
- Prepare the foundation according to the dimensions of the smoking shelter.
- Assemble the frame according to the provided instructions.
- Install the side and rear panels according to the technical specifications.
- Attach the roof according to the provided instructions.
About INCAPCORP
INCAPCORP is an official distributor of PROCITY products in Germany.
Payment Methods
We accept payments via Klarna, as well as credit card and bank transfer. Contact us for information on possible discounts.
Delivery and Geography
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries. Large items are delivered by DPD, GLS, or Raben.
For custom deliveries and bulk orders, please contact us for more information.
Main attributes Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm
Shelters
Model Name
Modulo-3.75
Width (W)
2510 mm
Height (H)
2250 mm
Depth (D)
2000 mm
Frame Material
Steel Tube 70x70
Roof Material
PC Sheet 10 mm (UV)
Colour
Chocolate Brown
Side Cladding
Without front panel
Mounting
For Concreting
Delivery Cond.
Disassembled
Accessories
INC-209147, INC-529401
Reviews about Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm
There are no reviews for this product.
