PROCITY Smoking Shelter Modulo - Buy online, buy delivery.

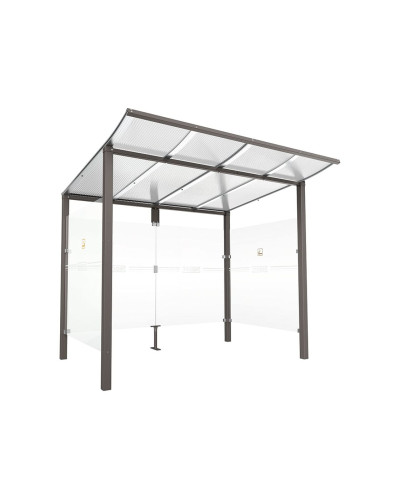

Description Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

The Procity Smoking Shelter Modulo protects users from inclement weather. Its simple and elegant style makes it a perfect fit for any environment. The shelter is available in two different lengths (2500 or 5000 mm) to accommodate various needs. Optional accessories include a leaning rail for added user comfort, "cigarette" symbol stickers (sold in pairs), and various ashtray solutions.

Two Lengths: 2500 or 5000 mm. Depth: 1990 mm. Height under the roof: min. 1942, max. 2100 mm. Square posts: Steel tube 70 x 70 mm. Roof: Anodized aluminum profiles, crossbars made of steel tube 40 x 40 mm, and polycarbonate panels alveolar thickness 10 mm, UV-protected. Front, side, and rear cladding: 5 mm thick safety glass with safety signage. Finish: Hot-dip galvanized and painted according to our color palette. Mounting: By concreting.

Key Benefits

The Procity Smoking Shelter Modulo offers a robust construction and high-quality materials that ensure durability and weather resistance. The painted finish according to our color palette allows the shelter to blend seamlessly with its surroundings.

Technical Specifications

• Width: 2510 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel Tube 70x70
• Color: Procity Gray (Anthracite)
• Roof Material: PC Sheet 10 mm (UV)
• Side and Rear Wall Material: Safety Glass 5 mm with Signage
• Assembly Condition: Disassembled
• Mounting: For Concreting
• Recommended Embedment Depth: 300 mm
• Weight(kg): 280
• Accessories: INC-209147, INC-529401

Installation

1. Prepare the foundation according to the dimensions of the smoking shelter.
2. Assemble the steel frame following the installation manual.
3. Attach the side and rear panels as well as the roof panel.
