Description Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

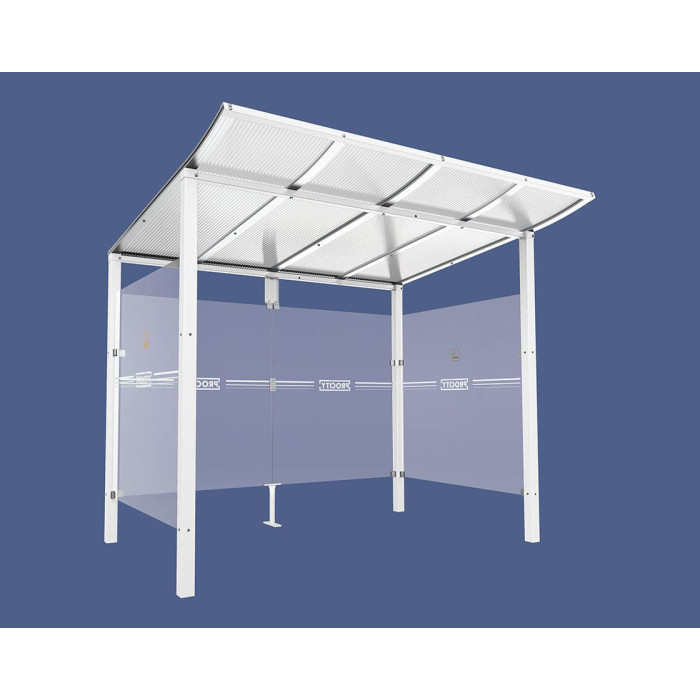

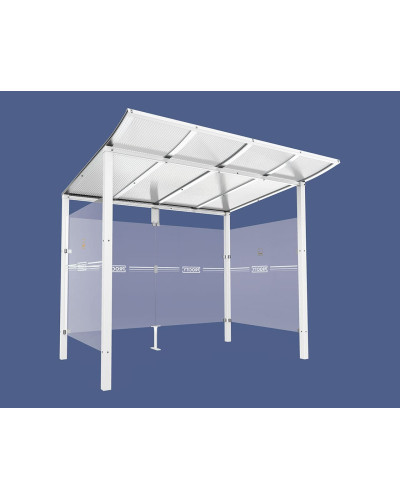

The Procity Smoking Shelter Modulo protects users from inclement weather. Its simple and elegant design makes it a perfect fit for any environment. The shelter is available in two different lengths (2500 or 5000 mm) to accommodate various needs. Optional accessories include a leaning rail for added user comfort, cigarette symbol stickers (sold in pairs), and various ashtray solutions.

Two Lengths: 2500 or 5000 mm. Depth: 1990 mm. Height under the roof: min. 1942, max. 2100 mm. Square posts: Steel tube 70 x 70 mm. Roof: Anodized aluminum profiles, crossbars made of steel tube 40 x 40 mm, and UV-treated 10 mm thick polycarbonate panels. Front, side, and rear panels: 5 mm thick safety glass with safety signage. Finish: Hot-dip galvanized and painted according to our color palette. Mounting: Through concreting.

Key Benefits

The Procity Smoking Shelter Modulo offers an elegant solution for protection against inclement weather and can be tailored to different needs with its various lengths.

Detailed Technical Specifications

• Width: 2510 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel Tube 70x70
• Color: Pure White
• Roof Material: UV-treated PC Sheet 10 mm
• Side and Rear Panel Material: Safety Glass 5 mm with Signage
• Assembly Condition: Disassembled
• Mounting: For Concreting (Recommended Embedment Depth: 300 mm)
• Weight(kg): 280
• Accessories: INC-209147, INC-529401

Installation

1. Prepare the foundation according to the dimensions of the smoking shelter.
2. Assemble the frame following the provided instructions.
3. Install the side and rear panels as per the technical specifications.
4. Install the roof according to the provided instructions.
