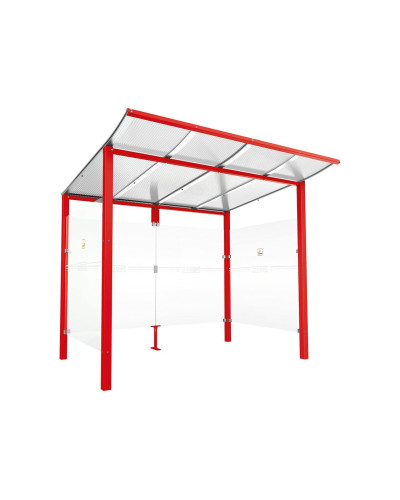

Description Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

Procity Smoking Shelter Modulo, without Front Panel, Depth 1990 mm, Length 2510 mm

The Modulo smoking shelter protects users from inclement weather and its simple and elegant style makes it a perfect fit for any environment. The shelter is available in two different lengths (2500 or 5000 mm) and can be customized to suit various needs. Optional accessories include a leaning rail for added user comfort, cigarette symbol stickers (sold in pairs), and various ashtray solutions.

Two lengths are available: 2500 or 5000 mm. The depth is 1990 mm, and the height under the roof varies between a minimum of 1942 and a maximum of 2100 mm. The square posts are made of steel tube (70 x 70 mm). The roof consists of anodized aluminum profiles, crossbars made of steel tube (40 x 40 mm), and UV-treated 10 mm thick polycarbonate alveolar sheets. The front, side, and rear panels are made of 5 mm thick safety glass with safety signage. The smoking shelter is hot-dip galvanized and painted according to our color palette. It is installed by concreting.

Key Benefits

The Procity Smoking Shelter Modulo stands out for its dimensions (Width: 2510 x Height: 2250 x Depth: 2000 mm) and is painted according to our color palette. It is delivered without a front panel and is intended for concreting.

Detailed Technical Specifications

• Width: 2510 mm
• Height: 2250 mm
• Depth: 2000 mm
• Frame Material: Steel Tube 70x70
• Color: Traffic Red
• Roof Material: PC Sheet 10 mm (UV)
• Side and Rear Panel Material: Safety Glass 5 mm with Signage
• Assembly State: Disassembled
• Mounting: For Concreting
• Recommended Embedment Depth: 300 mm
• Weight(kg): 280
• Accessories: INC-209147, INC-529401

Installation

1. Prepare the ground for concreting.
2. Assemble the frame according to the instructions.
3. Install the side and rear panels following the instructions.
4. Attach the roof according to the instructions.
