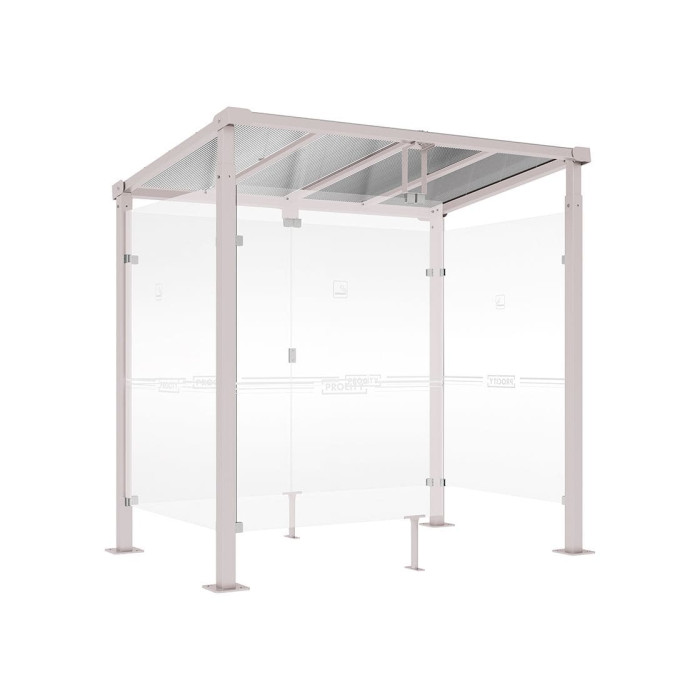

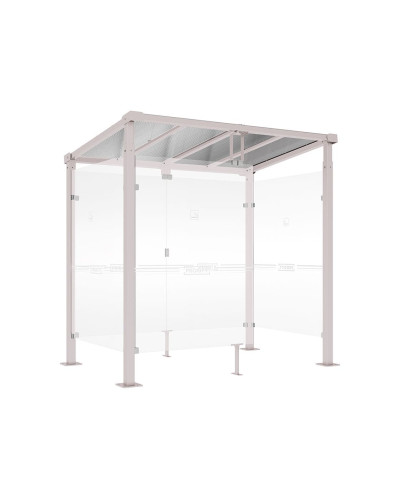

Description Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm.
Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm
A stylish smoking shelter that is easily identifiable with its optional wind protection and signage. The smoking shelter has a length of 2520 mm and a depth of 1560 mm. It provides an access width of 1000 mm and a height of 2600 mm. The posts are made of steel tube measuring 80 x 80 mm and are fixed on base plates. The roof structure consists of two struts made of aluminum tube (60 x 60 mm) and is covered with 10 mm thick UV-resistant transparent polycarbonate sheeting. The front, side, and rear cladding are made of 8 mm thick safety glass with safety signage. The cladding is secured by a clamping system to allow for easy replacement in case of vandalism. The smoking shelter is hot-dip galvanized and painted according to our color palette.
Key Benefits
The smoking shelter offers a width of 2500 mm, a height of 2600 mm, and a depth of 1560 mm. It is painted according to our color palette and suitable for easy installation for embedding.
Detailed Technical Specifications
- Width: 2520 mm
- Height: 2606 mm
- Depth: 1824 mm
- Frame Material: Steel Posts 80x80 Galv.
- Color: Silk Grey
- Roof Material: PC Sheet 10 mm clear (UV)
- Side and Rear Wall Material: Safety Glass 8 mm w/ Sign
- Assembly Condition: Disassembled
- Fixation: On Base Plates
- Recommended Embedding Depth: -
- Weight (kg): 445
- Accessories: INC-209147, INC-209116, INC-529401
Installation
- Prepare the foundation according to the dimensions of the smoking shelter.
- Assemble the steel tube frame according to the instructions.
- Secure the side and rear cladding.
- Install the roof structure and the polycarbonate sheeting.
About INCAPCORP
INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept payments via Klarna, credit card, PayPal, and bank transfer. We offer attractive discounts for bulk orders.
Delivery & Geography
We deliver our products in Germany and EU countries using reputable shipping providers such as DPD, GLS, and Raben. Large volume shipments are delivered at favorable rates. Our products are available in Germany, Austria, Switzerland, Liechtenstein, the Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm.
Shelters
Model Name
Milano-3.75
Width (W)
2520 mm
Height (H)
2606 mm
Depth (D)
1824 mm
Frame Material
Steel Posts 80x80 Galv.
Roof Material
PC Sheet 10 mm clear (UV)
Colour
Silk Grey
Side Cladding
Not applicable (N/A)
Mounting
On Base Plates
Delivery Cond.
Disassembled
Accessories
INC-209147, INC-209116, INC-529401
