Description Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm.
Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm

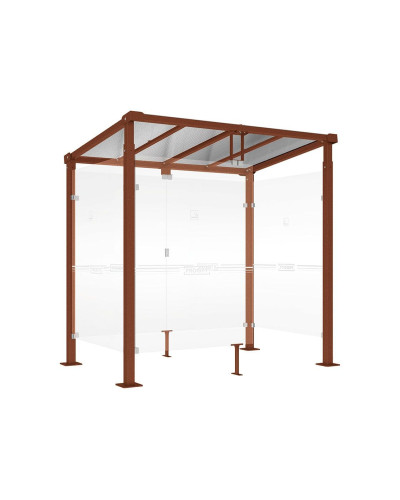

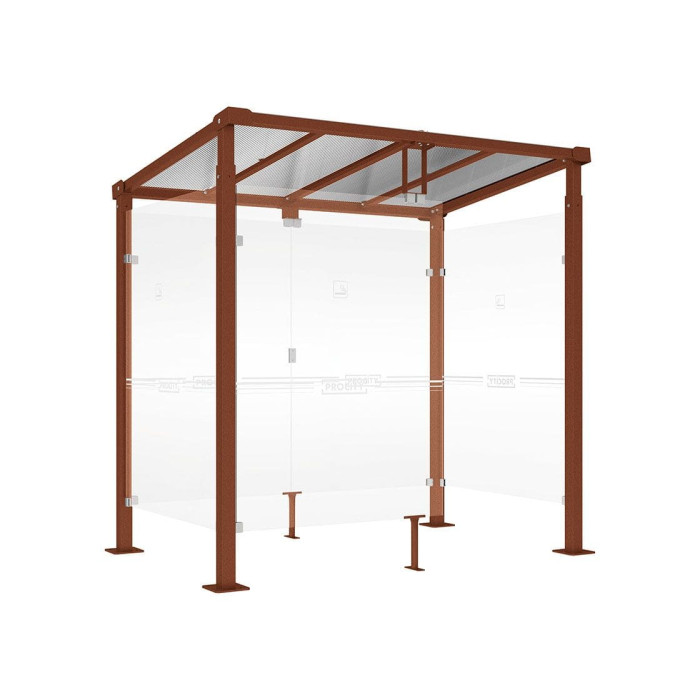

A stylish smoking shelter that is easily identifiable with its optional wind protection and signage. This smoking shelter is available in lengths of 2500 mm or 5000 mm with an access width of 1000 mm. The depth is 1560 mm, and the height is 2600 mm. The posts are made of steel tube 80 x 80 mm on base plates. The roof structure consists of two struts made of aluminum tube (60 x 60 mm), and the roofing is made of 10 mm thick UV-resistant transparent polycarbonate multiwall sheets. The front, side, and rear cladding are made of 8 mm thick safety glass with safety signage. The cladding is secured by a clamping system for easy replacement in case of vandalism. The smoking shelter is hot-dip galvanized and painted according to our color palette.
Key Benefits
The smoking shelter offers a width of 2520 mm, a height of 2606 mm, and a depth of 1824 mm. It is painted according to our color palette and suitable for easy installation for embedding.
Technical Specifications
- Width: 2520 mm
- Height: 2606 mm
- Depth: 1824 mm
- Frame Material: Steel Posts 80x80 Galv.
- Color: Corten-Effect Rust
- Roofing Material: PC Sheet 10 mm clear (UV)
- Side and Rear Wall Material: Safety Glass 8 mm w/ Sign
- Assembly Condition: Disassembled
- Mounting: On Base Plates
- Recommended Embedding Depth: -
- Weight(kg): 445
- Accessories: INC-209147, INC-209116, INC-529401
Installation
- Prepare the foundation according to the technical specifications.
- Assemble the steel tube frame according to the provided instructions.
- Attach the side and rear walls and secure the cladding.
- Install the roof as per the instructions.
About INCAPCORP
INCAPCORP is an official distributor of PROCITY products, offering high-quality solutions for public spaces.
Payment Methods
We accept various payment methods, including Klarna. Contact us for more information on discounts and payment terms for bulk orders.
Delivery & Geography
We offer deliveries within Germany and across the EU. Our delivery partners include DPD, GLS, Raben, and others. Contact us for information on delivery times and shipping costs for bulk orders.
Geography: Our products are actively used in Germany, Austria, Switzerland, Liechtenstein, the Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm.
Shelters
Model Name
Milano-3.75
Width (W)
2520 mm
Height (H)
2606 mm
Depth (D)
1824 mm
Frame Material
Steel Posts 80x80 Galv.
Roof Material
PC Sheet 10 mm clear (UV)
Colour
Corten-Effect Rust
Side Cladding
Not applicable (N/A)
Mounting
On Base Plates
Delivery Cond.
Disassembled
Accessories
INC-209147, INC-209116, INC-529401
