Description Procity Waiting Hall Venice, Lightbox Mid-foot with 1 Side Panel, L 5240 mm

PROCITY WarteHalle Venedig, Leuchtkasten Mittelfuß mit 1 Seitenverkleidung, L 5240 mm

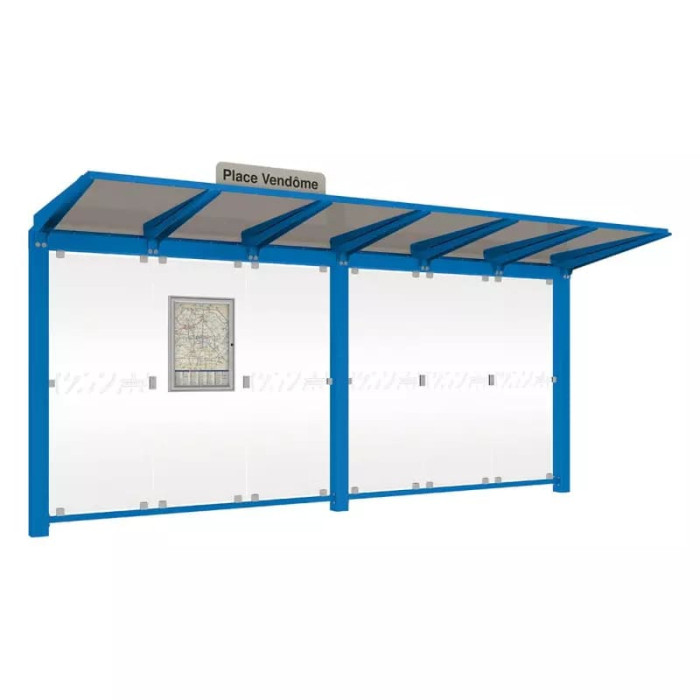

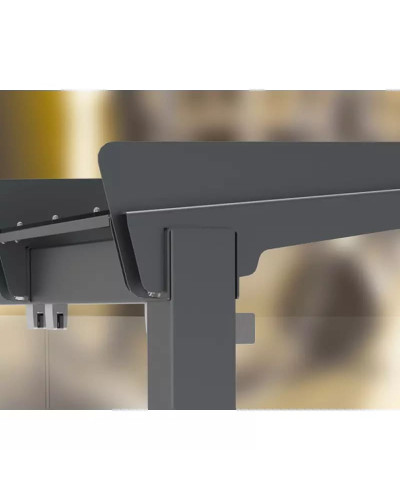

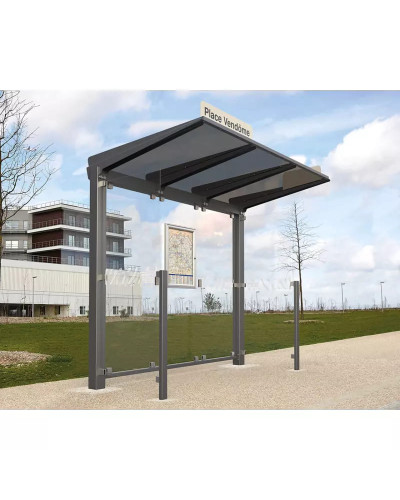

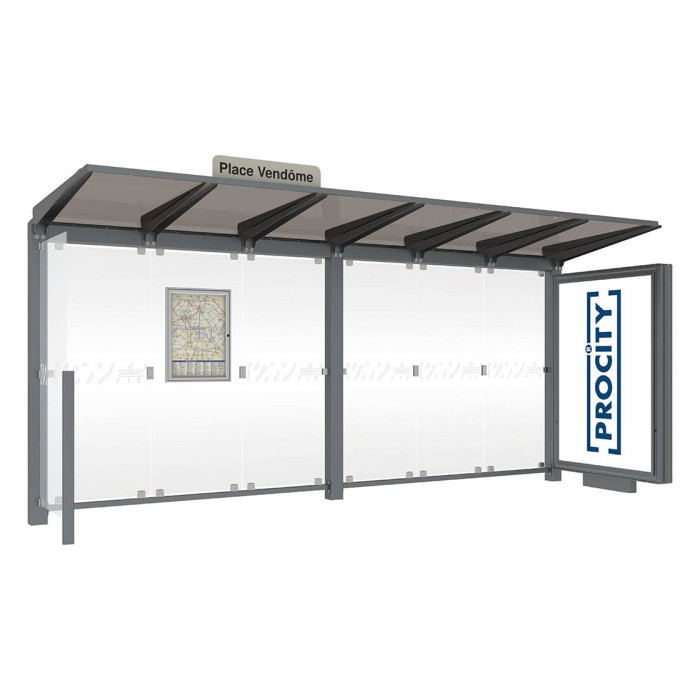

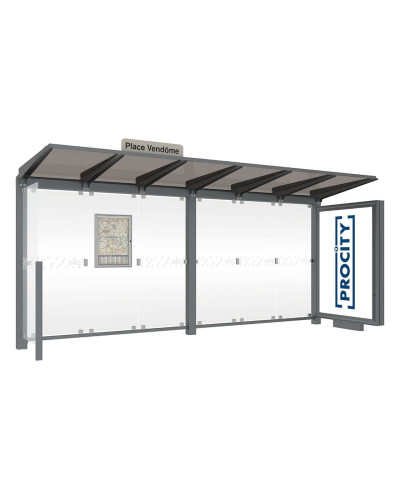

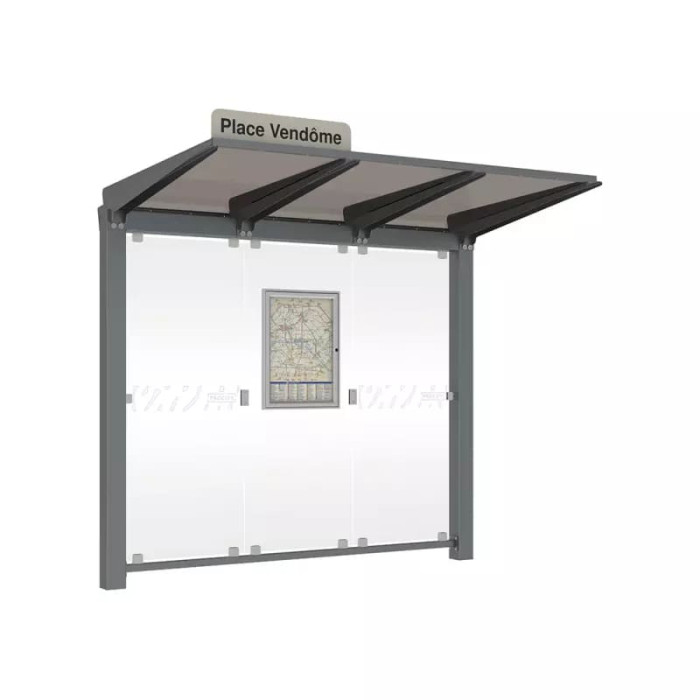

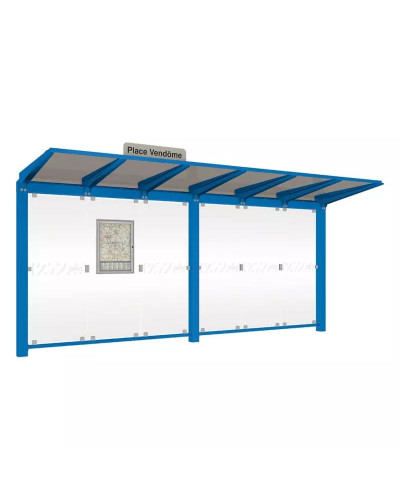

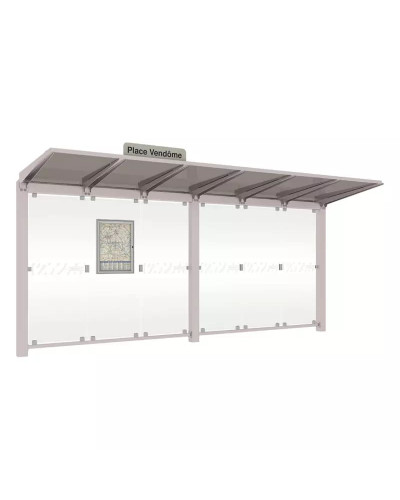

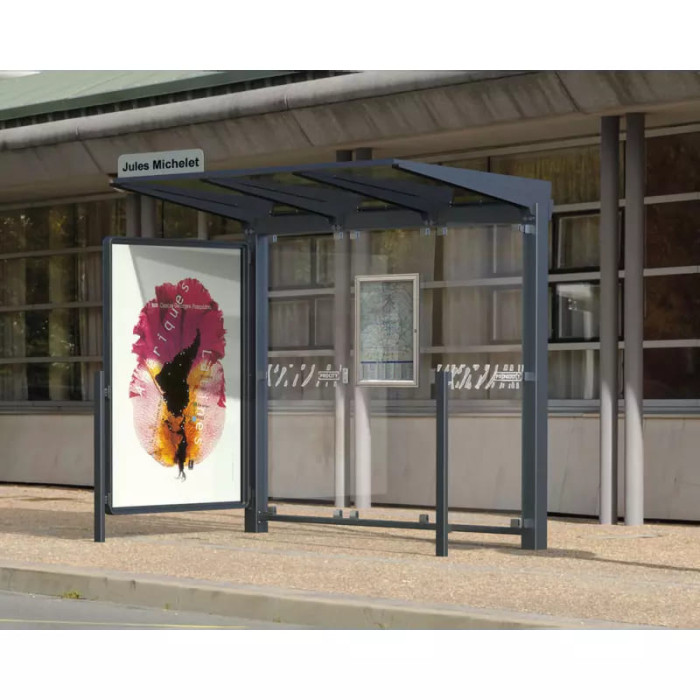

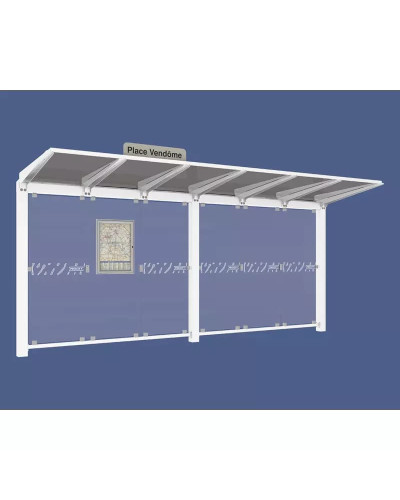

The PROCITY WarteHalle Venedig is a freestanding shelter with a unique style. The rear wall cladding, supported by two individual posts, ensures unparalleled brightness. It comes in two lengths: 2500 or 5000 mm with a total depth of 1500 mm. The square posts are made of steel tube 120 x 120 mm. The height under the roof ranges from a minimum of 2250 to a maximum of 2390 mm. The roof is made of bronze-colored polycarbonate, 8 mm thick, with UV protection treatment. The roof frame consists of crossbars made of hot-dip galvanized steel. The side and rear cladding are made of Securit glass, 8 mm thick. The cladding is fixed using a clamping system made of brushed aluminum casting. The bus stop sign is made of galvanized steel sheet, painted in RAL 9006 with dimensions of Height 180 x Width 815 mm. The timetable display case measures 750 x 550 mm (4 A4), 30 mm deep, made of anodized aluminum. For information and advertising, it includes a lightbox (display area size: 1710 x 1160 mm) or a display case "2000" (display area size: 1750 x 1200 mm). It is available in various RAL colors for coating and is designed for embedding during installation.

Product Benefits: The PROCITY WarteHalle Venedig provides a spacious waiting area with a lightbox and side cladding. It is designed for embedding during installation and is painted according to our color palette.

Technical Specifications

• Width: 5240 mm
• Height: 2422 mm
• Depth: 1520 mm
• Frame Material: Steel tube 120x120
• Color: Red RAL 3004 (Purpurrot)
• Roof Material: PC Bronze 8 mm (UV)
• Wall Material: Securit glass 8 mm with sign
• Side Cladding: 1 Seitenverkl.
• Lightbox: Yes
• Display Case: Yes
• Installation Depth: 665 mm
• Mounting Condition: Disassembled
• Fixation: For embedding
• Weight(kg): 1015
• Accessories: INC-209147

Installation

1. Prepare the base for embedding.
2. Assemble the frame according to the provided instructions.
3. Install the wall/panel cladding securely.
4. Mount the roof on the structure.
