Procity Smoking Shelter Milano Purchase - Delivery in Online Shop

Description Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm.

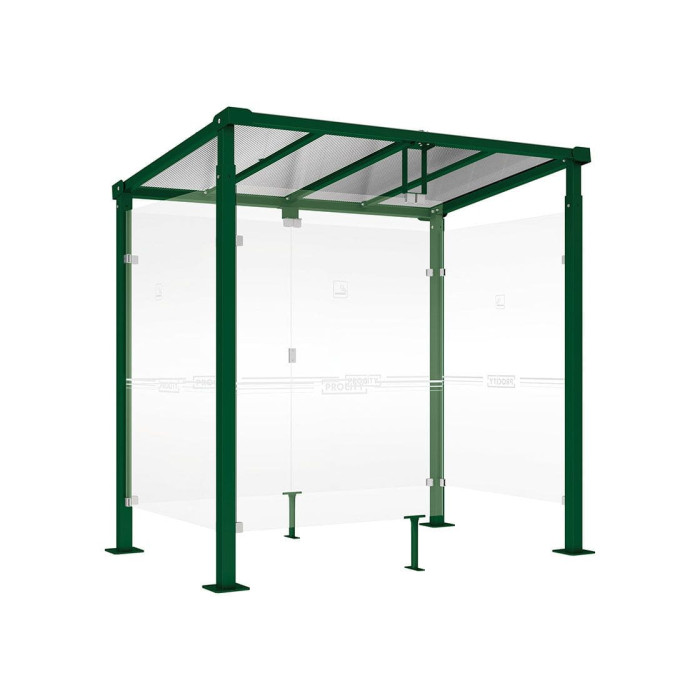

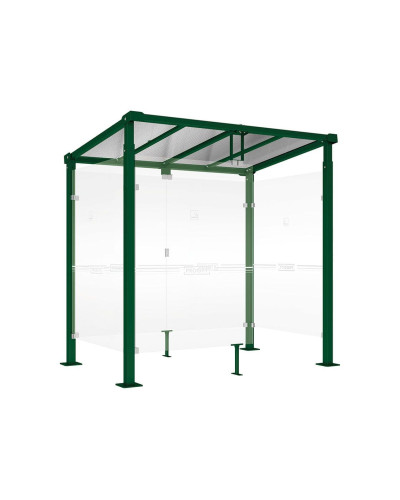

Procity Smoking Shelter Milano, Depth 1560 mm, Length 2520 mm

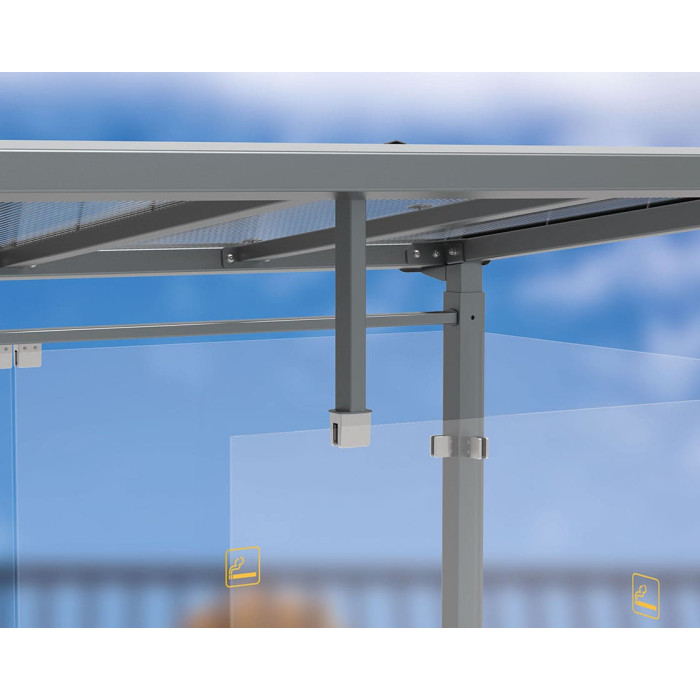

A stylish smoking shelter that is easily recognizable with its optional wind protection and signage. This smoking shelter has a length of 2520 mm, a depth of 1560 mm, and a height of 2600 mm. The posts are made of steel tube 80 x 80 mm on base plates. The roof structure consists of two beams made of aluminum tube, 60 x 60 mm, and the roofing is made of 10 mm thick UV-resistant transparent polycarbonate multiwall sheets. The front, side, and rear cladding are made of 8 mm thick safety glass with safety signage. The cladding is attached by a clamping system to allow for easy replacement in case of vandalism. The smoking shelter is hot-dip galvanized and painted according to our color palette.

Key Benefits

This smoking shelter offers a width of 2520 mm, a height of 2606 mm, and a depth of 1824 mm. It is painted according to our color palette and suitable for embedding.

Detailed Technical Specifications

• Width: 2520 mm
• Height: 2606 mm
• Depth: 1824 mm
• Frame Material: Steel Posts 80x80 Galv.
• Color: Moss Green
• Roofing Material: PC Sheet 10 mm clear (UV)
• Side and Rear Cladding Material: Safety Glass 8 mm w/ Sign
• Assembly Condition: Disassembled
• Attachment: On Base Plates
• Recommended Embedding Depth: -
• Weight(kg): 445
• Accessories: INC-209147, INC-209116, INC-529401

Installation

1. Prepare the foundation according to the dimensions of the smoking shelter.
2. Assemble the steel frame as per the technical specifications.
3. Install the side and rear cladding as well as the roof structure.
