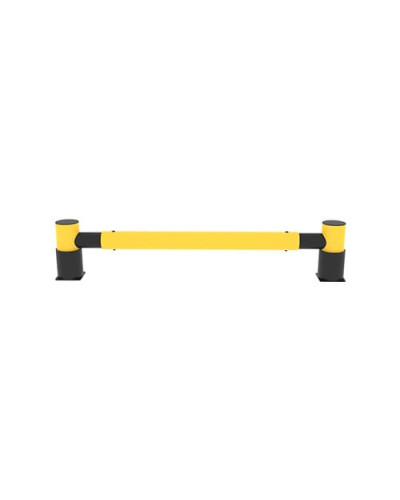

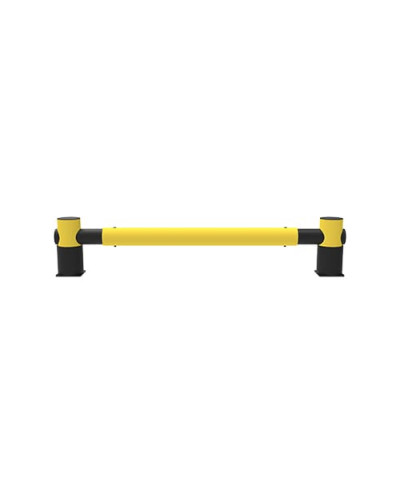

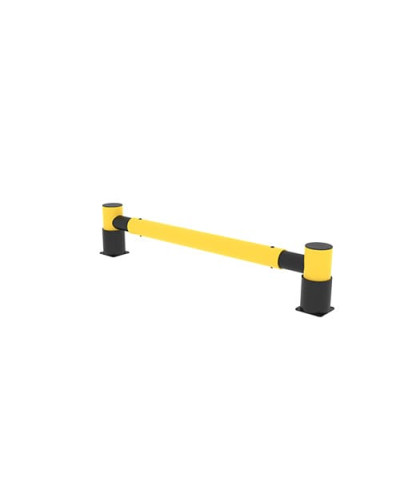

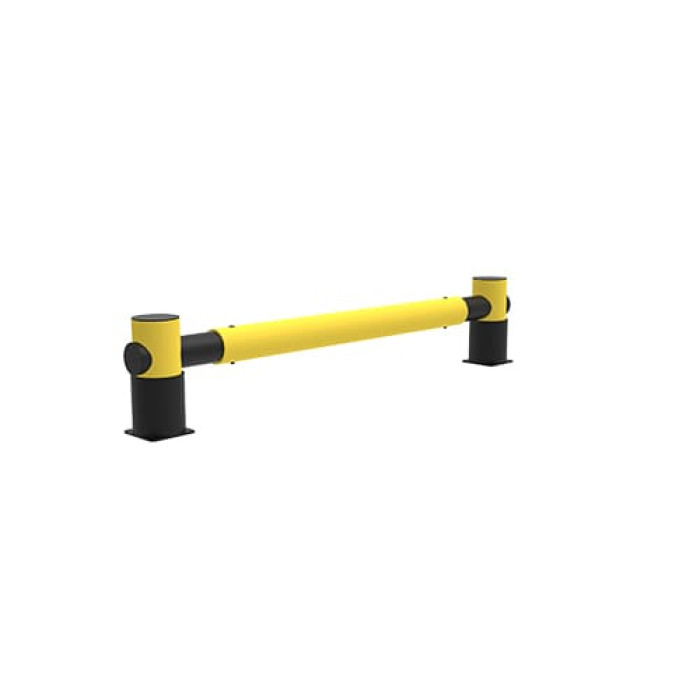

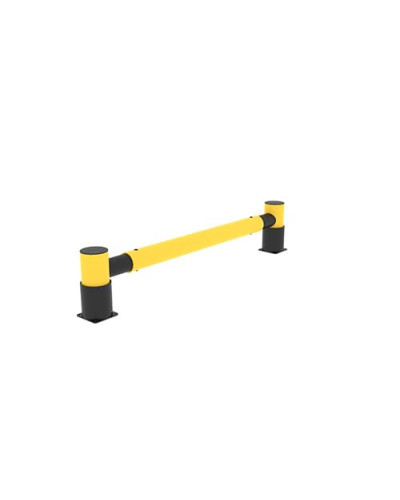

Description Rack-end barrier Golf single rail, 2.5 m mm, TÜV tested

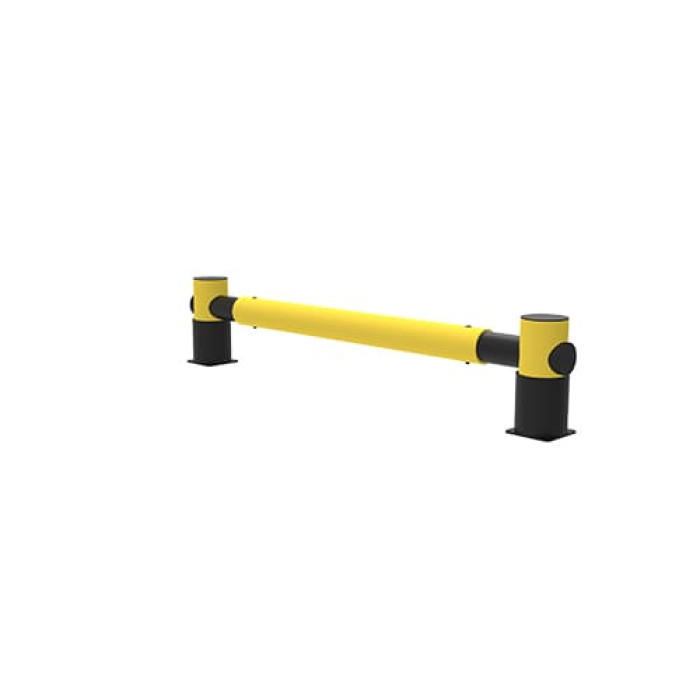

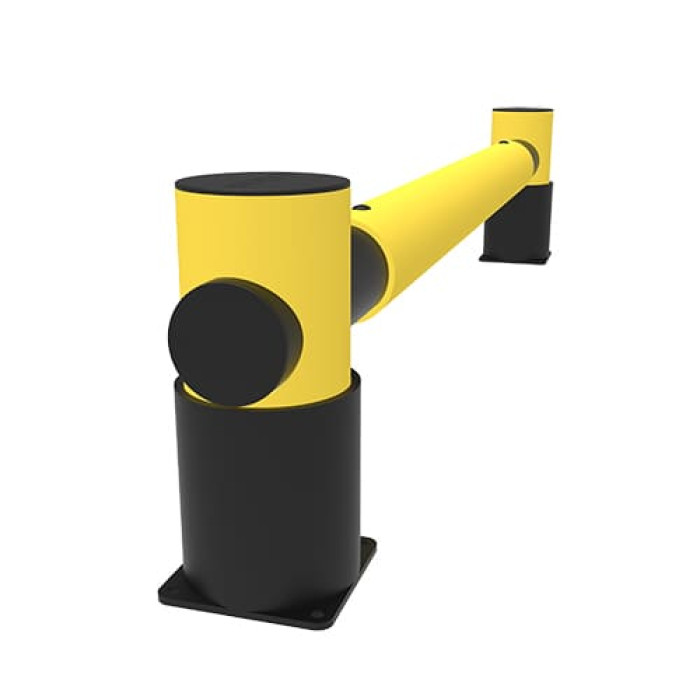

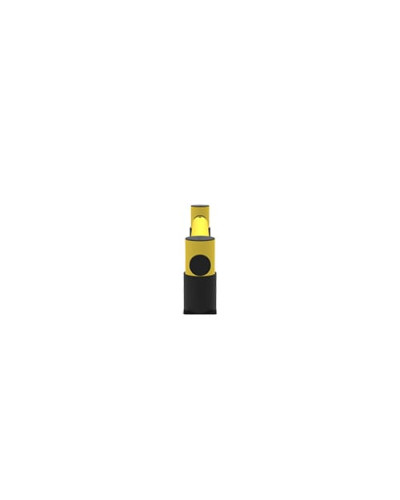

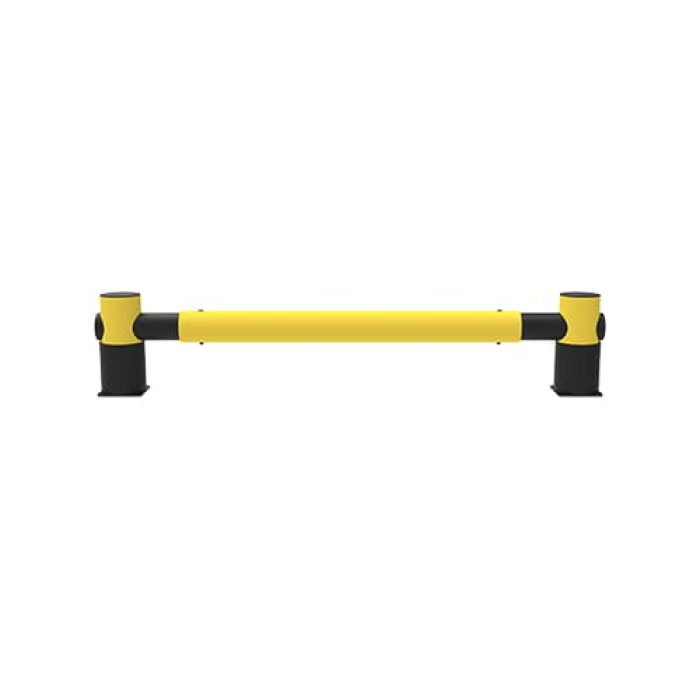

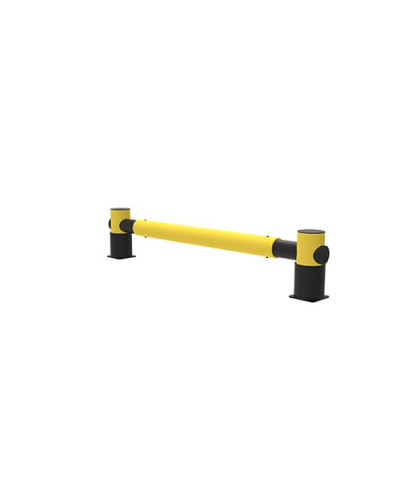

Flexible Rack-end barrier Golf, single rail, 2.5 m wide – your reliable protection for shelves in Germany and Europe
The flexible INCAPCORP Rack-end barrier GOLF provides optimal collision protection for the ends of your shelves in warehouses, production facilities, and other operational areas – both indoors and outdoors. This robust and flexible system is specifically designed to minimize costly damage to your shelves and the associated downtime. Thanks to its modular design and easy installation, the GOLF Rack-end barrier is the ideal solution for companies throughout Germany and Europe, from Berlin to Hamburg to Munich and beyond.
Technical Specifications:
• Material: Polyethylene
• Color: yellow - black
• Width (mm): 2538
• Height (mm): 500
• Depth/Length (mm): 225
• Net weight (kg): 38.61
• Width without base plate (mm): 2538
• Depth without base plate (mm): 225
• Area of use: Indoor and outdoor use
• Installation location: Paved floor
• Installation method: Bolt-on installation

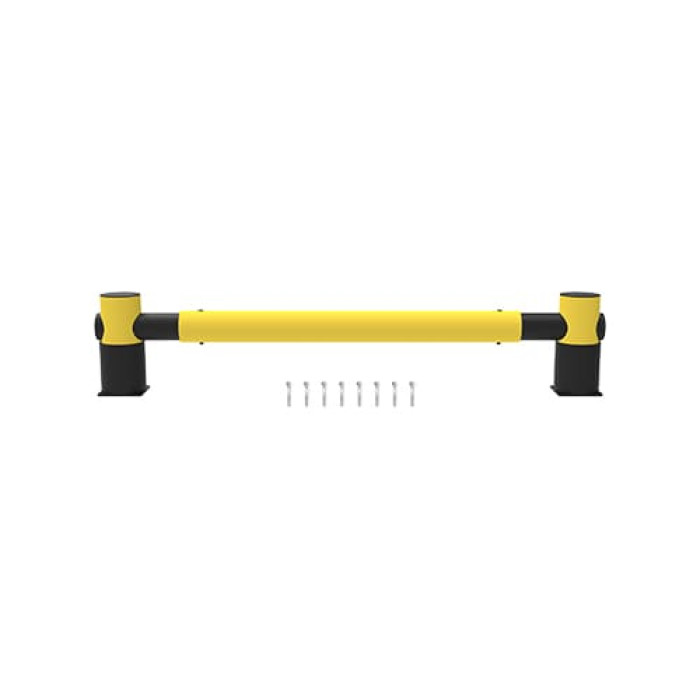

• Delivery: Partially disassembled
• Number of mounting holes: 8
• Fasteners included: M12 x 80 mm concrete screws

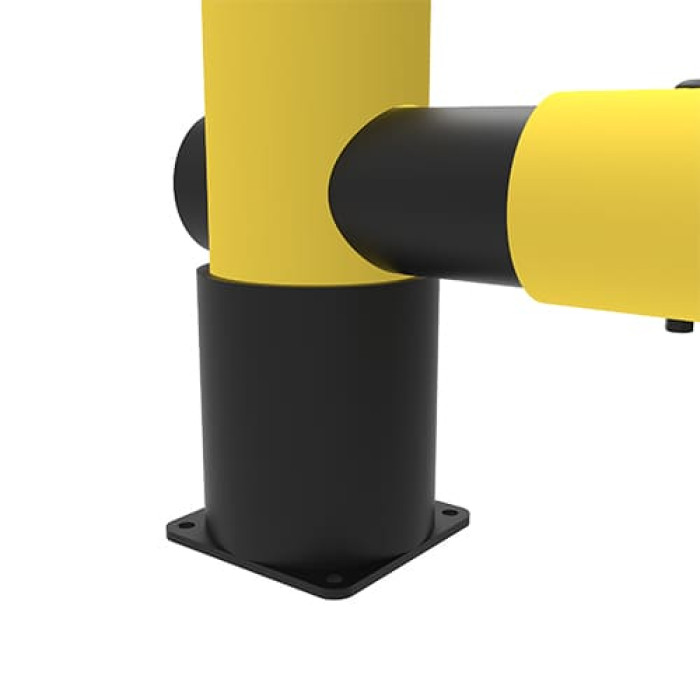

• Base plate width (mm): 225
• Base plate depth (mm): 225
• Base plate height (mm): 10
• Distance between base plates (mm): 2050
• Base plate color: black
• Tested resistance (joules):
o IMPACT ZONE 1: 90 degrees 4,000 J
o IMPACT ZONE 2: 90 degrees 8,000 J; 67.5 degrees 9,400 J; 45 degrees 16,000 J; 22.5 degrees 54,800 J
• Equivalent vehicle weight (kg): 3,560 kg
• Vehicle impact speed (km/h): 5.4 km/h
• Deformation at maximum permissible load (mm): 250
• Chemical resistance: high-ISO/TR 10358
• Operating temperature range: -40 degrees to +50 degrees
• CO2 / m³: 20 kg
• Recyclability: 100%
• Warranty: 5 years
• Test seal / approval: TÜV-GS certified PAS 13: 2017 Chapter 7/7.8
Important note: Please note that when ordering this product, shipping costs for bulky items will be charged.
How the flexible INCAPCORP GOLF Rack-end barrier protects your shelves:
The flexible INCAPCORP GOLF Rack-end barrier acts as an effective plant security system, protecting the sensitive ends of your warehouse shelves from damage caused by forklifts and other internal vehicles. Unlike rigid collision protection systems, the GOLF shelf end protection is flexible and effectively absorbs impact energy without directly transferring it to the shelf. This significantly reduces the risk of structural damage to the shelf, thus contributing to the long-term safety and profitability of your operation.
Who is the flexible INCAPCORP GOLF Rack-end barrier suitable for?
This high-quality Rack-end barrier is the perfect solution for:
• Warehouse operators in Germany and Europe who want to protect their shelves from collision damage.
• Logistics companies that value smooth and safe operations.
• Manufacturing companies that need to secure their storage areas within their production halls.
• Companies that want to protect their investments in shelving systems for the long term.
Installing the flexible GOLF Rack-end barrier system results in:
• Reduction in repair costs for damaged shelves.
• Minimization of downtime due to damaged or unstable shelving systems.
• Increased safety for warehouse employees.
• Retention of the value of your shelving investment.
Areas of application and benefits of the flexible INCAPCORP GOLF Rack-end barrier system:
The flexible INCAPCORP GOLF Rack-end barrier system has a wide range of applications in:
• Warehouses of all types, from high-bay warehouses to block storage.
• Production facilities for securing storage areas and material buffer zones.
• Shipping centers for protecting shelves in picking and packing areas.
• Workshops with storage of materials and tools.
The benefits at a glance:
• Effective impact protection: Absorbs impact forces and protects shelves from damage.
• Flexible material: Special plastic that flexes and returns to its original shape.
• Modular system: Quick and easy assembly with screw connections.
• TÜV-tested safety: Meets the highest safety standards (TÜV-GS certified PAS 13: 2017 Chapter 7/7.8).
• Robust and durable: Resistant to chemicals and temperature fluctuations (-40°C to +50°C).
• For indoor and outdoor use: Versatile.
• Low maintenance: No direct contact with the shelf, therefore low maintenance requirements.
• Environmentally friendly: Made from 100% recyclable polyethylene.
• Mounting hardware included: M12 x 80 mm concrete screws included.
• 5-year warranty: Trust the quality of INCAPCORP.
What is the purpose of the flexible Golf single rail Rack-end barrier?
The flexible Golf single rail Rack-end barrier is primarily designed to protect the vulnerable ends of your single-row shelving systems from damage caused by collisions with internal transport equipment. It forms a physical barrier that absorbs impact energy, preventing the shelf structure from being compromised. This contributes significantly to warehouse safety and helps prevent costly repairs and downtime.
How to order and pay for your flexible Golf single rail Rack-end barrier in the INCAPCORP online shop:
Ordering your flexible Golf single rail Rack-end barrier at INCAPCORP.DE is easy and secure:
1. Navigate to the product page for the "Flexible Golf single rail Rack-end barrier, 2.5 m wide."
2. Add the desired quantity of the product to your shopping cart.
3. Go to the shopping cart and review your selection.
4. Click "Checkout."
5. Enter your billing and shipping address.
6. Select your preferred payment method (e.g., PayPal, credit card, Sofortüberweisung, etc.).
7. Review your order and shipping costs (please note that shipping costs for bulky height restrictions will be charged for this item).
8. Complete your order.
After your order has been successfully placed, you will receive a confirmation email. We will process your order promptly and ensure fast delivery to any city in Germany and the EU, whether you are based in Berlin, Paris, Rome, or Madrid.
How to install your flexible Rack-end barrier for Golf single rail:
The flexible Rack-end barrier for Golf single rail is designed for easy Rack-assembly:
1. Area of use: Suitable for indoor and outdoor use.
2. Installation location: Must be on a solid floor (e.g., concrete).
3. Installation method: Installation is done by bolting the base plates.
4. Delivery: The Rack-end barrier is delivered partially disassembled.
5. Fastening: The required fastening materials (M12 x 80 mm concrete screws) are included in the delivery.
6. Preparation: Position the end posts so that the distance between the base plates is approximately 2050 mm and the protective effect is optimal. Mark the drill holes (8 per unit).
7. Drilling: Drill holes at the marked locations according to the diameter and length of the supplied concrete screws.
8. Fastening: Insert the dowels and screw the base plates of the end posts firmly to the floor.
9. Pipe installation: Insert the flexible pipe between the two end posts.
Thanks to the sophisticated modular system, assembly is quick and easy.
Why our customers recommend the flexible INCAPCORP GOLF Rack-end barrier:
Our customers throughout Germany and Europe value the flexible INCAPCORP GOLF Rack-end barrier for the following reasons:
• High level of protection: Reliable protection against collision damage.
• Easy installation: Quick and uncomplicated assembly.
• Robust construction: Durable and resilient.
• Flexibility: Effectively absorbs shocks.
• TÜV-tested safety: Guarantees the highest quality standards.
• Good value for money: An investment that quickly pays for itself.
• Reliable shipping: Fast delivery throughout Germany and the EU.
Note: The INCAPCORP online store reserves the right to unilaterally change the appearance and description of the product. These changes do not affect the consumer properties of the product.
The flexible INCAPCORP GOLF Rack-end barrier is innovative protection for your valuable shelving systems. Invest in safety and cost-effectiveness – order now!
