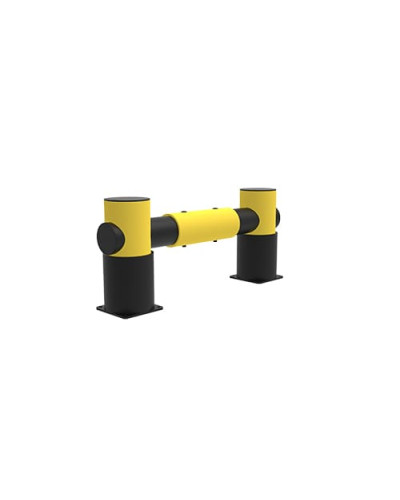

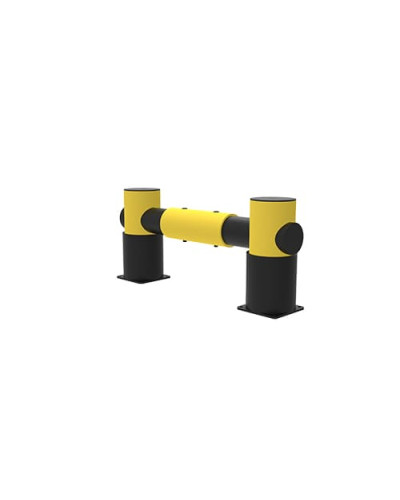

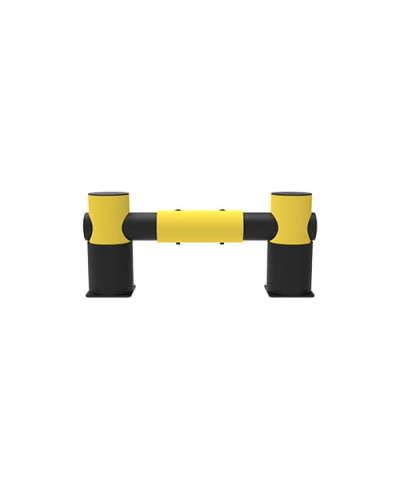

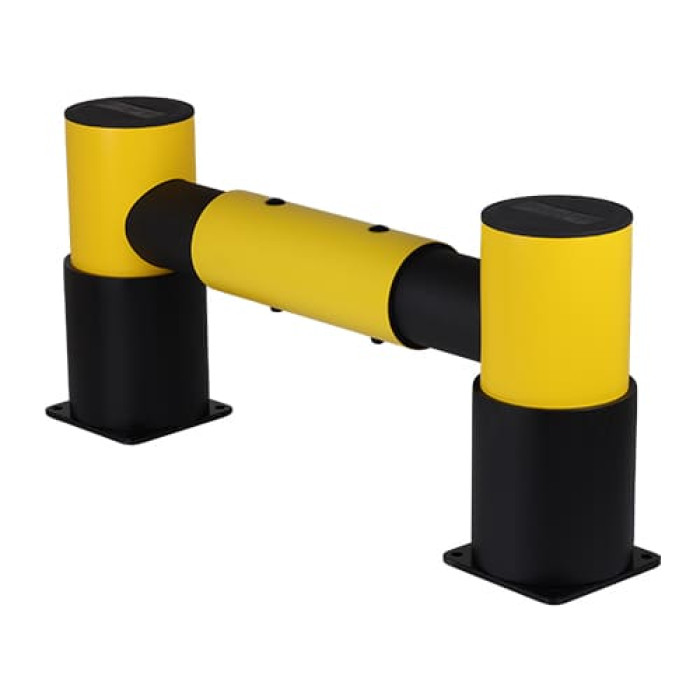

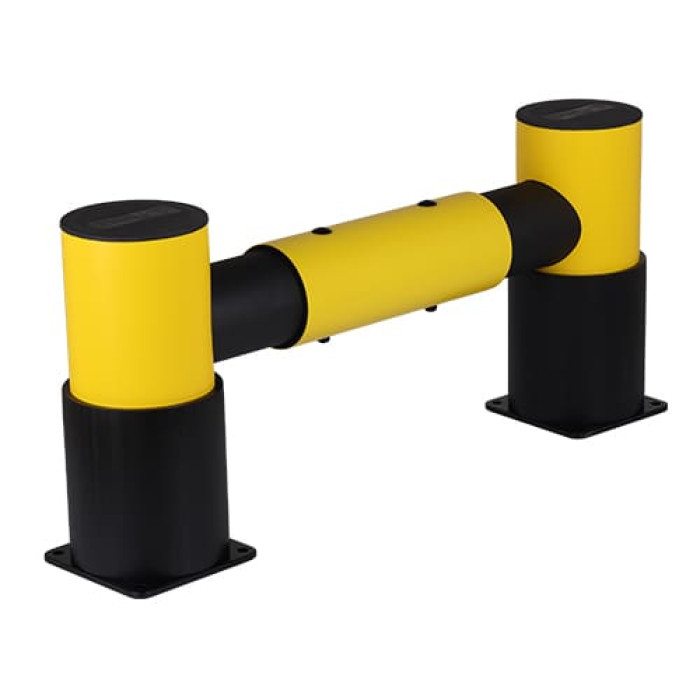

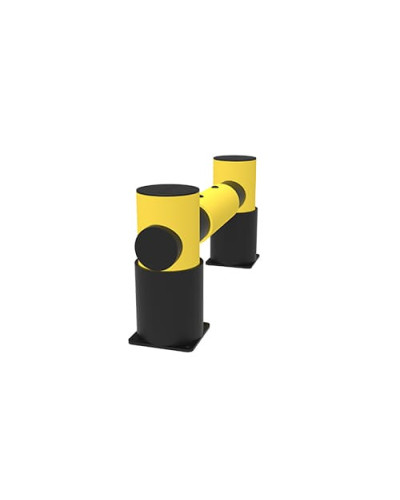

Description Rack-end barrier Golf single rail, 1100 mm, TÜV tested
Rack-end barrier Golf single rail, 1100 mm – your robust protection for rack ends (TÜV tested)
Reliably protect the vulnerable ends of your shelving systems from collision damage with the flexible Rack-end barrier Golf single rail rack end protection. This robust protection system was specially developed for use in indoor and outdoor storage areas and offers effective protection against collisions with forklifts and other industrial trucks throughout Germany and Europe.

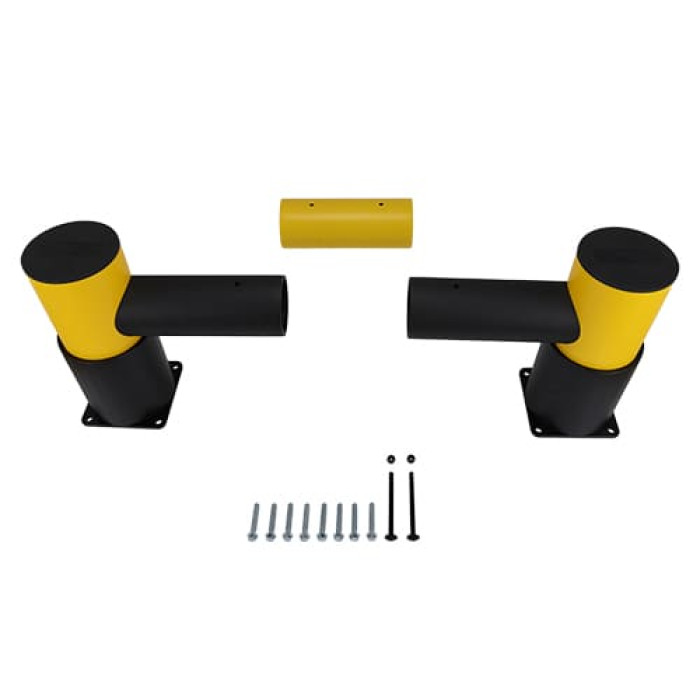

Scope of delivery:
• 2 x end posts (Ø 200 mm, height 500 mm) made of flexible special plastic, yellow-black
• 1 x tube (Ø 160 mm, length 1100 mm) made of flexible special plastic, yellow
• Mounting hardware included: M12 x 80 mm concrete screws
Technical specifications:
• Material: Polyethylene
• Color: yellow-black
• Width (mm): 1137
• Height (mm): 500
• Depth/Length (mm): 225
• Net weight (kg): 32.96
• Width without base plate (mm): 1137
• Depth without base plate (mm): 225
• Area of use: Indoor and outdoor
• Installation location: Paved floor
• Installation method: Doweling
• Delivery: Pre-assembled
• Number of mounting holes: 8
• Mounting hardware included: M12 x 80 mm concrete screws

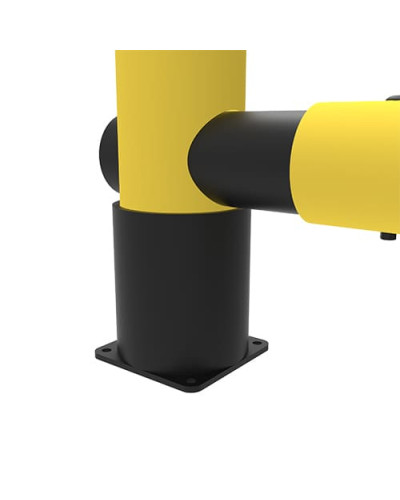

• Width Base plate (mm): 225
• Base plate depth (mm): 225
• Base plate height (mm): 10
• Distance between base plates (mm): 650
• Base plate color: black
• Tested resistance (joules):
o IMPACT ZONE 1: 90 degrees 4,000 J
o IMPACT ZONE 2: 90 degrees 8,000 J; 67.5 degrees 9,400 J; 45 degrees 16,000 J; 22.5 degrees 54,800 J
• Equivalent vehicle weight (kg): 3,560 kg
• Vehicle impact speed (km/h): 5.4 km/h
• Deformation at maximum permissible load (mm): 250
• Chemical resistance: high-ISO/TR 10358
• Operating temperature range: -40 degrees to +50 degrees
• CO2 / m³: 20 kg
• Recyclability: 100%
• Warranty: 5 years
• Test seal / approval: TÜV-GS certified PAS 13: 2017 Chapter 7/7.8

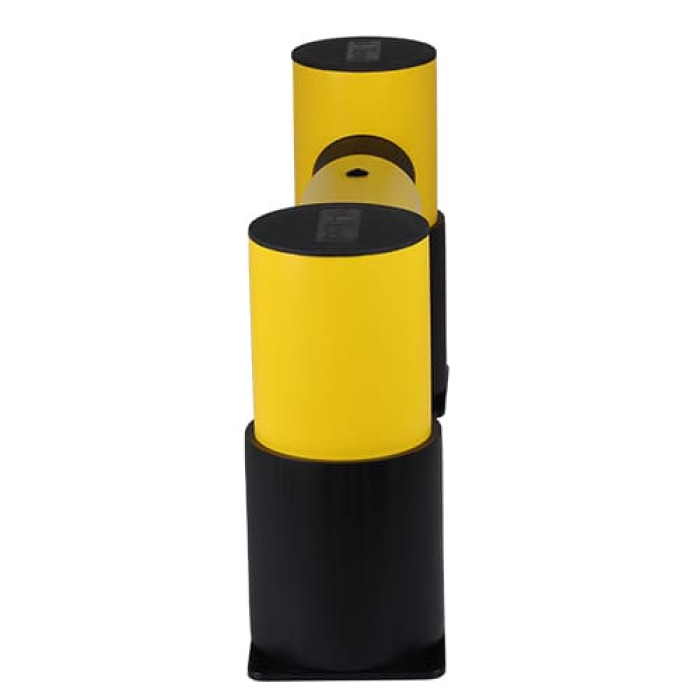

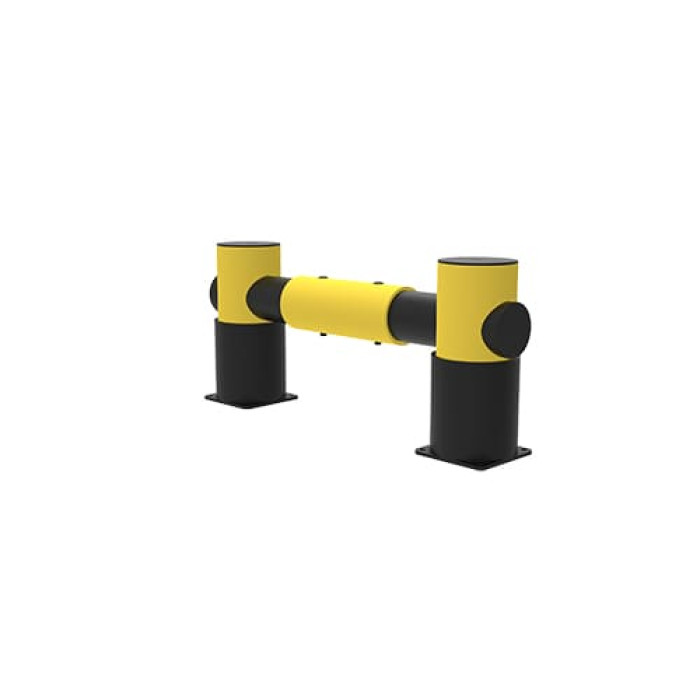

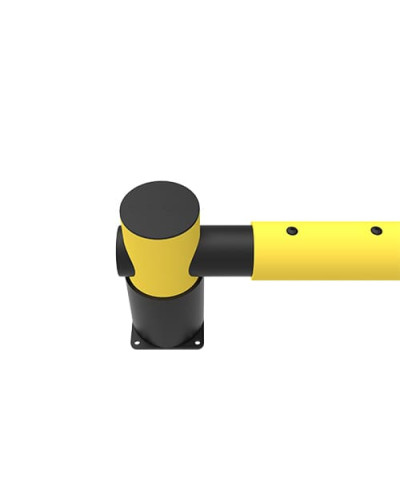

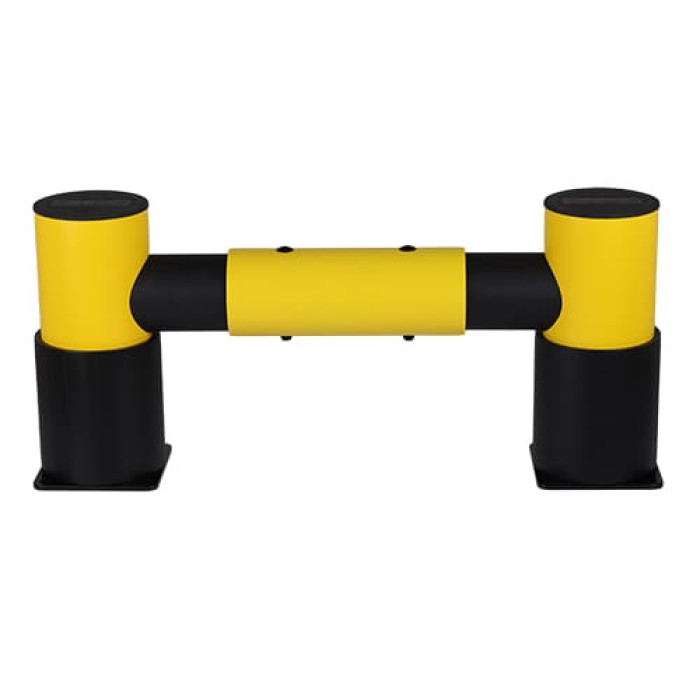

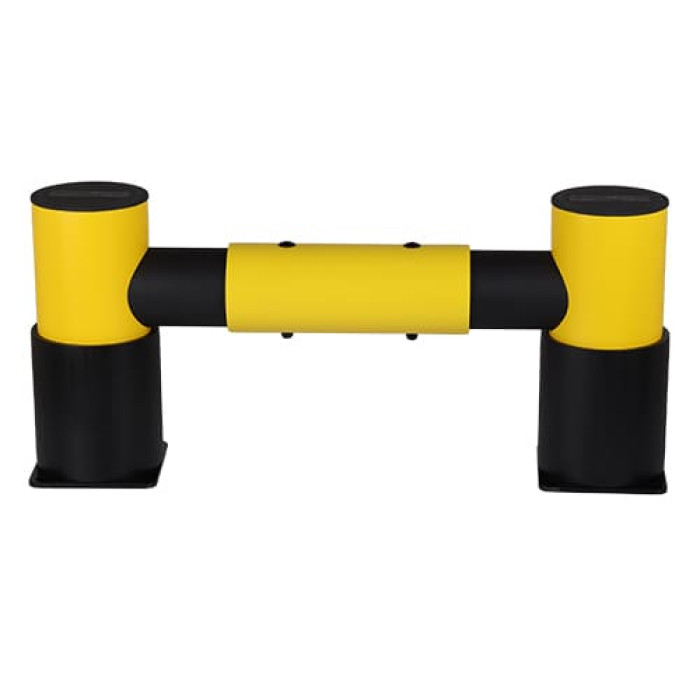

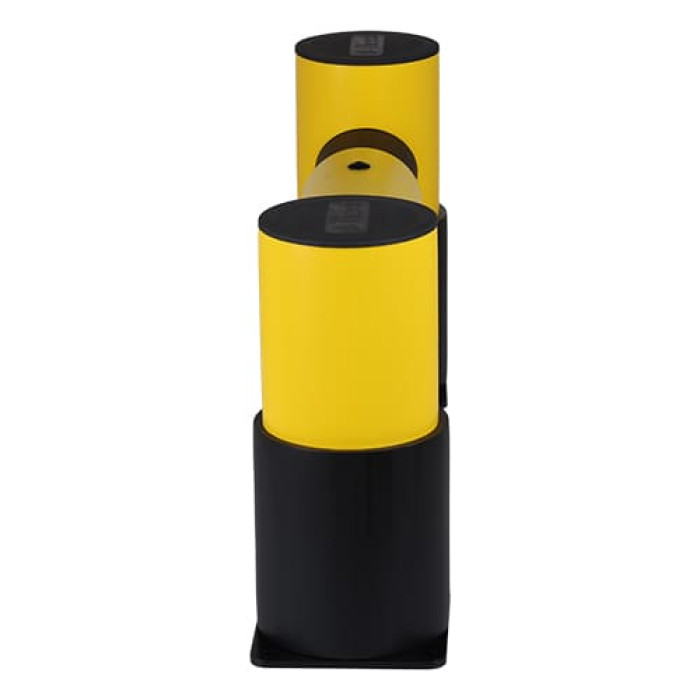

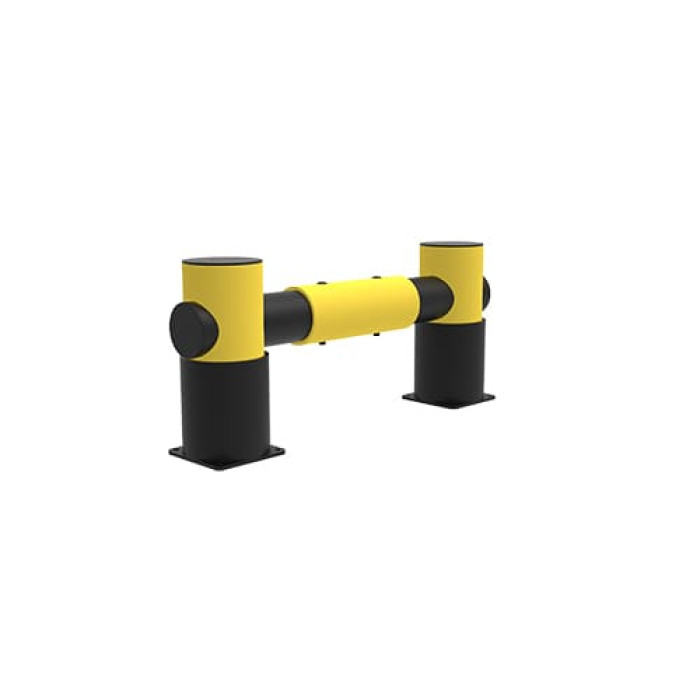

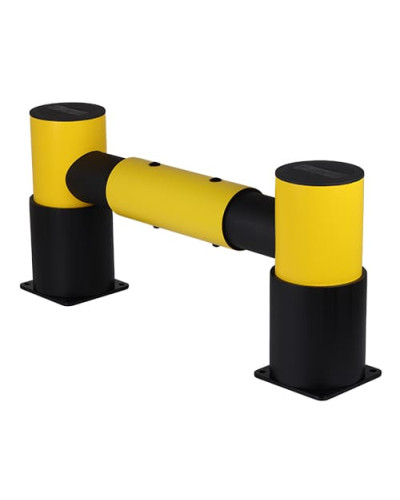

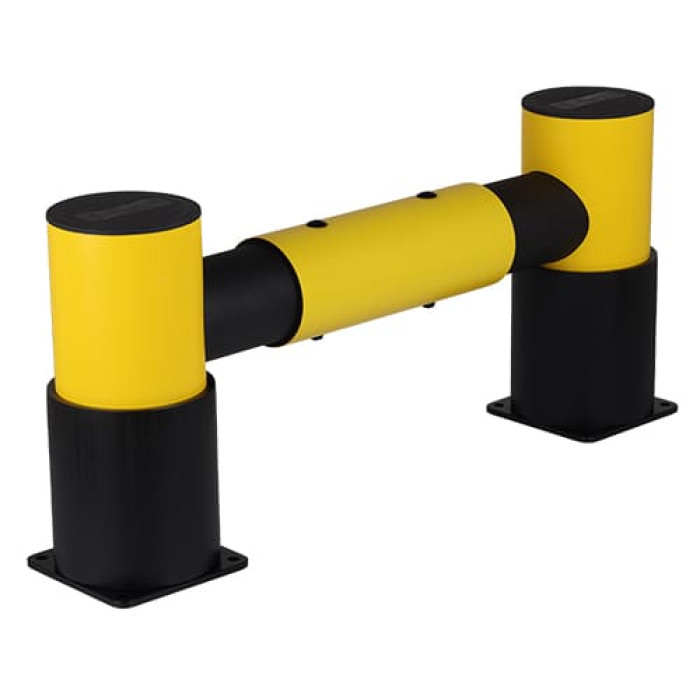

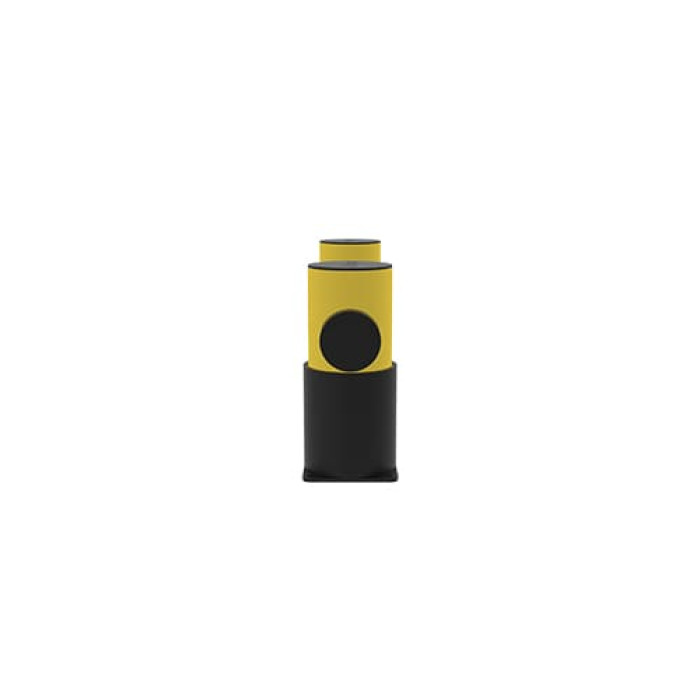

The Golf rack end protector is characterized by its sophisticated modular system. It consists of two sturdy end posts with a diameter of 200 mm and a height of 500 mm, as well as a connecting tube with a diameter of 160 mm and a length of 1100 mm. All components are made of flexible special plastic that optimally absorbs impact forces without transferring the impact energy directly to the rack being protected. This minimizes the risk of damage to your shelves and reduces costly maintenance work to a minimum.
The Golf rack end protector is quick and easy to install on paved floors thanks to the included mounting hardware (M12 x 80 mm concrete screws). Once installed, the rack protector is not in direct contact with the rack, optimizing its protective function.
Who is this flexible rack end protector suitable for?
This robust rack end protector is the ideal solution for:
• Operators of warehouses, logistics centers, and production facilities in Germany and Europe who want to effectively protect the ends of their shelving systems from collision damage.
• Companies in the field of plant security and occupational safety who want to ensure the safety of their employees and avoid costly repairs to rack ends.
• Managing directors and buyers in cities such as Berlin, Hamburg, Munich, Cologne, Frankfurt, Stuttgart, Düsseldorf, Dortmund, Essen, Leipzig, Dresden, Nuremberg, Bremen, Hanover, Duisburg, Bochum, Wuppertal, Bielefeld, Bonn, Mannheim, Karlsruhe, Wiesbaden, Gelsenkirchen, Münster, Augsburg, Chemnitz, Braunschweig, Aachen, Kiel, Magdeburg, Freiburg, Lübeck, Oberhausen, Erfurt, Rostock, Hagen, Kassel, Mainz, Saarbrücken, Hamm, Potsdam, Ludwigshafen, Mülheim, Oldenburg, Leverkusen, Osnabrück, Solingen, Herne, Neuss, Paderborn, Regensburg, Ingolstadt, Heidelberg, Ulm, Göttingen, Recklinghausen, Wolfsburg, Jena, Bottrop, Pforzheim, Offenbach, Fürth, Bremerhaven, Reutlingen, Remscheid, Koblenz, Erlangen, Moers, Bergheim, Trier, Hildesheim, Salzgitter, Siegen, Kaiserslautern, Schwerin, Würzburg and all other locations in the EU that value safe and efficient operations.
The flexible INCAPCORP GOLF rack end protection for plant security and warehouses:

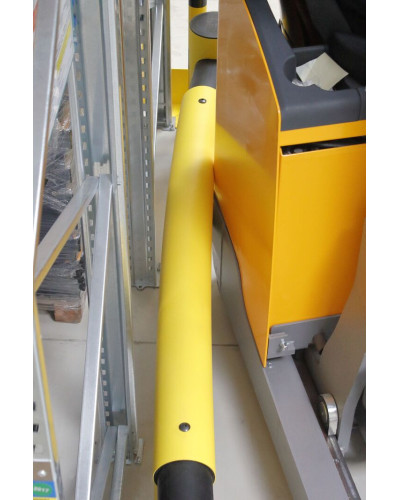

The Golf rack end protection provides essential protection for the ends of rack rails, which are particularly susceptible to collision damage. In plant security, it plays a key role in preventing accidents and ensuring a safe working environment. In warehouses, it protects the structure of the racks, thus preventing expensive repairs and potential collapses.
Areas of application and advantages of the flexible GOLF rack end protection:
The GOLF rack end protection is used in:
• High-bay warehouses
• Pallet racking
• Drive-in racks
• Flow racks
• All indoor and outdoor storage areas
Your benefits at a glance:
• Effective protection: Prevents damage to the ends of shelves caused by collisions.
• Modular design: Easy to adapt and expand.
• No direct contact with the rack: Optimal absorption of impact forces.
• High visibility: The yellow and black color scheme serves as a clear warning.
• Robust and durable: Made of durable, flexible special plastic.
• TÜV-GS certified: Safety tested according to PAS 13: 2017 Chapter 7/7.8.
• Suitable for indoor and outdoor use: Versatile use.
• Chemical-resistant: Suitable for demanding environments.
• Recyclable: Environmentally friendly material (100% polyethylene).
• Easy installation: Quick installation thanks to the included mounting hardware.
• Long service life: 5-year warranty.
• High resistance: Extensively tested for various impact angles and energies.
What is the purpose of the flexible Rack-end barrier Golf single rail rack end protection?
This flexible rack end protection is designed to protect the most vulnerable ends of your racking rails from damage caused by collisions with industrial trucks. It effectively absorbs impact energy, thus preventing structural damage to the racks that could compromise the stability of the entire system. By using the Golf shelf end protection, you reduce the risk of accidents, repair costs, and downtime in your warehouse operations.
Ordering and paying for the flexible rack end protection in the INCAPCORP online shop:
Order your flexible Rack-end barrier Golf single rail rack end protection, 1100 mm, conveniently and securely online at INCAPCORP.DE. Add the product to your shopping cart and follow the simple steps of the ordering process. We offer various secure payment methods.
Important note regarding shipping costs: Please note that due to its bulky dimensions and weight, shipping costs for the bulky height restriction will be charged when ordering this product. The exact shipping costs will be displayed in your shopping cart and during the ordering process.
How to install the flexible Golf rack end protection system for 1 rail:
1. Position the two end posts of the rack end protection system at the desired locations in front of the rack end. Ensure the correct distance (650 mm between the base plates).
2. Mark the drill holes on the paved floor through the holes in the base plates (4 holes per base plate).
3. Drill holes suitable for the included M12 x 80 mm concrete screws at the marked locations.
4. Place the end posts in place and screw them firmly to the floor using the concrete screws.
5. Insert the connecting tube between the two end posts. The system is fully assembled.
The Golf rack end protection system is delivered pre-assembled, so all you need to do is attach the end posts to the floor and insert the connecting tube.
We deliver throughout Germany and Europe:
Whether your company is located in Berlin, Hamburg, Munich, Cologne, Frankfurt, Stuttgart, Düsseldorf, Dortmund, Essen, Leipzig, Dresden, Nuremberg, Bremen, Hanover, Duisburg, Bochum, Wuppertal, Bielefeld, Bonn, Mannheim, Karlsruhe, Wiesbaden, Gelsenkirchen, Münster, Augsburg, Chemnitz, Braunschweig, Aachen, Kiel, Magdeburg, Freiburg, Lübeck, Oberhausen, Erfurt, Rostock, Hagen, Kassel, Mainz, Saarbrücken, Hamm, Potsdam, Ludwigshafen, Mülheim, Oldenburg, Leverkusen, Osnabrück, Solingen, Herne, Neuss, Paderborn, Regensburg, Ingolstadt, Heidelberg, Ulm, Göttingen, Recklinghausen, Wolfsburg, Jena, Bottrop, Pforzheim, Offenbach, Fürth, Bremerhaven, Reutlingen, Remscheid, Koblenz, Erlangen, Moers, Bergheim, Trier, Hildesheim, Salzgitter, Siegen, Kaiserslautern, Schwerin, Würzburg, or any other city in Germany or an EU country: We deliver quickly and reliably directly to you.
Why our customers recommend the flexible INCAPCORP GOLF rack end protector:
Our customers value the flexible INCAPCORP GOLF rack end protector for its:
• Excellent protection: Effectively prevents damage to rack ends.
• Robust and durable construction: Withstands even heavy use.
• Quick and easy assembly: Minimizes installation effort.
• High flexibility: Optimally absorbs impact forces.
• Good visibility: Contributes to accident prevention.
• TÜV-tested safety: Ensures the highest quality standards.
• Long warranty period: 5-year warranty for your investment.
Protect your shelving systems effectively and sustainably with the flexible Rack-end barrier Golf single rail rack end protector!
Note: The INCAPCORP online store reserves the right to unilaterally change the appearance and description of the product. These changes do not affect the consumer properties of the product.
