Description Procity Wartehalle Modulo, Mit Seitenverkleidungen, L 2510 mm
```html

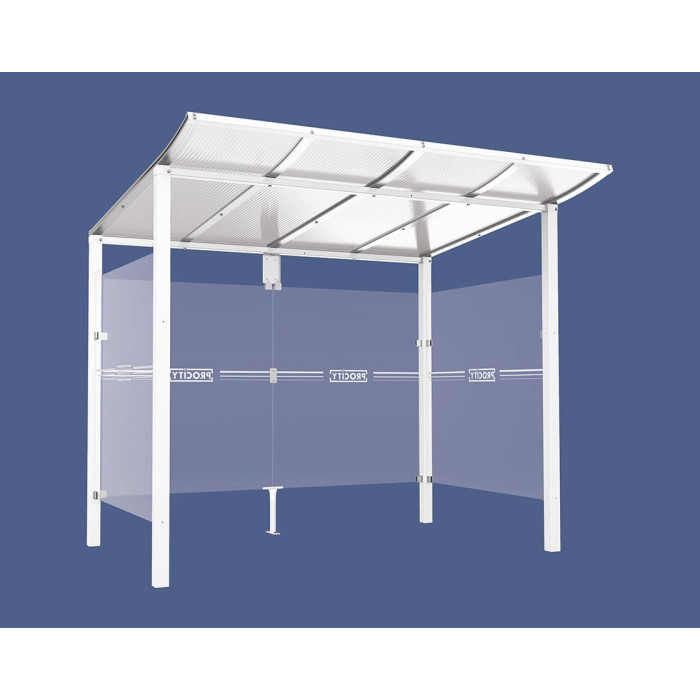

PROCITY Wartehalle Modulo, mit Seitenverkleidungen, L 2510 mm.
The PROCITY Wartehalle Modulo is an ideal solution for creating harmonious urban spaces. With a depth of approximately 2 meters, it offers ample capacity while maintaining a sleek and stylish design. The simple and well-maintained surfaces, along with the gently curved roof, add an elegant touch to any public area. For a cohesive look, consider pairing it with the Modulo Raucherunterstandes and the Modulo Fahrradunterstandes, which are also available.
Choose from two lengths: 2500 mm or 5000 mm. The overall depth is 1985 mm with steel tube posts measuring 70 x 70 mm. The height under the roof ranges from a minimum of 1942 mm to a maximum of 2100 mm. The roof features anodized aluminum profiles, crossbars made of steel tube (40 x 40 mm), and UV-treated Polycarbonate panels (10 mm Alveolar thickness). The sides and rear panels are constructed with Securit glass (5 mm) and are fastened using a brushed aluminum casting clamping system. Additionally, it includes a display case "2000" (1270 x 1160 mm) for information and advertising. This unit is available in various RAL colors, offering both durability and aesthetic appeal. It is designed for installation through concrete embedding and can accommodate a Fahrplanschaukasten (750 x 550 mm) for schedules (not included).
Product Benefits
- Dimensions: Width 2500 x Height 2250 x Depth 2000 mm.
- Finish: Painted according to our color palette.
- Includes 2 side panels for added protection.
- Designed for concrete embedding during installation.
Technical Specifications
- L 2500 mm | 2 Seitenverkl.
- Width: 2510 mm
- Height: 2250 mm
- Depth: 2000 mm
- Frame Material: Steel tube 70x70
- Color: White RAL 9010 (Reinweiß)
- Roof Material: PC-Stegplatte 10 mm (UV)
- Wall Material: Securit glass 5 mm
- Clamping System Material: Cast aluminum
- Sides Panel: Included (2 Seitenverkl.)
- Illuminated Display Case: No
- Built-in Depth: 300 mm
- Assembly Condition: Disassembled
- Mounting: For concrete embedding
- Weight(kg):280
Installation
- Prepare the base for concrete embedding.
- Assemble the frame according to the provided instructions.
- Install the side panels and rear panel using the clamping system.
- Mount the roof using the included materials and hardware.
About the Company
We are proud to be an official distributor of PROCITY products, offering high-quality urban furnishings to enhance public spaces.
Payment Methods
We accept payments via Credit Card, PayPal, Klarna for installment payments, Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
```
Main attributes Procity Wartehalle Modulo, Mit Seitenverkleidungen, L 2510 mm
Shelters
Model Name
Modulo-3.75
Width (W)
2510 mm
Height (H)
2250 mm
Depth (D)
2000 mm
Frame Material
Steel Tube 70x70
Roof Material
PC Sheet 10 mm (UV)
Colour
Pure White
Side Cladding
2 Side Claddings
Display Case
No
Mounting
For Concreting
Delivery Cond.
Disassembled
