Description Set of modular entry aids D 159 mm for trucks, red and white
Set of modular entry aids for trucks D 159 mm, red and white, for bolting on

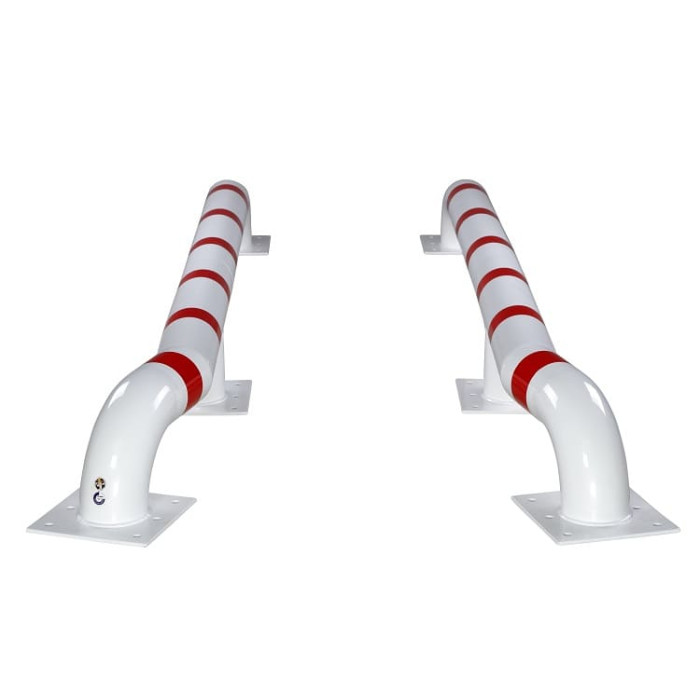

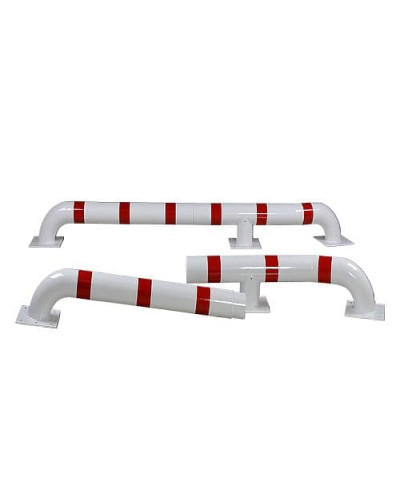

The modular truck entry aid made of steel in red and white is specially designed for bolting on. It is galvanized and powder-coated, which ensures high resistance to weather influences and corrosion. With a width of 3000 mm and a height of 305 mm above the floor, it offers reliable protection and orientation aid for trucks. The entry aid consists of two wings that together form a set. It has a total weight of 150 kg.
Properties and technical data:
• Material: Steel
• Material surface: Galvanized, powder-coated
• Color: White with red warning marking
• Shape: Round
• Width (mm): 3000
• Height above floor (mm): 305
• Diameter (mm): 159
• Material thickness (mm): 4.5
• Number of base plates: 3
• Entry angle: 15 degrees
• Weight: 150 kg
• Assembly: Bolted on (fastening material not included)
• Number of fastening holes: 36
• Delivery: Partially disassembled
• Optional accessories: Fastening set (item no. INC-LKW-EFH-FIX)
• Test seal / approval: TÜV-certified (compliant with DGUV 108-007 / previously BGR 234)
Advantages and applications:
The modular truck entry aid is an ideal solution for freight forwarders, warehouses and logistics centers that want to Want to protect loading ramps and dock seals. The red and white color scheme makes it highly visible and ensures that trucks dock safely. Thanks to its solid construction with a diameter of 159 mm, it is extremely robust and durable.
Advantages at a glance:
• Protection: Prevents damage to buildings and dock seals.
• Visibility: Easily visible thanks to red warning markings.
• Easy to install: Easy installation by bolting on.
• Durable: High-quality material coating to protect against the effects of weather.
• Flexibility: Can be used indoors and outdoors.
Areas of application:
• Warehouses: Optimal docking of trucks at loading ramps.
• Freight forwarders: Protection of the loading zone and ramp structures.
• Logistics centers: Increased safety and efficiency in the loading area.
Why INCAPCORP?
Our customers value the high quality and reliability of the modular truck entry aid from INCAPCORP. The TÜV certification and the compliant design according to DGUV 108-007 (formerly BGR 234) guarantee the highest safety standards.
Ordering and delivery:
Order your set of modular entry aids for trucks easily and conveniently via our online shop INCAPCORP.DE. We deliver quickly and reliably to all cities in Germany. Please note that the shipping costs for bulky goods are charged separately.
Assembly instructions:
The entry aid can be anchored to the ground (not included) or set in concrete. Detailed assembly instructions are included. Optional accessories, such as the fastening set (item no. INC-LKW-EFH-FIX), can also be ordered via our online shop.
Trust in the quality and experience of INCAPCORP for safe and long-lasting solutions in the field of truck entry aids.
