Description Procity Wartehalle Convi - Standard with Side Panels and Back Wall Made of Securit Glass, Length 3107 mm.
PROCITY Wartehalle CONVI - Standard O Seitenverkl, Rückwand aus Securit-Glas, L 3107 mm.

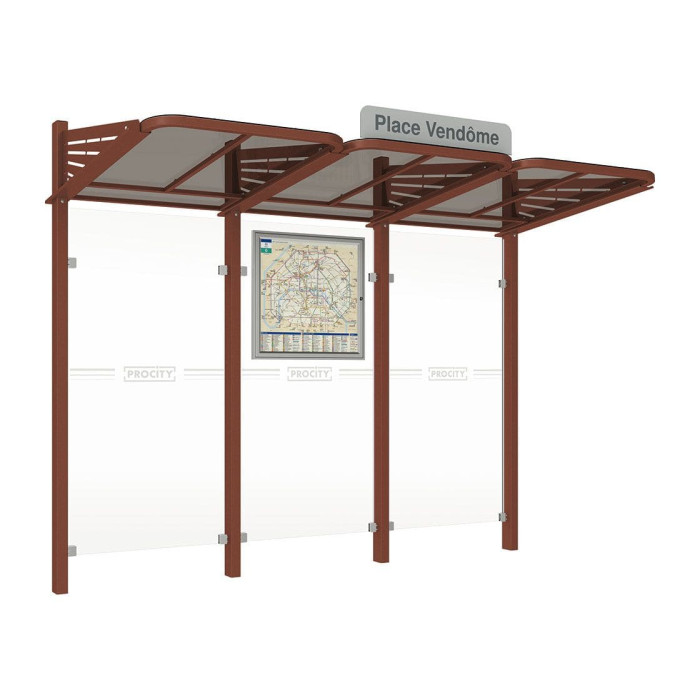

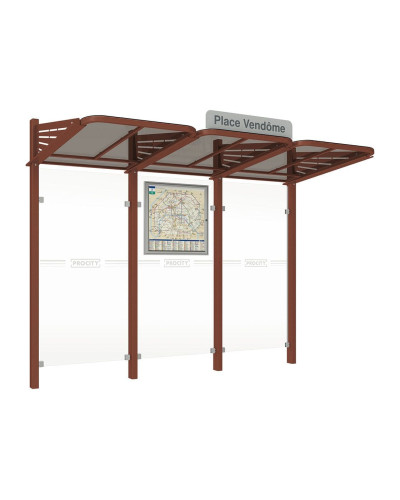

The PROCITY Wartehalle CONVI is an elegant bus waiting shelter that can be adapted to any location due to its modularity. With a length of 3107 mm, this shelter provides a comfortable and stylish waiting area for passengers.
Product Description
The PROCITY Wartehalle CONVI is designed with dimensions of 3000 mm in width, 1500 mm in depth, and 2200 mm in height under the roof. The shelter features a roof made of 6mm UV-resistant PMMA smoked glass, a rain gutter, and steel posts measuring 100 x 60 mm. The sides and back are made of 8mm Securit glass or steel, depending on the model. It also includes a fire galvanized steel schedule board and a lightbox for information and advertising. The shelter is finished with our RAL color options and can be installed by embedding it in concrete.
Product Benefits
The PROCITY Wartehalle CONVI offers a spacious waiting area with dimensions of 3000 x 2505 x 1500 mm, and it is painted according to our color palette. It is designed for easy installation by embedding it in concrete.
Technical Specifications
- Width: 3107 mm
- Height: 2505 mm
- Depth: 1516 mm
- Frame Material: Fire galvanized steel pipe 100x60
- Color: Rust Corten-Effect
- Roof Material: PMMA Smoked Glass 6mm (UV)
- Wall Material: Securit Glass 8mm with Schedule Board
- Sidewall Cladding: Without
- Lightbox: No
- Display Case: No
- Minimum Installation Depth: 450 mm
- Assembly State: Disassembled
- Fastening: For embedding in concrete
- Weight (kg): 310
- Accessories: INC-209159, INC-529367, INC-509040, INC-509045
Installation
- Prepare the base by digging a hole for the shelter's frame.
- Assemble the frame components using the provided instructions.
- Install the wall panels and schedule board according to the assembly manual.
- Mount the roof structure securely on top of the frame.
About the Company
INCAPCORP is an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers. Get a 3% discount for bank transfer prepayment.
Delivery & Shipping
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Wartehalle Convi - Standard with Side Panels and Back Wall Made of Securit Glass, Length 3107 mm.
Shelters
Model Name
Convi-3.75
Width (W)
3107 mm
Height (H)
2505 mm
Depth (D)
1516 mm
Frame Material
Steel Tube 100x60 Galv.
Roof Material
PMMA Smoked Glass 6 mm (UV)
Colour
Corten-Effect Rust
Side Cladding
None
Display Case
No
Mounting
For Concreting
Delivery Cond.
Disassembled
