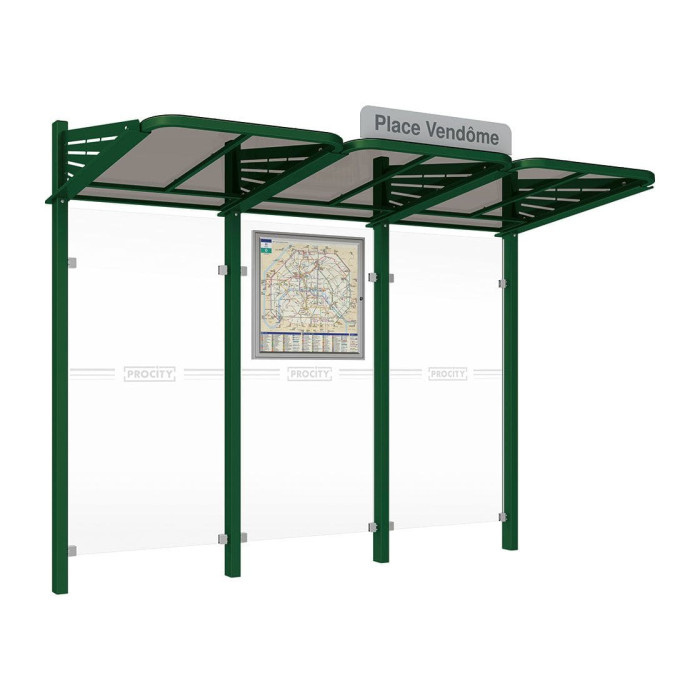

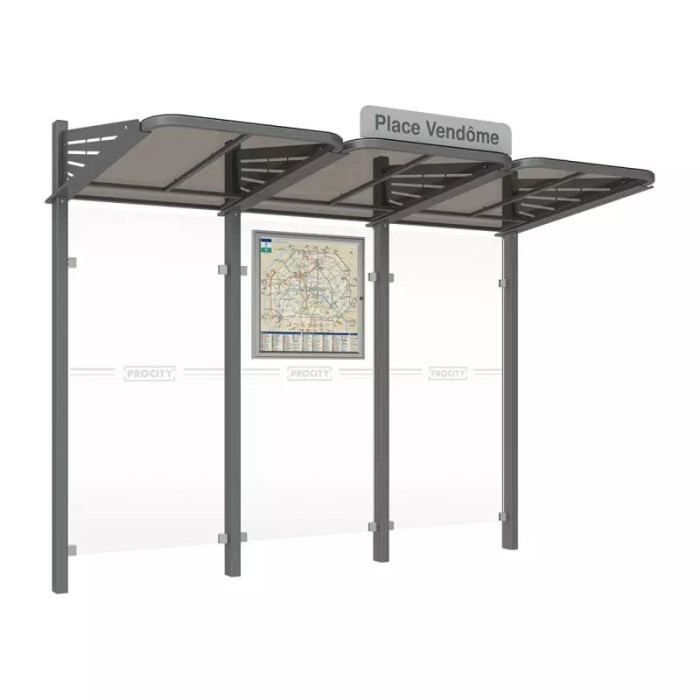

Description Procity Wartehalle Convi - Standard with Side Panels and Back Wall Made of Securit Glass, Length 3107 mm.

PROCITY Wartehalle CONVI - Standard O Seitenverkl, Rückwand aus Securit-Glas, L 3107 mm

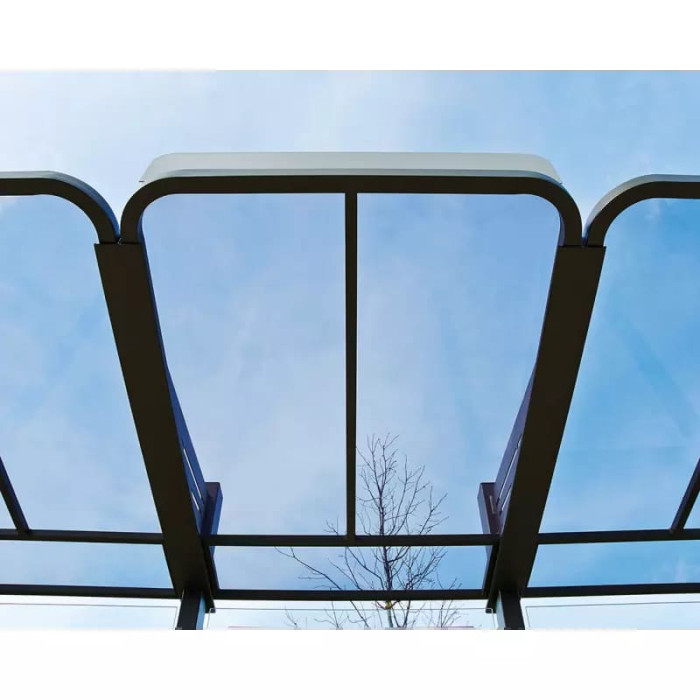

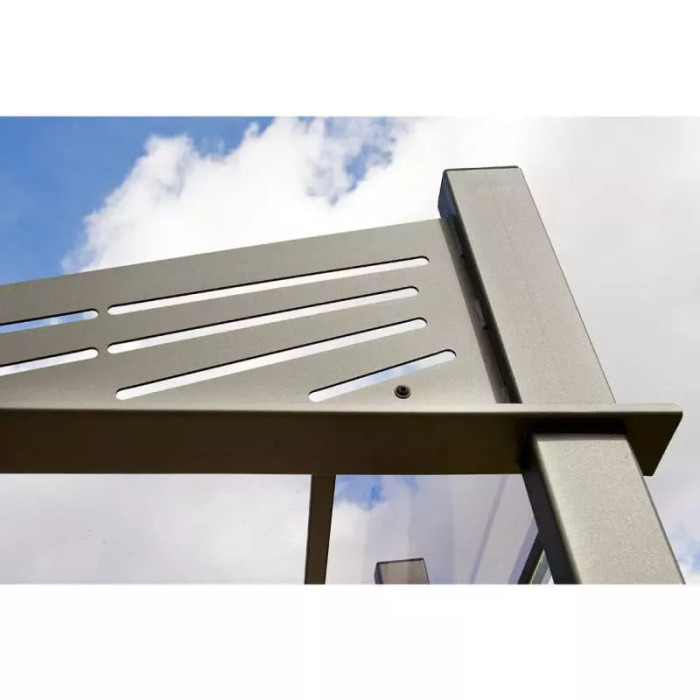

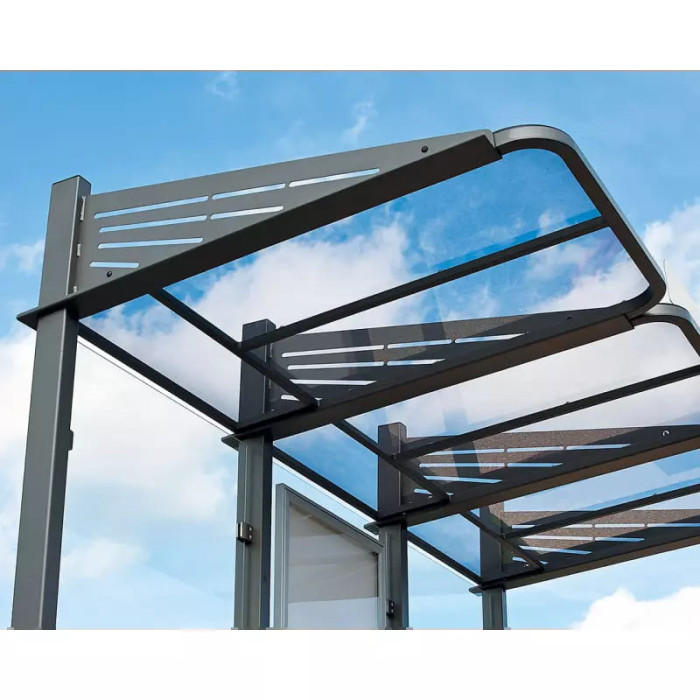

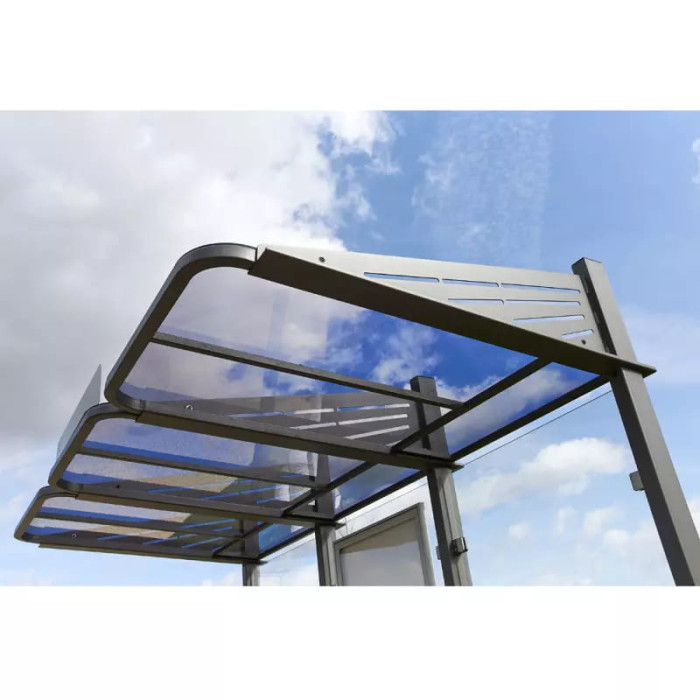

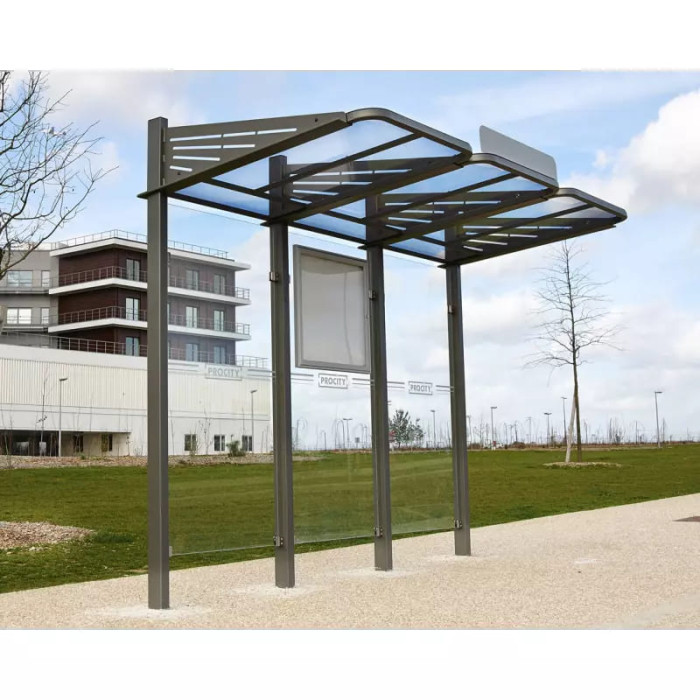

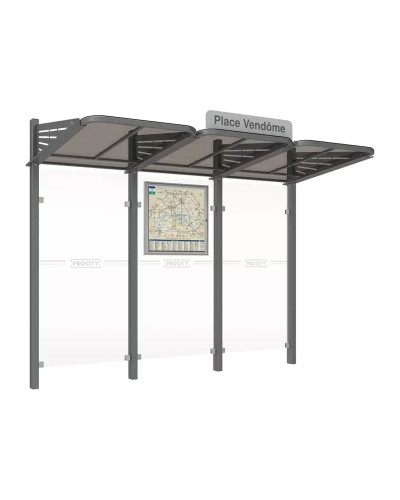

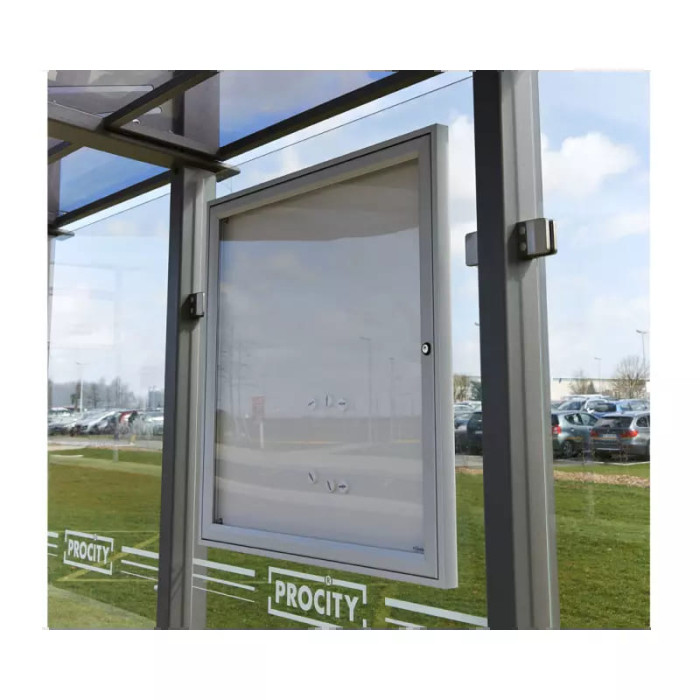

The PROCITY Wartehalle CONVI is an elegant bus waiting shelter that can be adapted to any location due to its modularity. It has a length of 3000 mm and a total depth of 1500 mm. The shelter can be extended with an intermediate module of 1000 mm. The square posts are made of steel tube measuring 100 x 60 mm. The height under the roof is 2200 mm. The roof is made of 6 mm UV-resistant PMMA smoked glass with a steel tube structure and rain gutter. The sides and back are covered with 8 mm thick Securit glass or steel, depending on the model. The shelter also includes a stop sign, a timetable display case, and options for information and advertising displays. It is available in various RAL colors for customization and is designed for installation by embedding in concrete.

The PROCITY Wartehalle CONVI offers the following benefits: Dimensions: Width 3000 x Height 2505 x Depth 1500 mm, Finish: Painted according to our color palette, Installation: Designed for embedding in concrete.

Technical Specifications

• Width: 3107 mm
• Height: 2505 mm
• Depth: 1516 mm
• Frame Material: Galvanized steel tube 100x60

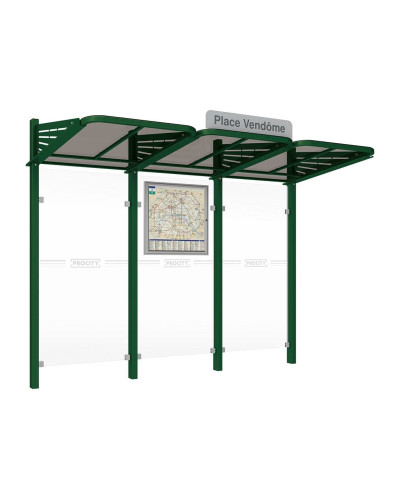

• Color: Green RAL 6005 (Moosgrün)
• Roof Material: 6mm UV-resistant PMMA smoked glass

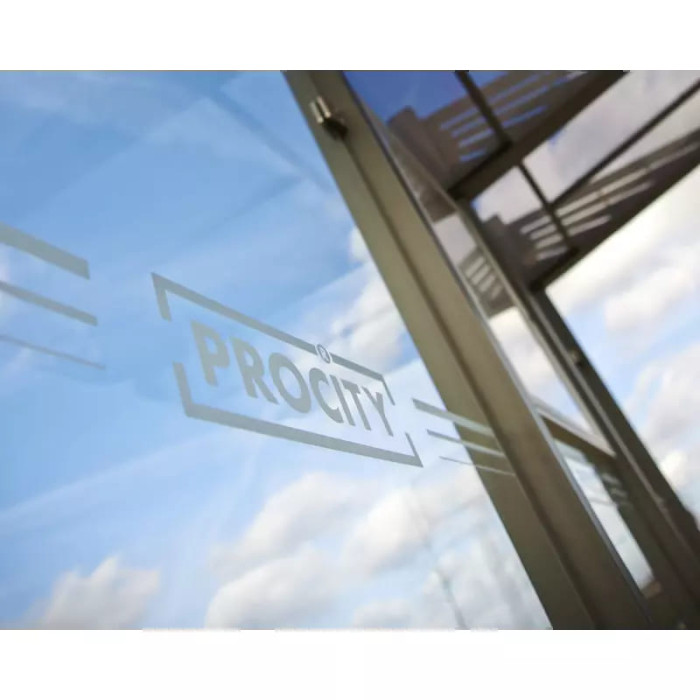

• Wall Material: 8mm Securit glass with sign
• Sidewall Cladding: None
• Lightbox: No
• Display Case: No
• Installation Depth: min. 450 mm
• Mounting Condition: Disassembled
• Fastening: For embedding in concrete
• Weight(kg): 310
• Accessories: INC-209159, INC-529367, INC-509040, INC-509045

Installation

1. Prepare the base for embedding in concrete according to the specified dimensions.
2. Assemble the frame components using the provided instructions and hardware.
3. Install the wall panels and signage according to the assembly guide.
4. Mount the roof structure securely onto the frame.
