Description Procity Waiting Hall Square Tube, without Side Panels, L 5000 mm.
PROCITY WarteHalle Vierkantrohr, ohne Seitenverkleidungen, L 5000 mm

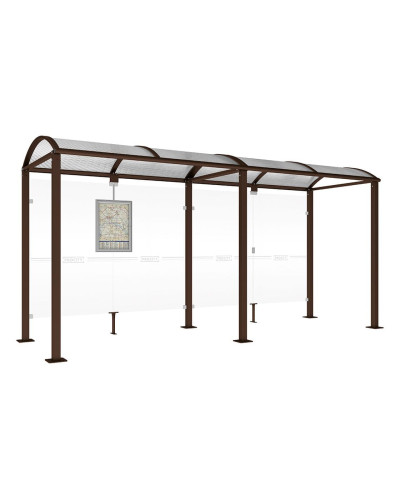

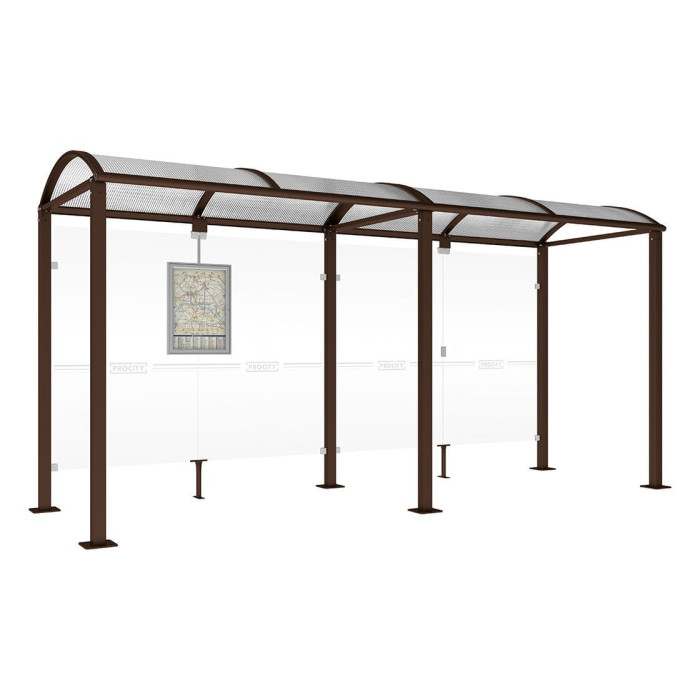

The PROCITY WarteHalle Vierkantrohr is a high-quality bus waiting shelter with a simple design that harmoniously fits into both rural and urban environments.
Product Description
This waiting shelter comes in two lengths: 2500 or 5000 mm, with a total depth of 1600 mm. The square posts are made of steel tube measuring 80 x 80 mm and are fixed on base plates. The height under the roof is 2500 mm. The roof is made of arched polycarbonate panels, 6 mm thick with UV protection. The roof structure consists of aluminum tube struts measuring 40 x 60 mm and aluminum profile gutters. It also features curved aluminum profile brackets. The side and rear panels are made of Securit glass, 8 mm thick, and are secured using a brushed aluminum clamping system. It includes a timetable display case measuring 750 x 550 mm (4 A4) made of anodized aluminum (Art. No. 505045). For information and advertising purposes, it can be equipped with a lightbox (display area size: 1710 x 1160 mm) or a "2000" display case (display area size: 1750 x 1200 mm). It is hot-dip galvanized and coated in our range of RAL colors. Installation is done on base plates.
Product Benefits
The PROCITY WarteHalle Vierkantrohr measures 5000mm in width, 2560mm in height, and 1600mm in depth. It is painted according to our color palette and is suitable for embedding during installation.
Technical Specifications
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Hot-dip galvanized square tube 80 x 80
- Color: Brown RAL 8017 (Schokoladenbraun)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Side Panel: Without
- Lightbox: No
- Display Case: No
- Installation Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 355
- Accessories: INC-209147, INC-509041
Installation
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall/panel using the clamping system.
- Mount the roof onto the frame structure.
About the Company
We are proud to be an official distributor of PROCITY products.
Payment Methods
We accept Credit Card, PayPal, Klarna (installments), and Invoice for approved business customers. Enjoy a 3% discount for bank transfer prepayment.
Delivery & Shipping
We offer delivery to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, without Side Panels, L 5000 mm.
Shelters
Model Name
Malta-5
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Chocolate Brown
Side Cladding
None
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
