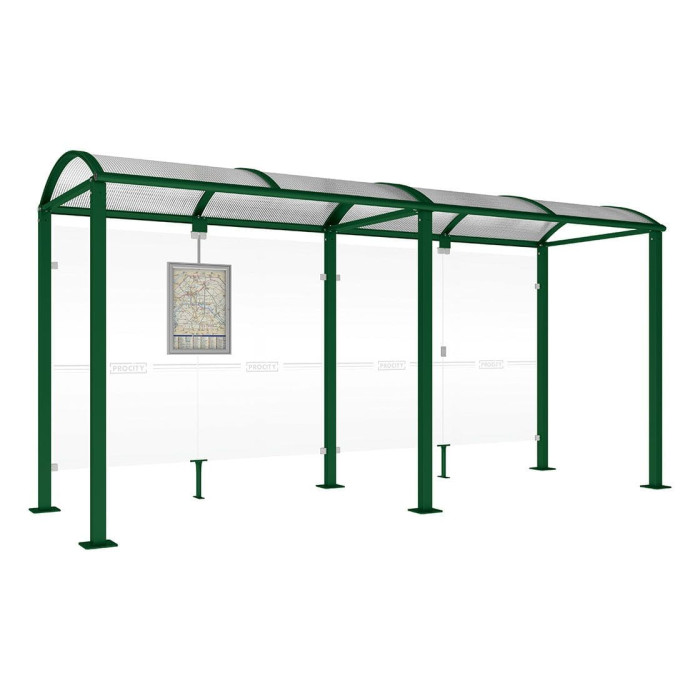

Description Procity Waiting Hall Square Tube, without Side Panels, L 5000 mm.
PROCITY WarteHalle Vierkantrohr, ohne Seitenverkleidungen, L 5000 mm
A high-quality bus waiting shelter with a simple design that harmoniously fits into rural and urban environments. It comes in two lengths: 2500 mm or 5000 mm, with a total depth of 1600 mm. The shelter features square posts made of 80 x 80 mm steel tubes on base plates, providing a height under the roof of 2500 mm. The roof is made of arched 6 mm polycarbonate panels with UV protection, supported by aluminum tube struts and gutters. The shelter also includes curved aluminum profile brackets and 8 mm Securit glass for the side and rear panels, secured by a brushed aluminum casting clamping system. Additionally, it offers a timetable display case (Art. No. 505045) and advertising options such as a lightbox or "2000" display case. The shelter is available in various RAL colors, is fire-galvanized, and can be installed on base plates.
Dimensions: Width: 5000 mm, Height: 2560 mm, Depth: 1600 mm
Construction: Painted according to our color palette
Installation: For embedding
Technical Specifications:
- Width: 5000 mm
- Height: 2560 mm
- Depth: 1666 mm
- Frame Material: Fire-galvanized square tube 80 x 80
- Color: Green RAL 6005 (Moosgrün)
- Roof Material: Arched PC 6 mm (UV)
- Wall Material: Securit glass 8 mm with sign
- Side Panel: None
- Lightbox: No
- Display Case: No
- Embedding Depth: -
- Assembly Condition: Disassembled
- Mounting: On base plates
- Weight(kg): 355
- Accessories: INC-209147, INC-509041
Installation:
- Prepare the base for installation.
- Assemble the frame according to the provided instructions.
- Install the wall panels and signage.
- Mount the roof structure securely in place.
We are an official distributor of PROCITY products.
Payment Methods:
We accept Credit Card, PayPal, Klarna (installments), Invoice for approved business customers, and offer a 3% discount for bank transfer prepayment.
Delivery & Shipping:
We deliver to Germany, Austria, Switzerland, Liechtenstein, Netherlands, Denmark, Belgium, France, England, and other EU countries.
Main attributes Procity Waiting Hall Square Tube, without Side Panels, L 5000 mm.
Shelters
Model Name
Malta-5
Width (W)
5000 mm
Height (H)
2560 mm
Depth (D)
1666 mm
Frame Material
Square Tube 80x80 Galv.
Roof Material
Curved PC 6 mm (UV)
Colour
Moss Green
Side Cladding
None
Display Case
No
Mounting
On Base Plates
Delivery Cond.
Disassembled
